50GETO (2003)
ELECTRICAL

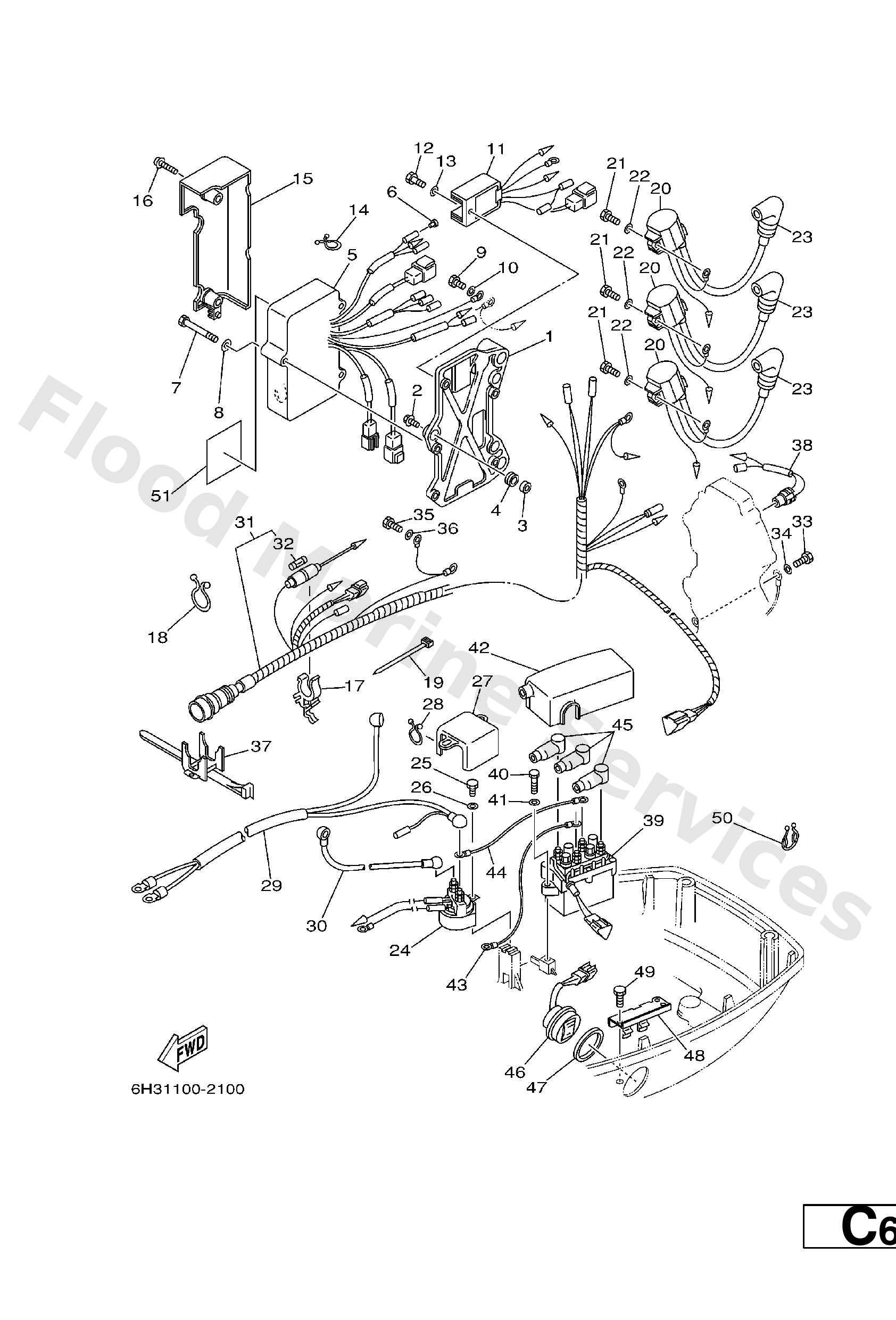

Diagram: ELECTRICAL
Parts List
Reference
Description
Price
1
6H3−85542−11−94
Bracket
Loading…
↗
2
90105−06M14
Bolt (6e0)
Loading…
↗
3
90387−06M43
Coller (6e9)
Loading…
↗
4
90480−13M54
Grommet(6h2)
Loading…
↗
5
6H2−85540−12
C.d.i. unit assembly
Loading…
↗
6
703−82119−00
Cover, lead wire
Loading…
↗
7
97095−06045
Bolt, hexagon
Loading…
↗
8
92995−06600
Washer, plain (646)
Loading…
↗
9
97013−06012
Bolt(gh1)
Loading…
↗
10
92903−06600
Washer, plain (646)
Loading…
↗
11
6H2−81960−10
Rectifier & regulator assembly
Loading…
↗
12
97095−06016
Bolt, hexagon deep recess
Loading…
↗
14
90464−05M16
Clamp(6j8)
Loading…
↗
15
6H3−81916−10
Cover, terminal
Loading…
↗
16
90159−06M01
Screw, with washer (6f5)
Loading…
↗
17
6G5−82152−00
Holder, fuse
Loading…
↗
18
90464−23M22
Clamp
Loading…
↗
19
90465−13M11
Clamp (6e5)
Loading…
↗
20
697−85570−00
Ignition coil assembly
Loading…
↗
21
97013−06020
Bolt(62y)
Loading…
↗
23
6G1−82370−21
Plug cap assembly
Loading…
↗
24
688−81950−10
Relay assembly
Loading…
↗
25
97013−06016
Bolt, hexagon deep recess
Loading…
↗
27
6H3−82164−00
Case 2
Loading…
↗
28
90464−15M11
Clamp (3y2)
Loading…
↗
29
6H3−82105−01
Battery cable
Loading…
↗
30
6H3−82117−00
Wire, lead
Loading…
↗
31
6H2−82590−13
Wire harness assembly (10p)
Loading…
↗
32
663−82151−00
Fuse
Loading…
↗
37
688−82594−00
Clamp
Loading…
↗
38
688−82560−10
Thermo switch assembly
Loading…
↗
39
61A−81950−00
Relay assembly
Loading…
↗
40
97095−06025
Bolt
Loading…
↗
42
6H3−82154−11
Case
Loading…
↗
43
6H2−81949−11
Wire, lead
Loading…
↗
44
6H2−81949−01
Wire, lead
Loading…
↗
45
682−82119−01
Cover, lead wire
Loading…
↗
46
6H1−82563−10
Trim & tilt switch assembly
Loading…
↗
47
6E5−82587−00
Gasket
Loading…
↗
48
6E5−83614−01
Bracket
Loading…
↗
50
90464−18M14
Clamp(6h1)
Loading…
↗
51
6R5−85711−60
Mark, caution
Loading…
↗
