5CMH (2008)
ELECTRICAL

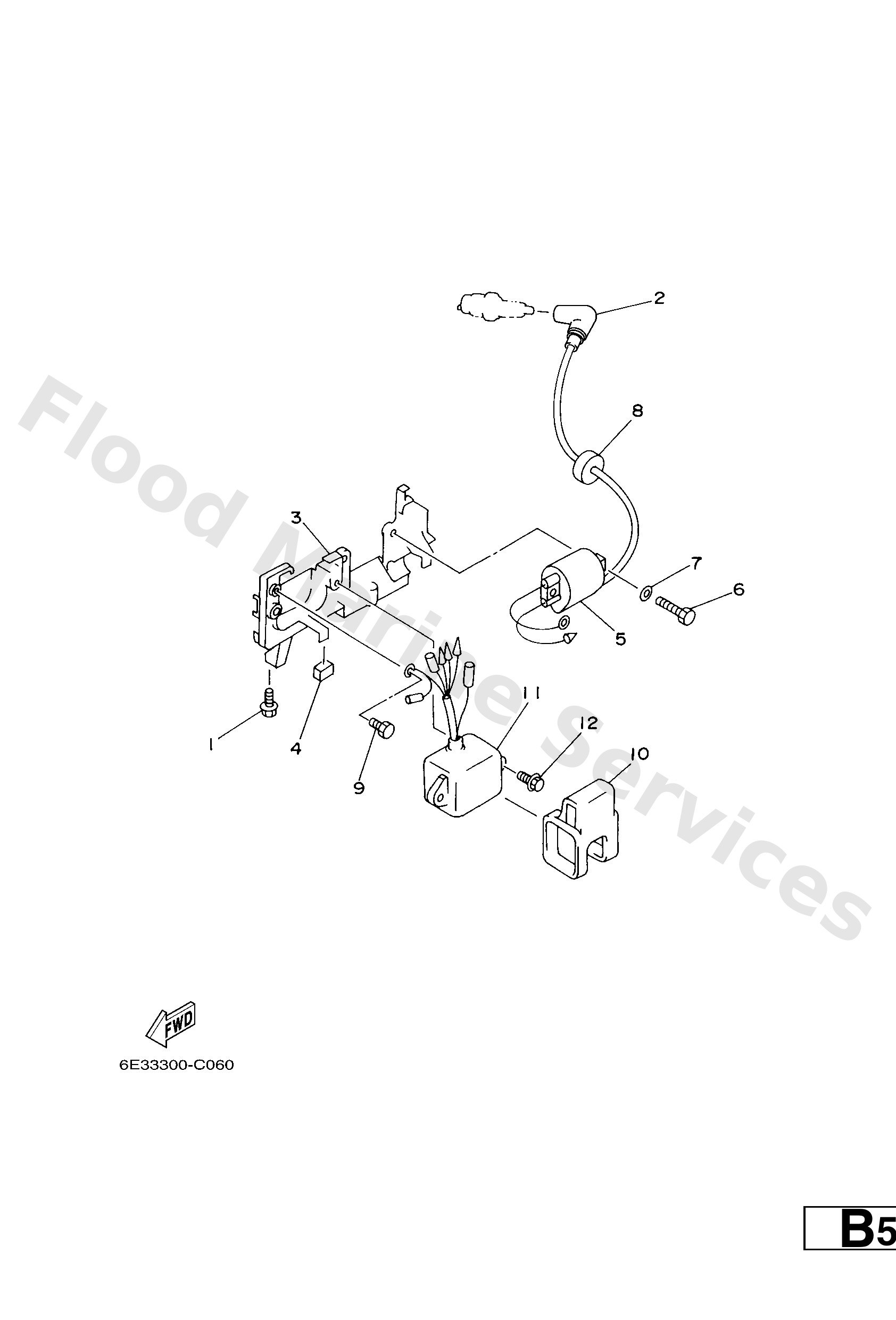

Diagram: ELECTRICAL
Parts List
Reference
Description
Price
1
9589506016
Bolt, flange deep recess
Loading…
↗
2
6E38237021
Plug cap assembly
Loading…
↗
3
6E0823160194
Bracket, ignition coil
Loading…
↗
4
6E08231700
Damper
Loading…
↗
5
6E08557000
Ignition coil assembly
Loading…
↗
6
9709506016
Bolt, hexagon deep recess
Loading…
↗
7
9299506600
Washer, plain (646)
Loading…
↗
8
9048025161
Grommet(656)
Loading…
↗
9
9708006010
Bolt
Loading…
↗
10
6E08554800
Holder, wire harness
Loading…
↗
11
6E08554071
C.d.i. unit assembly
Loading…
↗
12
9589506020
Bolt, flange(jk3)
Loading…
↗
