Yamaha Outboard Parts - ELECTRICAL - 5CMH (2015) | Flood Marine

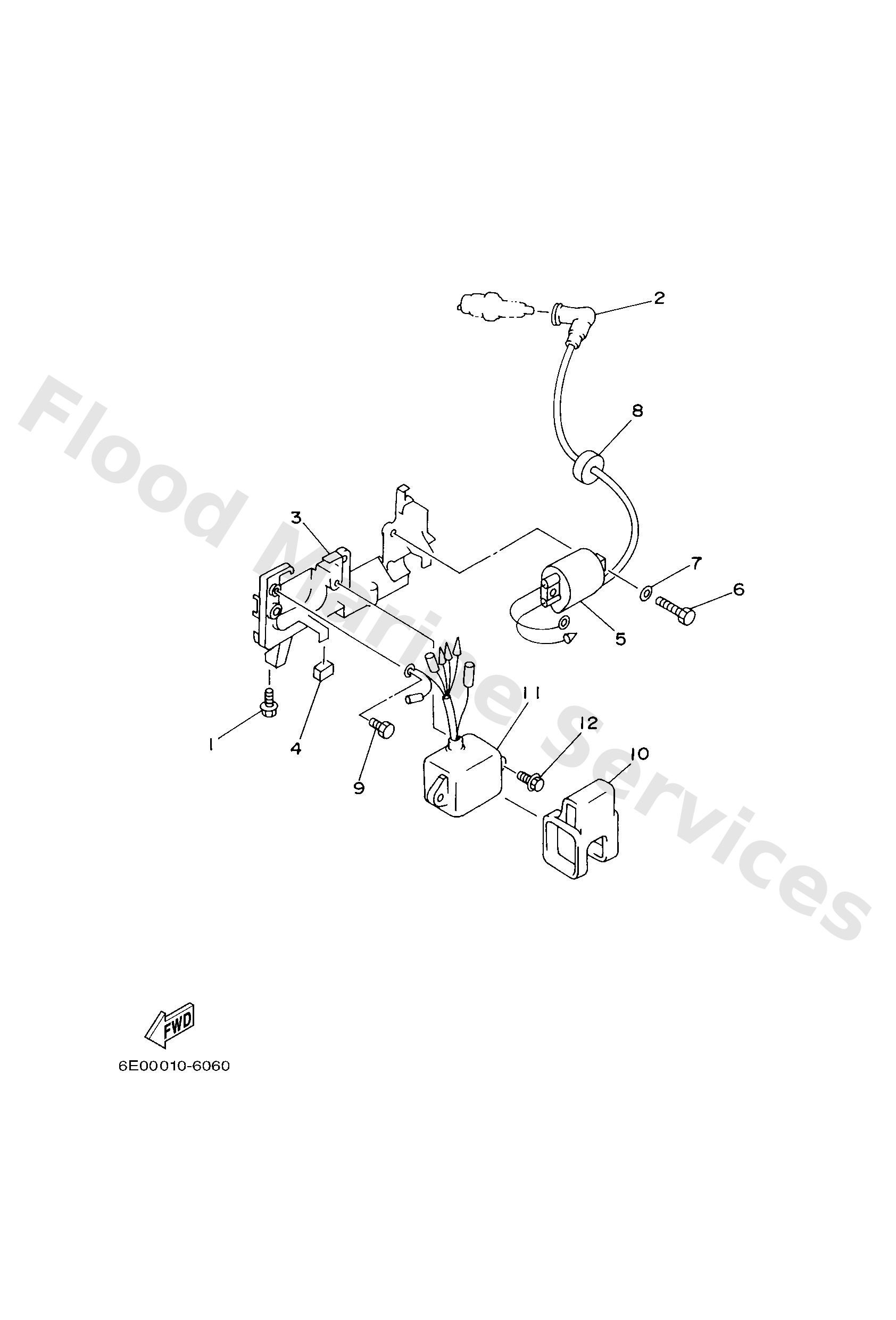

Diagram: ELECTRICAL

Diagram

Parts List

Reference
Description
Price


1
9589506016
Bolt, flange deep recess
Loading…

↗
2
6638237001
Plug cap assembly
Loading…

↗
2
6E38237021
Plug cap assembly
Loading…

↗
3
6E08231601
Bracket, ignition coil
Loading…

↗
4
6E08231700
Damper
Loading…

↗
5
6E08557000
Ignition coil assembly
Loading…

↗
6
9709506016
Bolt, hexagon deep recess
Loading…

↗
7
9299506600
Washer, plain (646)
Loading…

↗
8
9048025161
Grommet(656)
Loading…

↗
9
9708006010
Bolt
Loading…

↗
10
6E08554800
Holder, wire harness
Loading…

↗
11
6E08554071
C.d.i. unit assembly
Loading…

↗
12
9589506020
Bolt, flange(jk3)
Loading…

↗
