Yamaha Outboard Parts - ELECTRICAL - 5MHB (2003) | Flood Marine

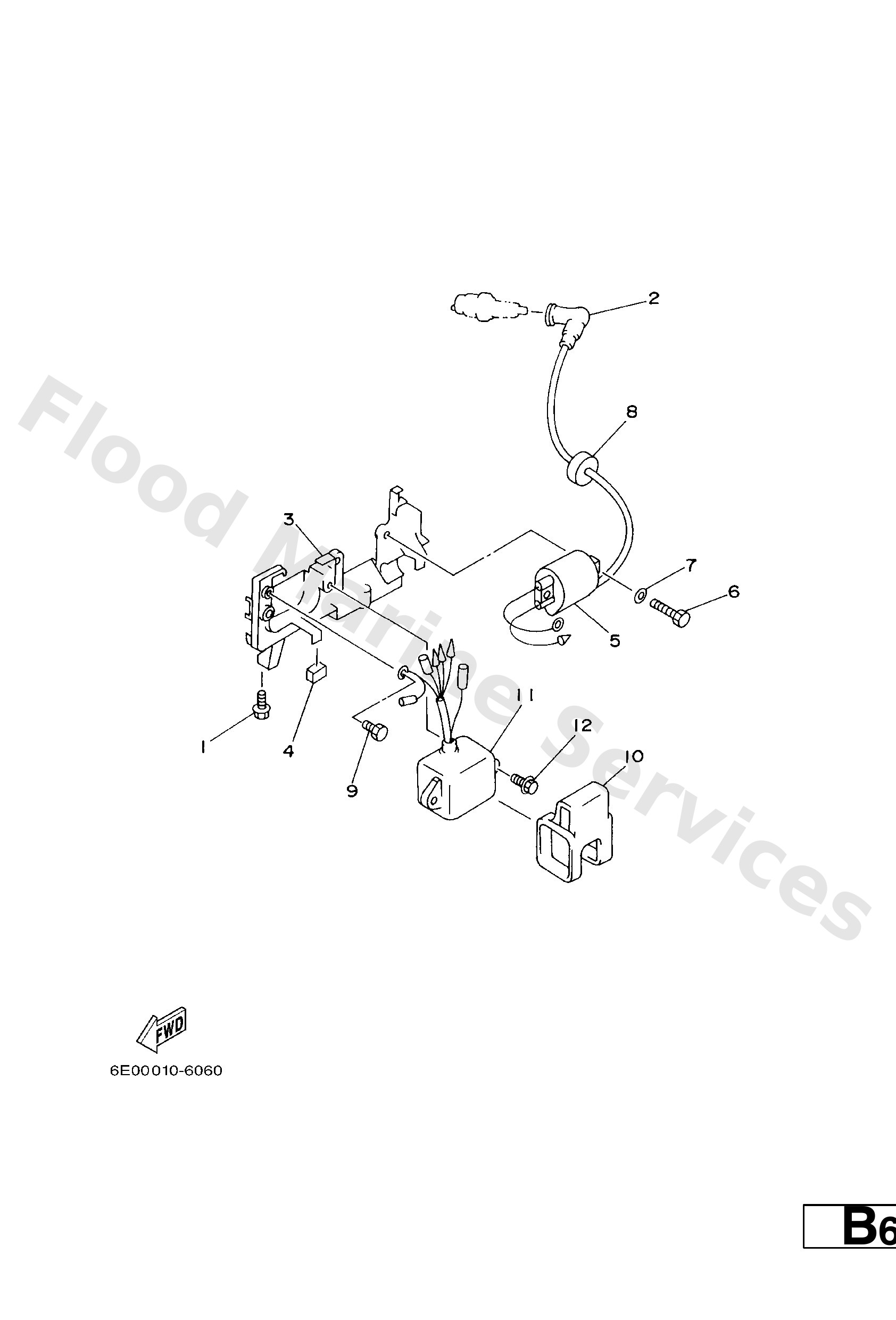

Diagram: ELECTRICAL

Diagram

Parts List

Reference
Description
Price


1
95895−06016
Bolt, flange deep recess
Loading…

↗
2
6G1−82370−21 FOR OCEANIA
Plug cap assembly
Loading…

↗
2
6E3−82370−21 FOR OCEANIA
Plug cap assembly
Loading…

↗
2
663−82370−01 FOR USA
Plug cap assembly
Loading…

↗
3
6E0−82316−01−94
Bracket, ignition coil
Loading…

↗
4
6E0−82317−00
Damper
Loading…

↗
5
6E0−85570−00
Ignition coil assembly
Loading…

↗
6
97095−06016
Bolt, hexagon deep recess
Loading…

↗
7
92995−06600
Washer, plain (646)
Loading…

↗
8
90480−25161
Grommet(656)
Loading…

↗
9
97080−06010
Bolt
Loading…

↗
10
6E0−85548−00
Holder, wire harness
Loading…

↗
11
6E0−85540−71
C.d.i. unit assembly
Loading…

↗
12
95895−06020
Bolt, flange(jk3)
Loading…

↗
