70BETO (2015)
ELECTRICAL

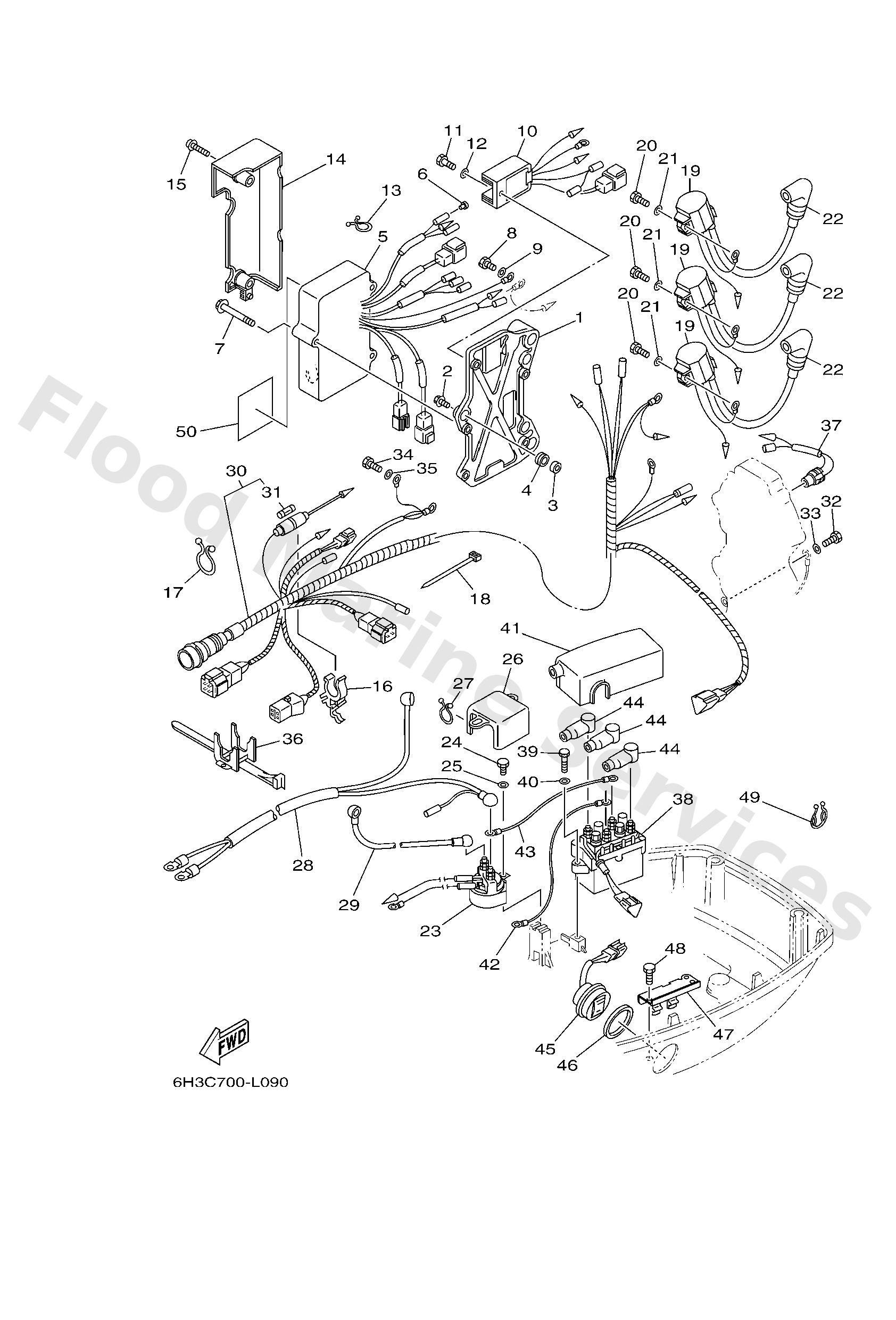

Diagram: ELECTRICAL
Parts List
Reference
Description
Price
1
6H38554211
Bracket
Loading…
↗
2
9010506M14
Bolt (6e0)
Loading…
↗
3
9038706M43
Coller (6e9)
Loading…
↗
4
9048013M54
Grommet(6h2)
Loading…
↗
5
6H28554013
C.d.i. unit assembly
Loading…
↗
6
7038211900
Cover, lead wire
Loading…
↗
7
9759506545
Bolt, hexagon w/w deep recess
Loading…
↗
8
9701306012
Bolt(gh1)
Loading…
↗
9
9290306600
Washer, plain (646)
Loading…
↗
10
6H28196010
Rectifier & regulator assembly
Loading…
↗
11
9709506016
Bolt, hexagon deep recess
Loading…
↗
12
9299506600
Washer, plain (646)
Loading…
↗
13
9046405M16
Clamp(6j8)
Loading…
↗
14
6H38191610
Cover, terminal
Loading…
↗
15
9015906M01
Screw, with washer (6f5)
Loading…
↗
16
6G58215200
Holder, fuse
Loading…
↗
17
9046423M22
Clamp
Loading…
↗
18
9046513M11
Clamp (6e5)
Loading…
↗
19
6978557000
Ignition coil assembly
Loading…
↗
20
9701306020
Bolt(62y)
Loading…
↗
22
6G18237021
Plug cap assembly
Loading…
↗
23
6888195010
Relay assembly
Loading…
↗
24
9701306016
Bolt, hexagon deep recess
Loading…
↗
26
6H38216400
Case 2
Loading…
↗
27
9046415M11
Clamp (3y2)
Loading…
↗
28
6H38210502
Battery cable
Loading…
↗
29
6H38211700
Wire, lead
Loading…
↗
30
6H28259080
Wire harness assembly
Loading…
↗
31
6638215100
Fuse
Loading…
↗
36
6888259400
Clamp
Loading…
↗
37
6888256010
Thermo switch assembly
Loading…
↗
38
61A8195000
Relay assembly
Loading…
↗
39
9709506025
Bolt
Loading…
↗
41
6H38215411
Case
Loading…
↗
42
6H28194911
Wire, lead
Loading…
↗
43
6H28194901
Wire, lead
Loading…
↗
44
6828211901
Cover, lead wire
Loading…
↗
45
6H18256311
Trim & tilt switch assembly
Loading…
↗
46
6E58258700
Gasket
Loading…
↗
47
6E58361401
Bracket
Loading…
↗
49
9046418M14
Clamp(6h1)
Loading…
↗
50
6R58571160
Mark, caution
Loading…
↗
