75CETO (2002)
ELECTRICAL

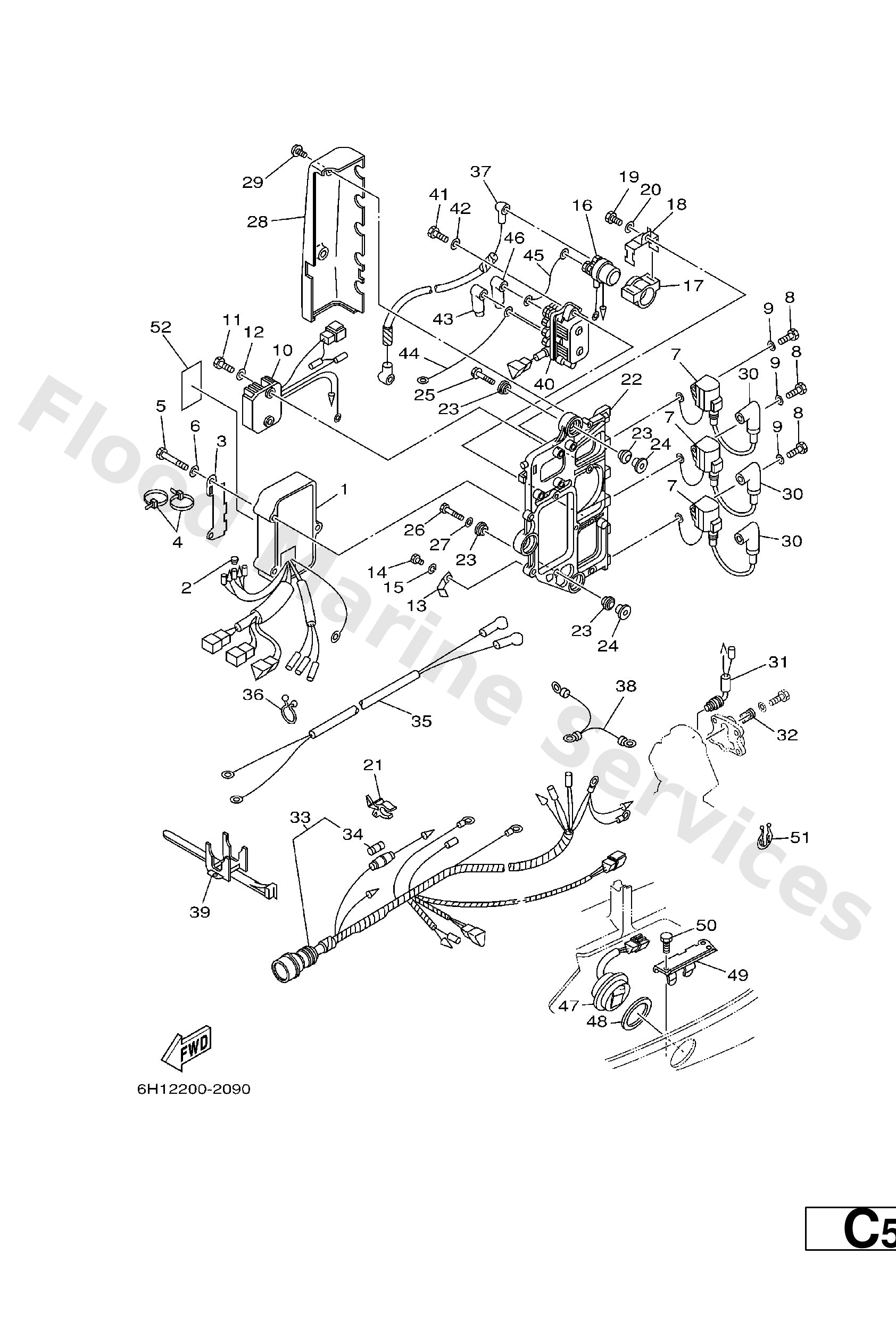

Diagram: ELECTRICAL
Parts List
Reference
Description
Price
1
6H0−85540−05
C.d.i. unit assembly
Loading…
↗
2
703−82119−00
Cover, lead wire
Loading…
↗
3
6H1−85542−10
Bracket
Loading…
↗
4
90465−13M11
Clamp (6e5)
Loading…
↗
5
97095−06050
Bolt(jf7)
Loading…
↗
6
92995−06600
Washer, plain (646)
Loading…
↗
7
697−85570−00
Ignition coil assembly
Loading…
↗
8
97013−06020
Bolt(62y)
Loading…
↗
9
92903−06600
Washer, plain (646)
Loading…
↗
10
6H0−81960−10
Rectifier & regulator assembly
Loading…
↗
11
97095−06020
Bolt(7u8)
Loading…
↗
13
90465−08M23
Clamp (6h3)
Loading…
↗
14
97095−06012
Bolt(gh1)
Loading…
↗
15
92995−06100
Washer(6a1)
Loading…
↗
16
6G1−81941−10
Starter relay
Loading…
↗
17
6G1−81952−00
Holder, relay
Loading…
↗
18
6E9−81945−70
Plate, switch fitting
Loading…
↗
19
97013−06016
Bolt, hexagon deep recess
Loading…
↗
21
6G5−82152−00
Holder, fuse
Loading…
↗
22
6H1−85542−00−94
Bracket
Loading…
↗
23
90480−09M25
Grommet(688)
Loading…
↗
24
90387−06M03
Collar (676)
Loading…
↗
25
90119−06M75
Bolt, with washer
Loading…
↗
26
90109−06M39
Bolt(6h0)
Loading…
↗
27
90201−06M31
Washer (6a0)
Loading…
↗
28
6H1−81916−00
Cover, terminal
Loading…
↗
29
90159−06M11
Screw, with washer(6l2)
Loading…
↗
30
6E3−82370−21
Plug cap assembly
Loading…
↗
31
688−82560−10
Thermo switch assembly
Loading…
↗
32
688−82588−01
Plate
Loading…
↗
33
6H0−82590−12
Wire harness assembly (10p)
Loading…
↗
34
663−82151−00
Fuse
Loading…
↗
35
6H0−82105−02
Battery cable
Loading…
↗
36
90464−23M22
Clamp
Loading…
↗
37
6H0−82117−00
Wire, lead
Loading…
↗
38
697−82519−00
Wire,earth lead
Loading…
↗
39
688−82594−00
Clamp
Loading…
↗
40
61A−81950−00
Relay assembly
Loading…
↗
41
97095−06025
Bolt
Loading…
↗
43
682−82119−01
Cover, lead wire
Loading…
↗
44
6H0−81949−10
Wire, lead
Loading…
↗
45
6H0−81949−01
Wire, lead
Loading…
↗
47
6H1−82563−10
Trim & tilt switch assembly
Loading…
↗
48
6E5−82587−00
Gasket
Loading…
↗
49
6H1−83614−00
Braket
Loading…
↗
50
97095−06016
Bolt, hexagon deep recess
Loading…
↗
51
90464−18M14
Clamp(6h1)
Loading…
↗
52
6R5−85711−60
Mark, caution
Loading…
↗
