75CETO (2003)
ELECTRICAL

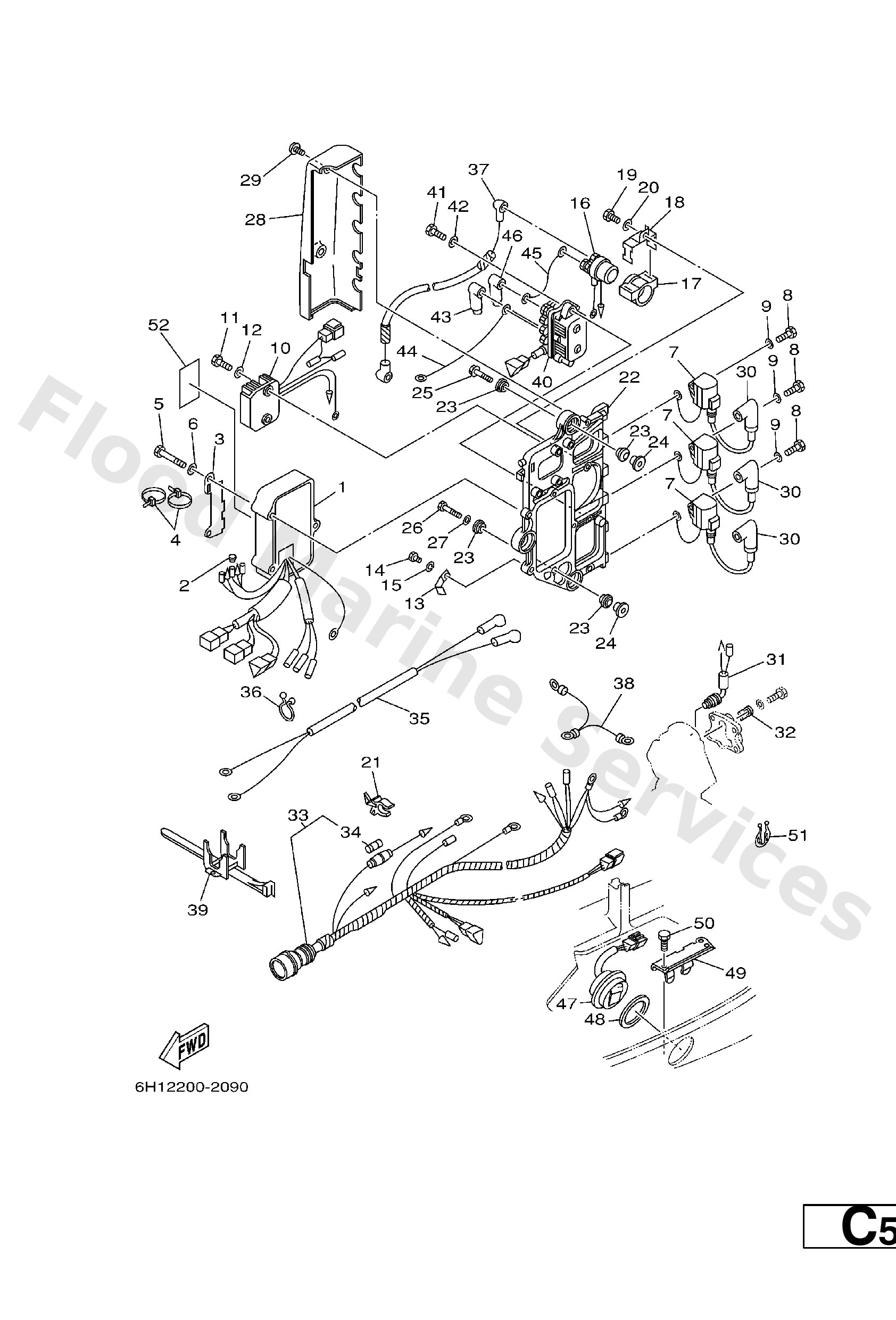

Diagram: ELECTRICAL
Parts List
Reference
Description
Price
1
6H08554006
C.d.i. unit assembly
Loading…
↗
2
703--82119--00
Cover, lead wire
Loading…
↗
3
6H1--85542--10
Bracket
Loading…
↗
4
90465--13M11
Clamp (6e5)
Loading…
↗
5
97095--06050
Bolt(jf7)
Loading…
↗
6
92995--06600
Washer, plain (646)
Loading…
↗
7
697--85570--00
Ignition coil assembly
Loading…
↗
8
97013--06020
Bolt(62y)
Loading…
↗
9
92903--06600
Washer, plain (646)
Loading…
↗
10
6H0--81960--10
Rectifier & regulator assembly
Loading…
↗
11
97095--06020
Bolt(7u8)
Loading…
↗
13
90465--08M23
Clamp (6h3)
Loading…
↗
14
97095--06012
Bolt(gh1)
Loading…
↗
15
92995--06100
Washer(6a1)
Loading…
↗
16
6G1--81941--10
Starter relay
Loading…
↗
17
6G1--81952--00
Holder, relay
Loading…
↗
18
6E9--81945--70
Plate, switch fitting
Loading…
↗
19
97013--06016
Bolt, hexagon deep recess
Loading…
↗
21
6G5--82152--00
Holder, fuse
Loading…
↗
22
6H1--85542--00--94
Bracket
Loading…
↗
23
90480--09M25
Grommet(688)
Loading…
↗
24
90387--06M03
Collar (676)
Loading…
↗
25
90119--06M75
Bolt, with washer
Loading…
↗
26
90109--06M39
Bolt(6h0)
Loading…
↗
27
90201--06M31
Washer (6a0)
Loading…
↗
28
6H1--81916--00
Cover, terminal
Loading…
↗
29
90159--06M11
Screw, with washer(6l2)
Loading…
↗
30
6E3--82370--21
Plug cap assembly
Loading…
↗
31
688--82560--10
Thermo switch assembly
Loading…
↗
32
688--82588--01
Plate
Loading…
↗
33
6H08259012
Wire harness assembly (10p)
Loading…
↗
34
663--82151--00
Fuse
Loading…
↗
35
6H0--82105--02
Battery cable
Loading…
↗
36
90464--23M22
Clamp
Loading…
↗
37
6H0--82117--00
Wire, lead
Loading…
↗
38
697--82519--00
Wire,earth lead
Loading…
↗
39
688--82594--00
Clamp
Loading…
↗
40
61A--81950--00
Relay assembly
Loading…
↗
41
97095--06025
Bolt
Loading…
↗
43
682--82119--01
Cover, lead wire
Loading…
↗
44
6H0--81949--10
Wire, lead
Loading…
↗
45
6H0--81949--01
Wire, lead
Loading…
↗
47
6H1--82563--10
Trim & tilt switch assembly
Loading…
↗
48
6E5--82587--00
Gasket
Loading…
↗
49
6H1--83614--00
Braket
Loading…
↗
50
97095--06016
Bolt, hexagon deep recess
Loading…
↗
51
90464--18M14
Clamp(6h1)
Loading…
↗
52
6R5--85711--60
Mark, caution
Loading…
↗
