75CETO (2004)
ELECTRICAL

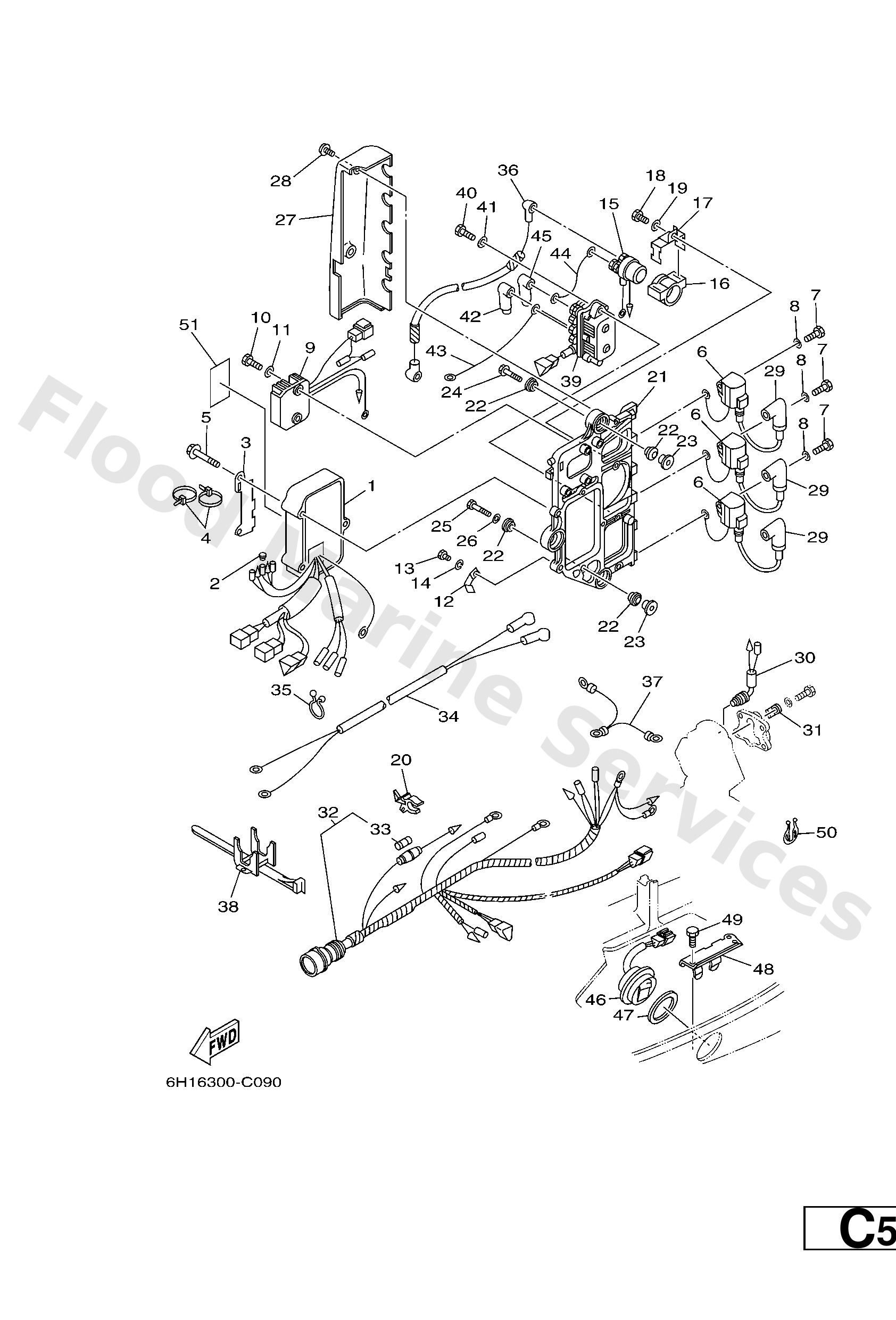

Diagram: ELECTRICAL
Parts List
Reference
Description
Price
1
6H08554006
C.d.i. unit assembly
Loading…
↗
2
7038211900
Cover, lead wire
Loading…
↗
3
6H18554210
Bracket
Loading…
↗
4
9046513M11
Clamp (6e5)
Loading…
↗
5
9759506550
Bolt, hexagon w/w deep recess
Loading…
↗
6
6978557000
Ignition coil assembly
Loading…
↗
7
9701306020
Bolt(62y)
Loading…
↗
8
9290306600
Washer, plain (646)
Loading…
↗
9
6H08196010
Rectifier & regulator assembly
Loading…
↗
10
9709506020
Bolt(7u8)
Loading…
↗
11
9299506600
Washer, plain (646)
Loading…
↗
12
9046508M23
Clamp (6h3)
Loading…
↗
13
9709506012
Bolt(gh1)
Loading…
↗
14
9299506100
Washer(6a1)
Loading…
↗
15
6G18194110
Starter relay
Loading…
↗
16
6G18195200
Holder, relay
Loading…
↗
17
6E98194570
Plate, switch fitting
Loading…
↗
18
9701306016
Bolt, hexagon deep recess
Loading…
↗
20
6G58215200
Holder, fuse
Loading…
↗
21
6H1855420094
Bracket
Loading…
↗
22
9048009M25
Grommet(688)
Loading…
↗
23
9038706M03
Collar (676)
Loading…
↗
24
9011906M75
Bolt, with washer
Loading…
↗
25
9010906M39
Bolt(6h0)
Loading…
↗
26
9020106M31
Washer (6a0)
Loading…
↗
27
6H18191600
Cover, terminal
Loading…
↗
28
9015906M11
Screw, with washer(6l2)
Loading…
↗
29
6E38237021
Plug cap assembly
Loading…
↗
30
6888256010
Thermo switch assembly
Loading…
↗
31
6888258801
Plate
Loading…
↗
32
6H08259012
Wire harness assembly (10p)
Loading…
↗
33
6638215100
Fuse
Loading…
↗
34
6H08210502
Battery cable
Loading…
↗
35
9046423M22
Clamp
Loading…
↗
36
6H08211700
Wire, lead
Loading…
↗
37
6978251900
Wire,earth lead
Loading…
↗
38
6888259400
Clamp
Loading…
↗
39
61A8195000
Relay assembly
Loading…
↗
40
9709506025
Bolt
Loading…
↗
42
6828211901
Cover, lead wire
Loading…
↗
43
6H08194910
Wire, lead
Loading…
↗
44
6H08194901
Wire, lead
Loading…
↗
46
6H18256310
Trim & tilt switch assembly
Loading…
↗
47
6E58258700
Gasket
Loading…
↗
48
6H18361400
Braket
Loading…
↗
49
9709506016
Bolt, hexagon deep recess
Loading…
↗
50
9046418M14
Clamp(6h1)
Loading…
↗
51
6R58571160
Mark, caution
Loading…
↗
