8CMH (2005)
ELECTRICAL

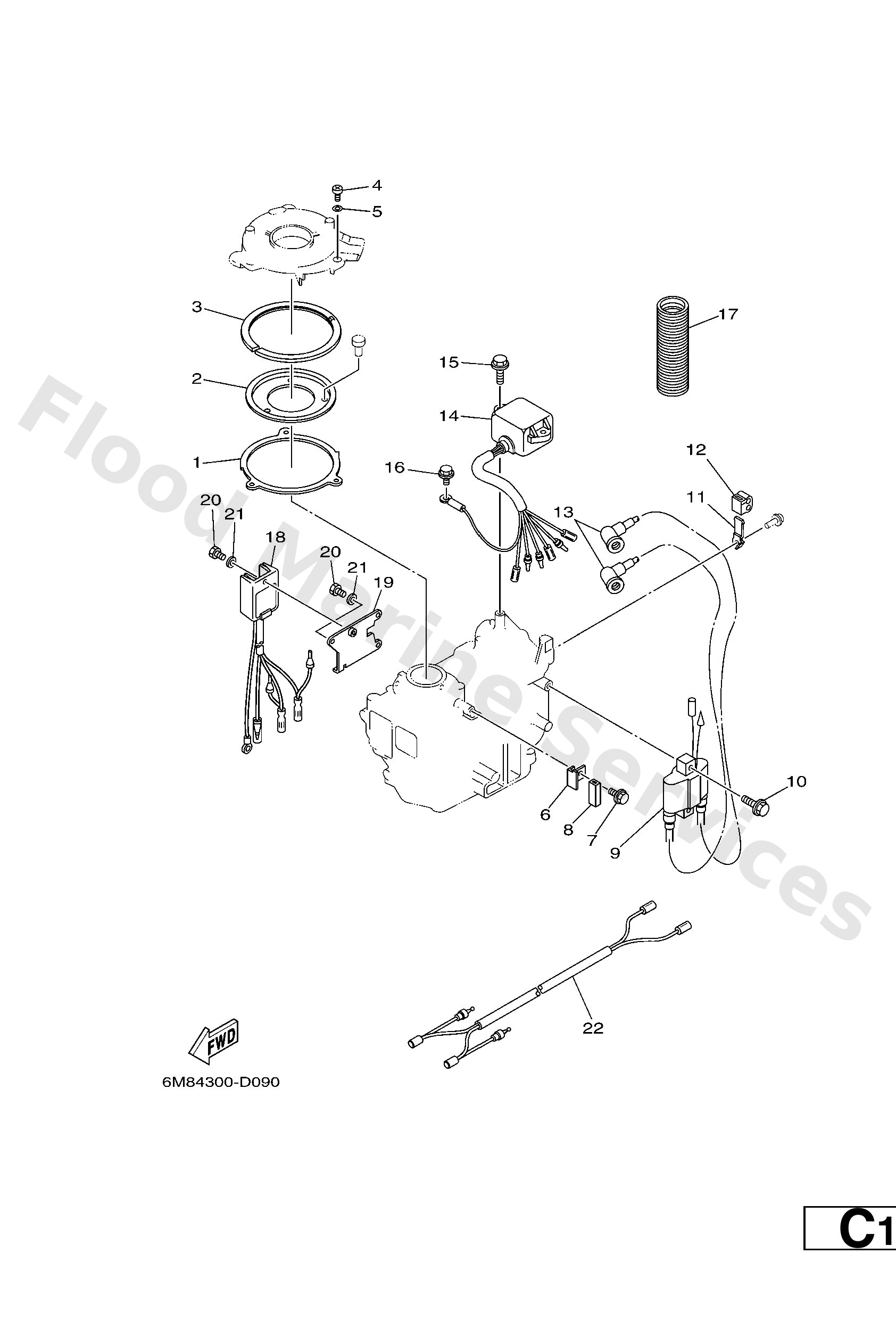

Diagram: ELECTRICAL
Parts List
Reference
Description
Price
1
6N0G161100
Retainer, magneto base 1
Loading…
↗
2
6G14161200
Retainer, magneto base
Loading…
↗
3
6N0G161300
Plate, base friction
Loading…
↗
4
9788505010
Screw, pan head(62x)
Loading…
↗
5
9299505600
Washer, plain (646)
Loading…
↗
6
6G14161501
Stopper, magneto base
Loading…
↗
7
9589506010
Bolt, flange(7ht)
Loading…
↗
8
6G14419400
Cap
Loading…
↗
9
6G18557001
Ignition coil assembly
Loading…
↗
10
9589506025
Bolt, flange deep recess
Loading…
↗
11
6M88236100
Clamp, cord
Loading…
↗
12
6M88236200
Clamp, cord 2
Loading…
↗
13
6G18237021
Plug cap assembly
Loading…
↗
14
6968554012
C.d.i. unit assembly
Loading…
↗
15
9589506020
Bolt, flange(jk3)
Loading…
↗
17
6G18355700
Tube
Loading…
↗
18
6J88196000
Rectifier & regulator assembly
Loading…
↗
19
6N0H191500
Plate, regulator fitting
Loading…
↗
20
9709506012
Bolt(gh1)
Loading…
↗
21
9299506600
Washer, plain (646)
Loading…
↗
22
6N0H255310
Extension, wire lead
Loading…
↗
