9.9FMH (2011)
ELECTRICAL

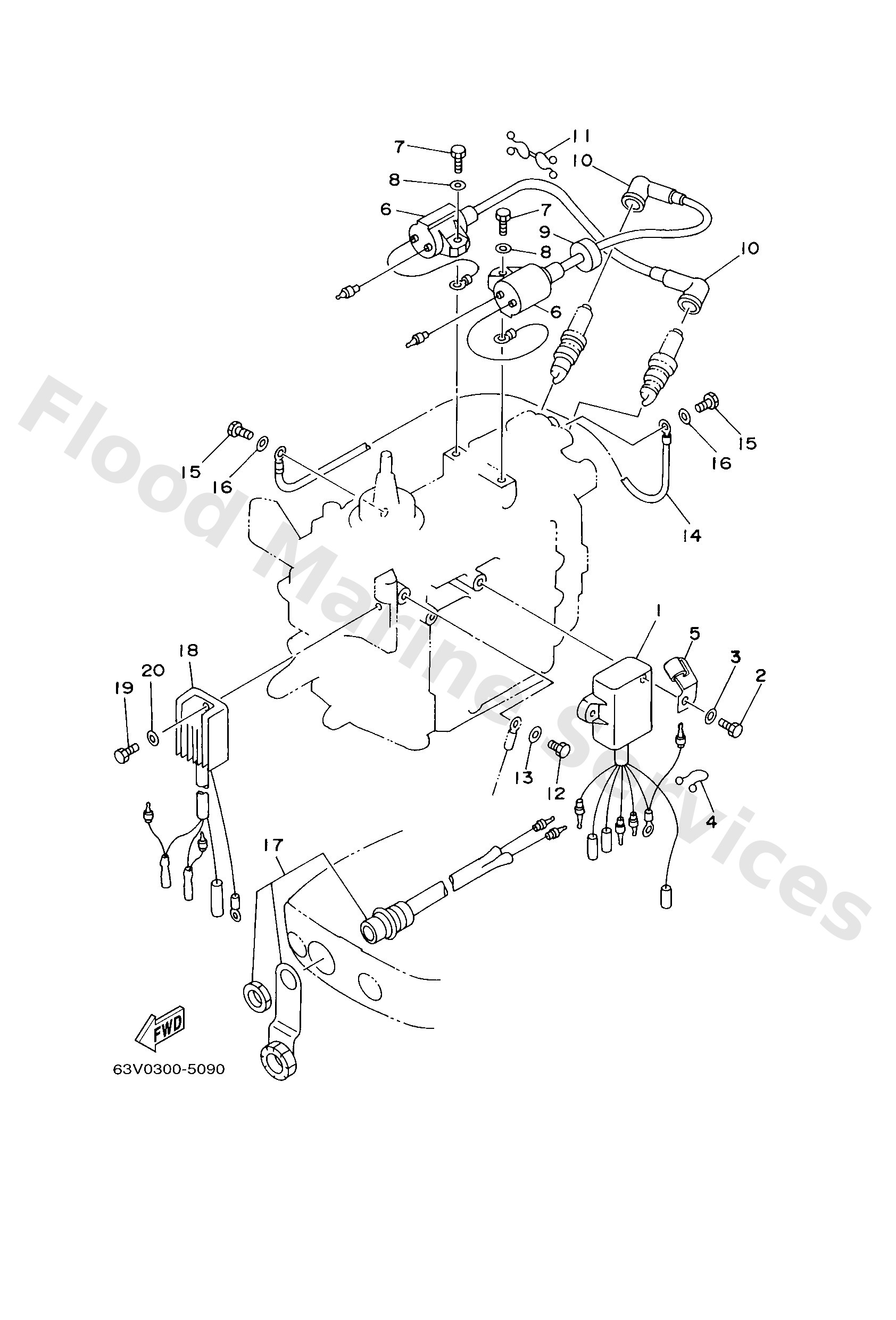

Diagram: ELECTRICAL
Parts List
Reference
Description
Price
1
63V8554001
C.d.i. unit assembly
Loading…
↗
2
9709506020
Bolt(7u8)
Loading…
↗
3
9299506600
Washer, plain (646)
Loading…
↗
4
9046415M11
Clamp (3y2)
Loading…
↗
5
9046508M61
Clamp(63v)
Loading…
↗
6
63V8557000
Ignition coil assembly
Loading…
↗
7
9709506018
Bolt (fj0)
Loading…
↗
9
9048025161
Grommet(656)
Loading…
↗
10
6E38237021
Plug cap assembly
Loading…
↗
11
9046408M02
Clamp
Loading…
↗
12
9709506012
Bolt(gh1)
Loading…
↗
14
6628251900
Wire, earth lead
Loading…
↗
17
6828438100
2p concent 1
Loading…
↗
18
6J88196000
Rectifier & regulator assembly
Loading…
↗
19
9709506016
Bolt, hexagon deep recess
Loading…
↗
