9.9FMH (2019)
ELECTRICAL

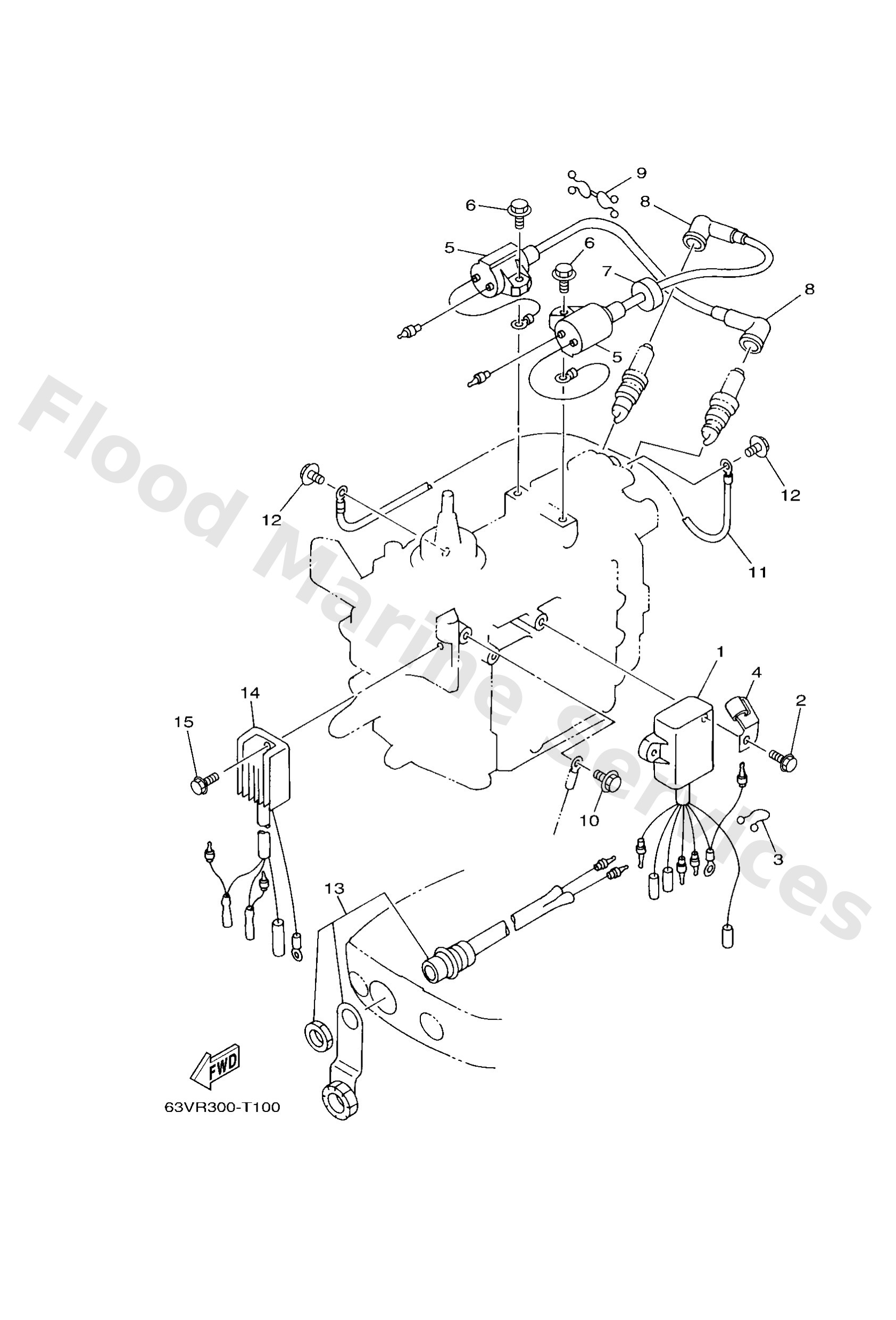

Diagram: ELECTRICAL
Parts List
Reference
Description
Price
1
63V8554002
C.d.i. unit assembly
Loading…
↗
2
97E9506520
Bolt, hexagon w/w deep recess
Loading…
↗
3
9046415M11
Clamp (3y2)
Loading…
↗
4
9046508M61
Clamp(63v)
Loading…
↗
5
63V8557001
Ignition coil assembly
Loading…
↗
6
97E9506518
Bolt, hexagon w/w deep recess
Loading…
↗
7
9048025161
Grommet(656)
Loading…
↗
8
6E38237021
Plug cap assembly
Loading…
↗
9
9046408M02
Clamp
Loading…
↗
10
97E9506512
Bolt, hexagon w/w deep recess
Loading…
↗
11
6628251900
Wire, earth lead
Loading…
↗
13
6828438100
2p concent 1
Loading…
↗
14
6J88196000
Rectifier & regulator assembly
Loading…
↗
15
97E9506516
Bolt, hexagon w/w deep recess
Loading…
↗
