E60HMHD (2002)
ELECTRICAL

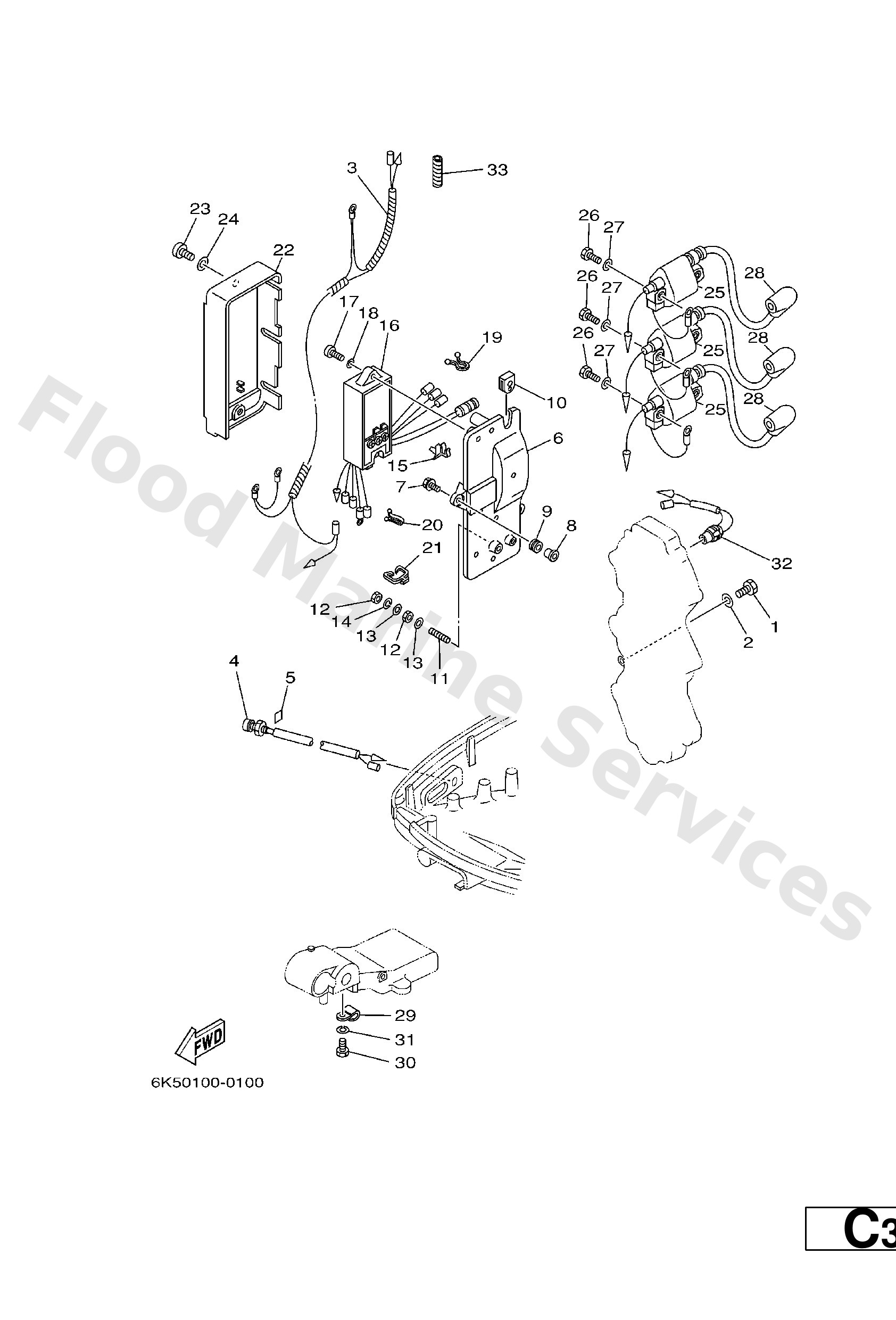

Diagram: ELECTRICAL
Parts List
Reference
Description
Price
1
97013−06012
Bolt(gh1)
Loading…
↗
2
92903−06600
Washer, plain (646)
Loading…
↗
3
6K5−82531−00
Wire, lead
Loading…
↗
4
6H4−85411−00
Overheat warning lamp
Loading…
↗
5
6H4−85415−00
Mark, Signal Lamp
Loading…
↗
6
6H3−85542−00−94
Bracket
Loading…
↗
7
90105−06M14
Bolt (6e0)
Loading…
↗
8
90387−06M43
Coller (6e9)
Loading…
↗
9
90480−13M24
Grommet (6e9)
Loading…
↗
10
6H3−81922−00
Grommet
Loading…
↗
11
90116−06M07
Bolt, stud (688)
Loading…
↗
12
95380−06700
Nut
Loading…
↗
13
92990−06200
Ybs66-6 washer, plain
Loading…
↗
14
92990−06100
Washer(6a1)
Loading…
↗
15
90464−04M12
Clamp (6h3)
Loading…
↗
16
6H3−85540−11
C.d.i. unit assembly
Loading…
↗
17
97880−06025
Screw, pan head(6b0)
Loading…
↗
18
92990−06600
Washer, plain (646)
Loading…
↗
19
90464−08M07
Clamp
Loading…
↗
20
90464−12M17
Clamp(6j8)
Loading…
↗
21
90464−07M10
Clamp (6h3)
Loading…
↗
22
6H3−81916−00
Cover, terminal
Loading…
↗
23
97885−06012
Screw, pan head(62j)
Loading…
↗
24
92995−06600
Washer, plain (646)
Loading…
↗
25
6H3−85570−10
Ignition coil assembly
Loading…
↗
26
97013−06025
Bolt(62y)
Loading…
↗
28
6G1−82370−21
Plug cap assembly
Loading…
↗
29
90465−06M90
Clamp
Loading…
↗
31
92903−06100
Washer(6a1)
Loading…
↗
32
688−82560−10
Thermo switch assembly
Loading…
↗
33
90446−10M02
Tube (6e5)
Loading…
↗
