E60HMHD (2007)
ELECTRICAL

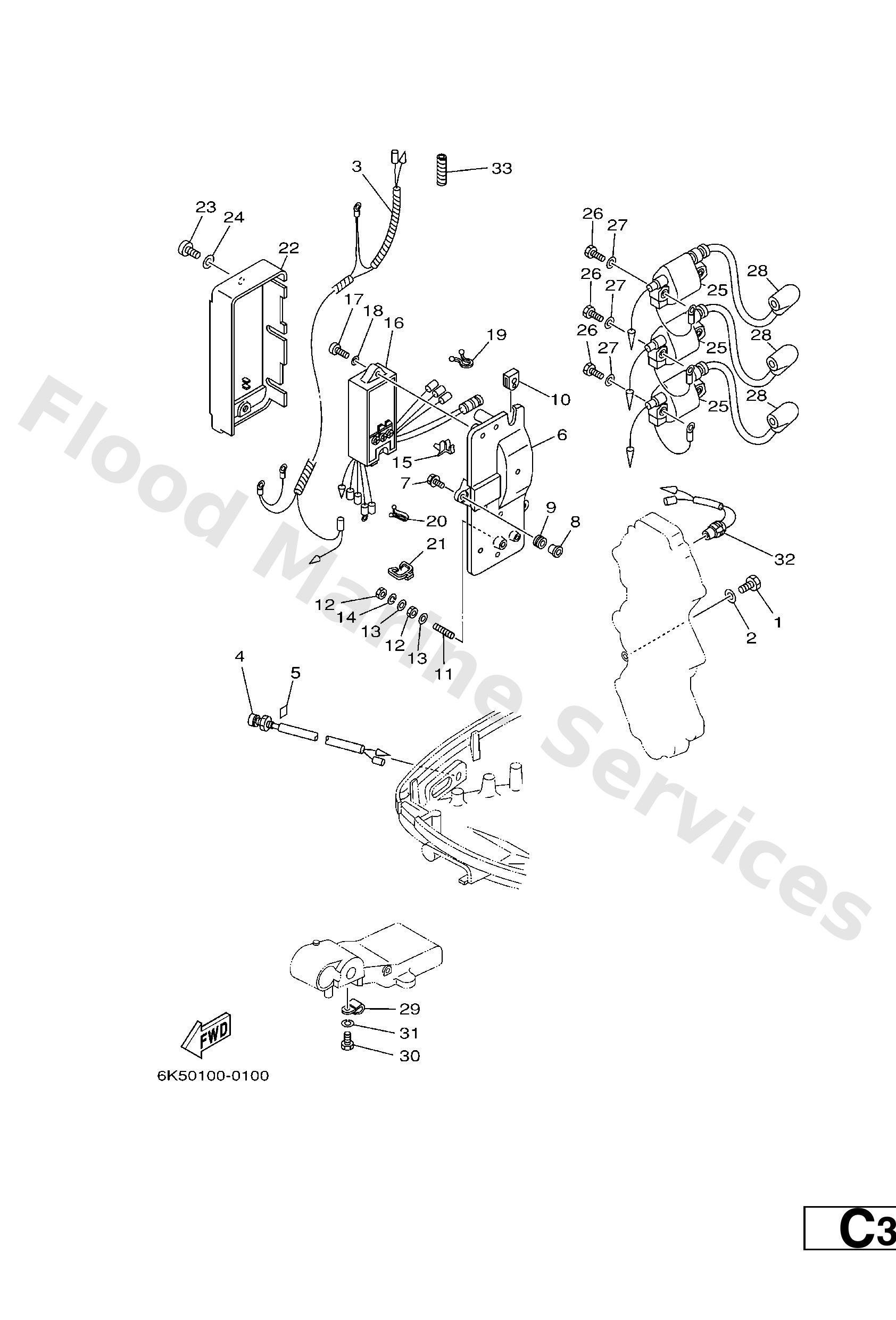

Diagram: ELECTRICAL
Parts List
Reference
Description
Price
1
9701306012
Bolt(gh1)
Loading…
↗
2
9290306600
Washer, plain (646)
Loading…
↗
3
6K58253100
Wire, lead
Loading…
↗
4
6H48541100
Overheat warning lamp
Loading…
↗
5
6H48541500
Mark, Signal Lamp
Loading…
↗
6
6H3855420094
Bracket
Loading…
↗
7
9010506M14
Bolt (6e0)
Loading…
↗
8
9038706M43
Coller (6e9)
Loading…
↗
9
9048013M24
Grommet (6e9)
Loading…
↗
10
6H38192200
Grommet
Loading…
↗
11
9011606M07
Bolt, stud (688)
Loading…
↗
12
9538006700
Nut
Loading…
↗
13
9299006200
Ybs66-6 washer, plain
Loading…
↗
14
9299006100
Washer(6a1)
Loading…
↗
15
9046404M12
Clamp (6h3)
Loading…
↗
16
6H38554011
C.d.i. unit assembly
Loading…
↗
17
9788006025
Screw, pan head(6b0)
Loading…
↗
18
9299006600
Washer, plain (646)
Loading…
↗
19
9046408M07
Clamp
Loading…
↗
20
9046412M17
Clamp(6j8)
Loading…
↗
21
9046407M10
Clamp (6h3)
Loading…
↗
22
6H38191600
Cover, terminal
Loading…
↗
23
9788506012
Screw, pan head(62j)
Loading…
↗
24
9299506600
Washer, plain (646)
Loading…
↗
25
6H38557010
Ignition coil assembly
Loading…
↗
26
9701306025
Bolt(62y)
Loading…
↗
28
6G18237021
Plug cap assembly
Loading…
↗
29
9046506M90
Clamp
Loading…
↗
31
9290306100
Washer(6a1)
Loading…
↗
32
6888256010
Thermo switch assembly
Loading…
↗
33
9044610M02
Tube (6e5)
Loading…
↗
