E60HMHD (2020)
ELECTRICAL

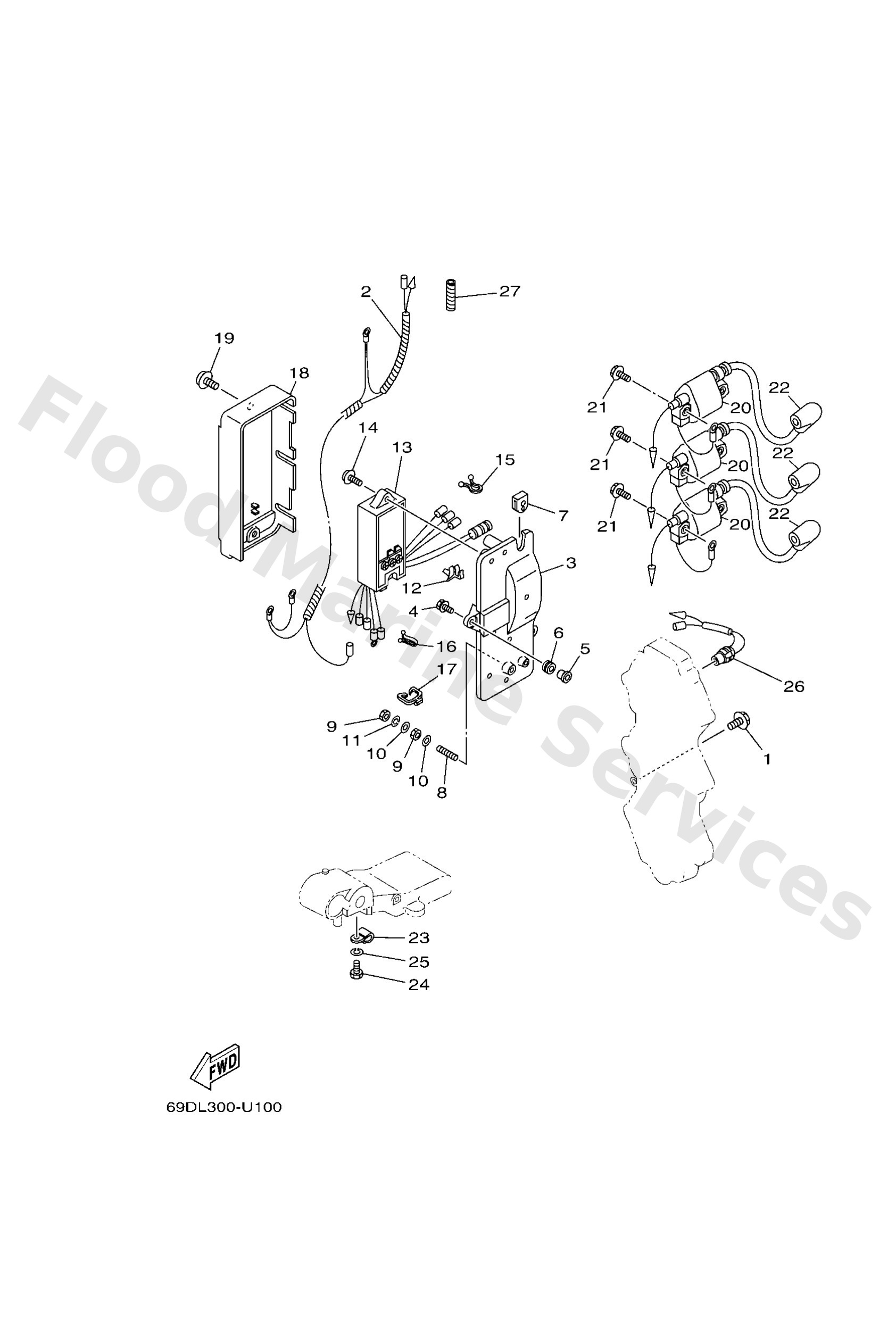

Diagram: ELECTRICAL
Parts List
Reference
Description
Price
1
9751306512
Bolt, with washer(6g4)
Loading…
↗
2
69D8253100
Wire, lead
Loading…
↗
3
6H38554200
Bracket
Loading…
↗
4
9010506M14
Bolt (6e0)
Loading…
↗
5
9038706M43
Coller (6e9)
Loading…
↗
6
9048013M24
Grommet (6e9)
Loading…
↗
7
6H38192200
Grommet
Loading…
↗
8
9011606M07
Bolt, stud (688)
Loading…
↗
9
9538006700
Nut
Loading…
↗
10
9299006200
Ybs66-6 washer, plain
Loading…
↗
11
9299006100
Washer(6a1)
Loading…
↗
12
9046404M12
Clamp (6h3)
Loading…
↗
13
6H38554012
C.d.i. unit assembly
Loading…
↗
14
9798006225
Screw, with washer
Loading…
↗
15
9046408M07
Clamp
Loading…
↗
16
9046412M17
Clamp(6j8)
Loading…
↗
17
9046407M10
Clamp (6h3)
Loading…
↗
18
6H38191600
Cover, terminal
Loading…
↗
19
9798506212
Screw, with washer(6h3)
Loading…
↗
20
6H38557010
Ignition coil assembly
Loading…
↗
21
9751306525
Bolt, with washer(61b)
Loading…
↗
22
6G18237021
Plug cap assembly
Loading…
↗
23
9046506M90
Clamp
Loading…
↗
24
9701306012
Bolt(gh1)
Loading…
↗
25
9290306100
Washer(6a1)
Loading…
↗
26
6888256010
Thermo switch assembly
Loading…
↗
27
9044610M02
Tube (6e5)
Loading…
↗
