Yamaha Outboard Parts - ELECTRICAL - F4BMH (2025) | Flood Marine

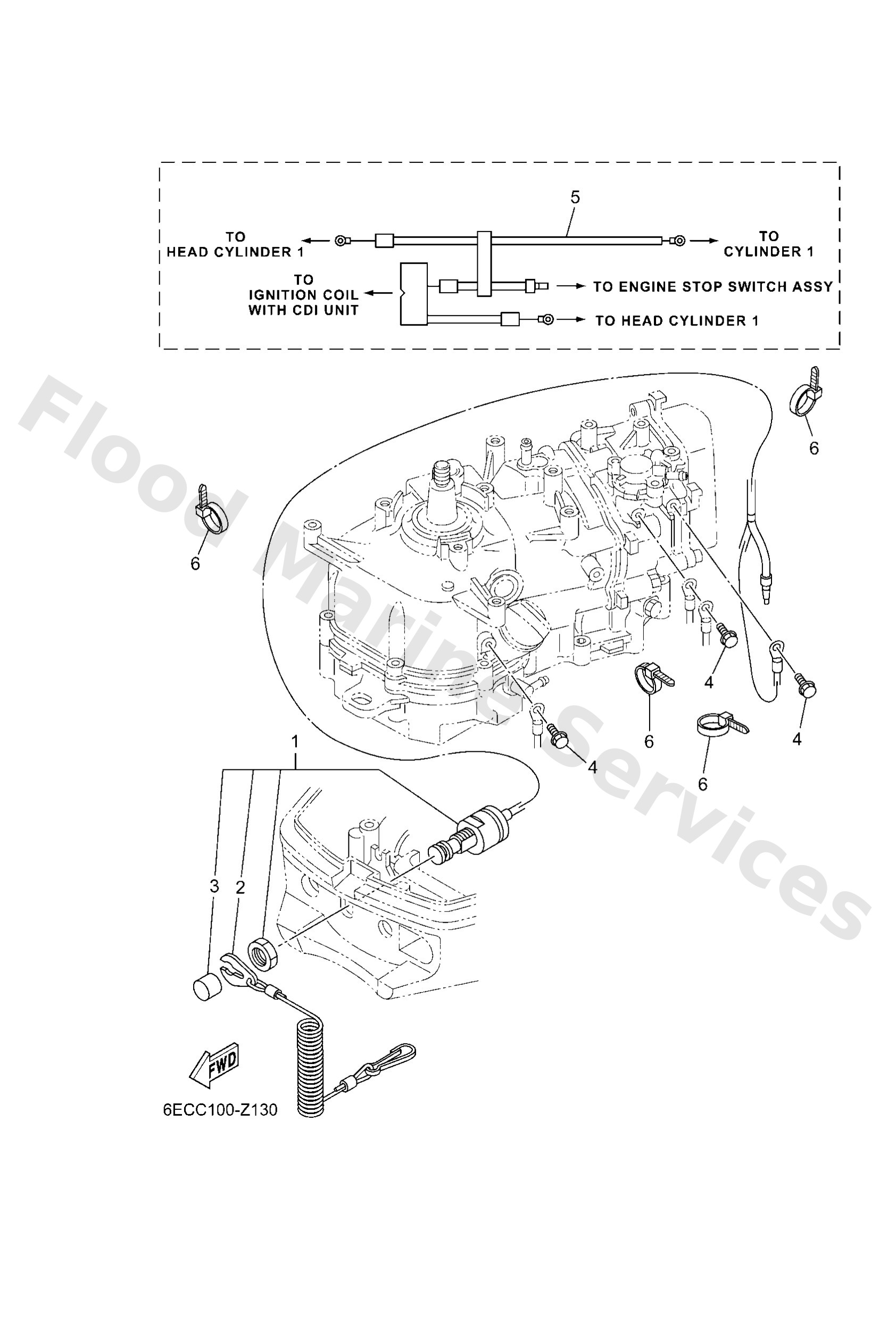

Diagram: ELECTRICAL

Diagram

Parts List

Reference
Description
Price


1
6EE8257500
Engine stop switch assembly
Loading…

↗
2
6828255600
Lanyard, stop switch
Loading…

↗
3
6898257Y00
Cap
Loading…

↗
4
97E9506512
Bolt, hexagon w/w deep recess
Loading…

↗
5
6EE8253100
Wire, lead
Loading…

↗
6
9046513M97
Clamp
Loading…

↗
