F8FMH (2015)
ELECTRICAL

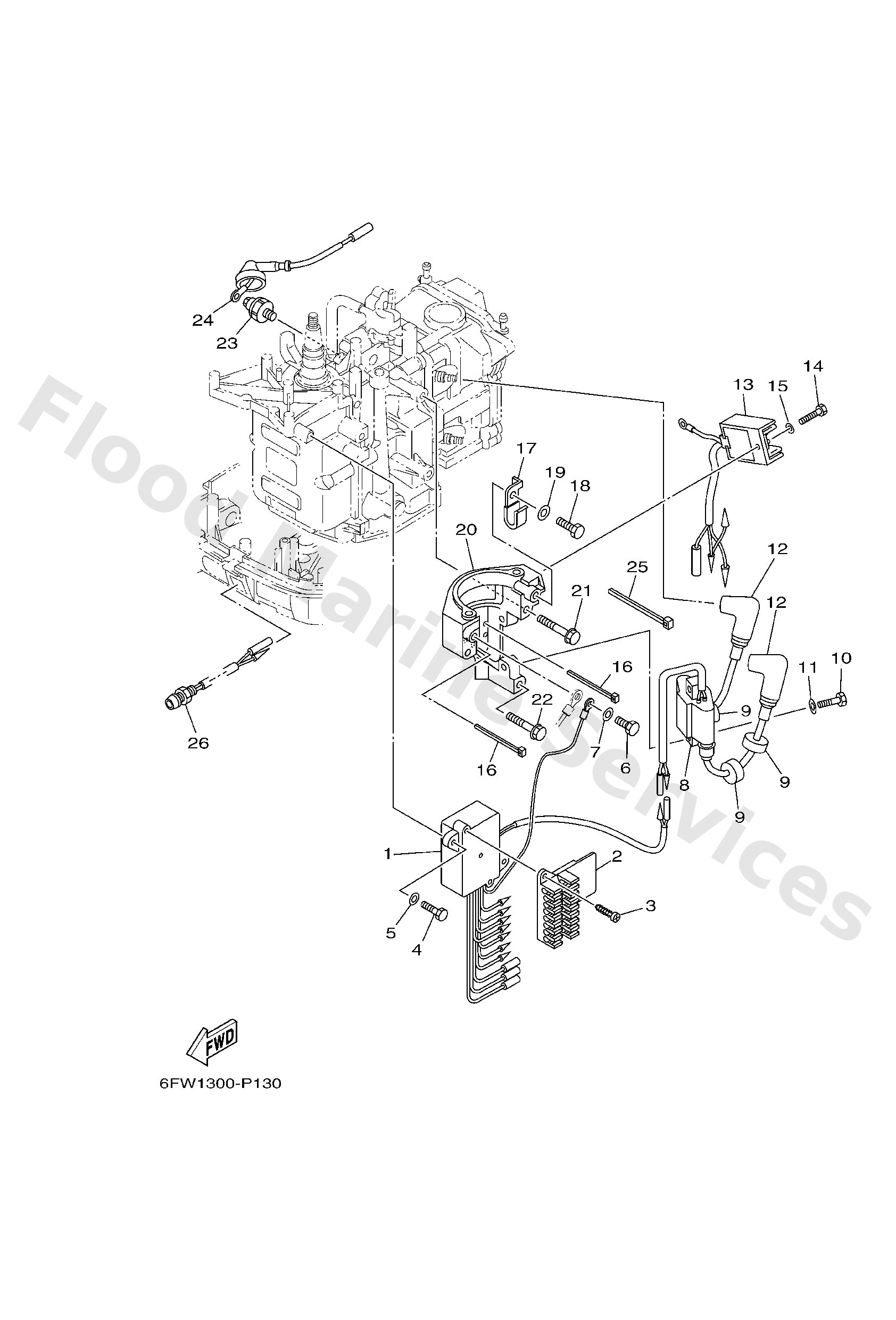

Diagram: ELECTRICAL
Parts List
Reference
Description
Price
1
68T8554000
C.d.i. unit assembly
Loading…
↗
2
68T8252200
Clamp, coupler
Loading…
↗
3
9778040512
Screw, pan head tapping
Loading…
↗
4
9709506020
Bolt(7u8)
Loading…
↗
15
9299506600
FOR RUS
Washer, plain (646)
Loading…
↗
14
9709506012
FOR RUS
Bolt(gh1)
Loading…
↗
8
6808557002
Ignition coil assembly
Loading…
↗
9
9048025003
Grommet
Loading…
↗
10
9709506025
Bolt
Loading…
↗
12
6E38237021
Plug cap assembly
Loading…
↗
13
68T8196000
FOR RUS
Rectifier & regulator assembly
Loading…
↗
16
9046511M10
FOR RUS
Clamp
Loading…
↗
17
9046508M99
Clamp
Loading…
↗
20
68T8182201
Bracket, starting motor
Loading…
↗
21
9011908046
Bolt, with washer
Loading…
↗
22
9011908020
Bolt, with washer
Loading…
↗
23
67F8250400
Oil pressure switch assembly
Loading…
↗
24
68T8212710
Wire, lead 2
Loading…
↗
26
68T8541000
Emergency signal light assembly
Loading…
↗
