115CETO (2010)
ELECTRICAL 1

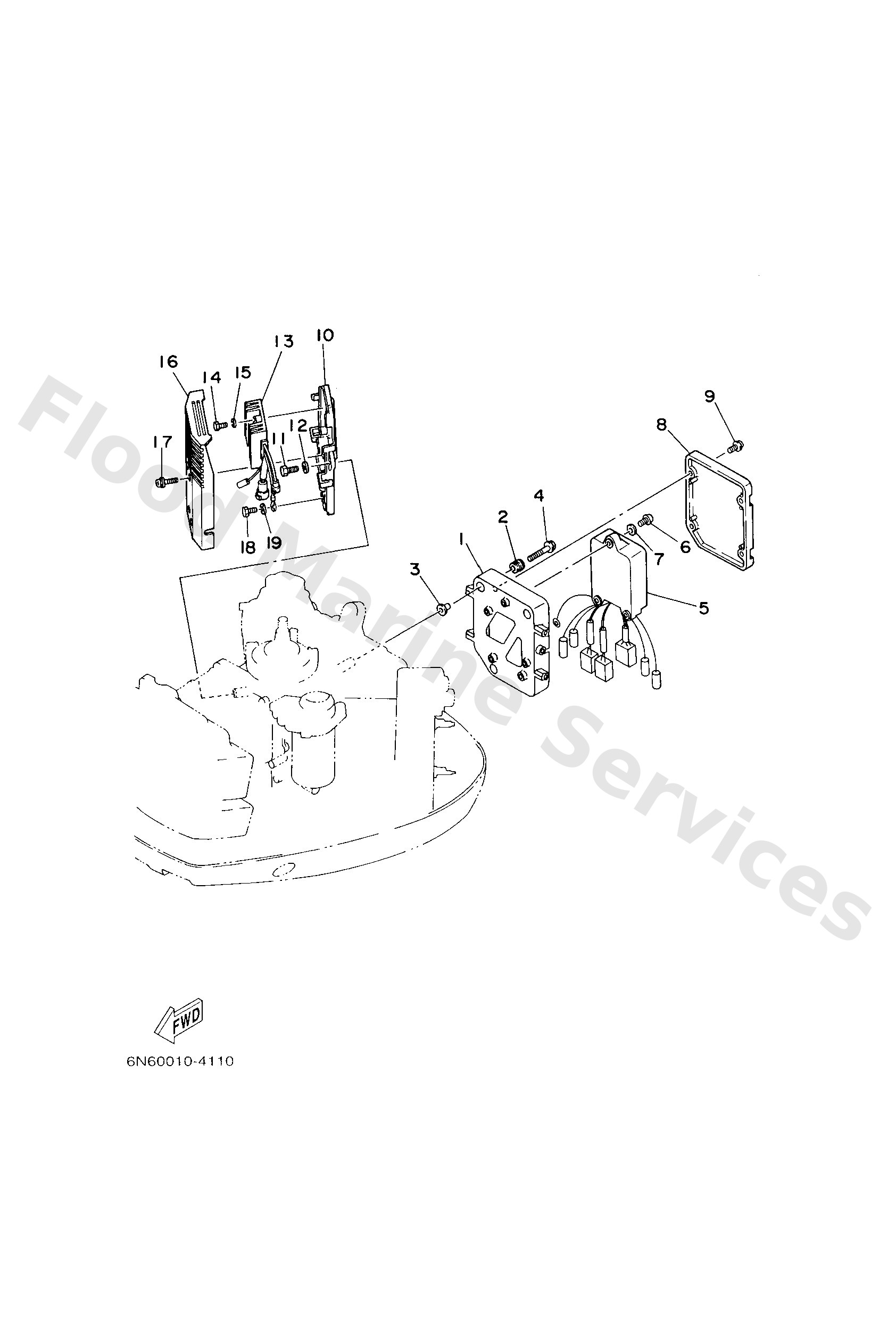

Diagram: ELECTRICAL 1
Parts List
Reference
Description
Price
1
6N785542011S
Bracket
Loading…
↗
2
6A08231700
Damper, ignition coil
Loading…
↗
3
9038706119
Collar
Loading…
↗
4
9011906M59
Bolt, with washer
Loading…
↗
5
6N78554001
C.d.i. unit assembly
Loading…
↗
6
9788006020
Screw pan head
Loading…
↗
7
9299006600
Washer, plain (646)
Loading…
↗
8
6N78553700
Cover
Loading…
↗
9
9015906M11
Screw, with washer(6l2)
Loading…
↗
10
6N7819480094
Bracket
Loading…
↗
11
9701306016
Bolt, hexagon deep recess
Loading…
↗
12
9290306600
Washer, plain (646)
Loading…
↗
13
6R38196000
Rectifier & regulator assembly
Loading…
↗
14
9701306025
Bolt(62y)
Loading…
↗
16
6R38194200
Cover
Loading…
↗
17
9015906M08
Screw, with washer(6k7)
Loading…
↗
18
9709506012
Bolt(gh1)
Loading…
↗
19
9299506600
Washer, plain (646)
Loading…
↗
