200GETO (2002)
ELECTRICAL 1

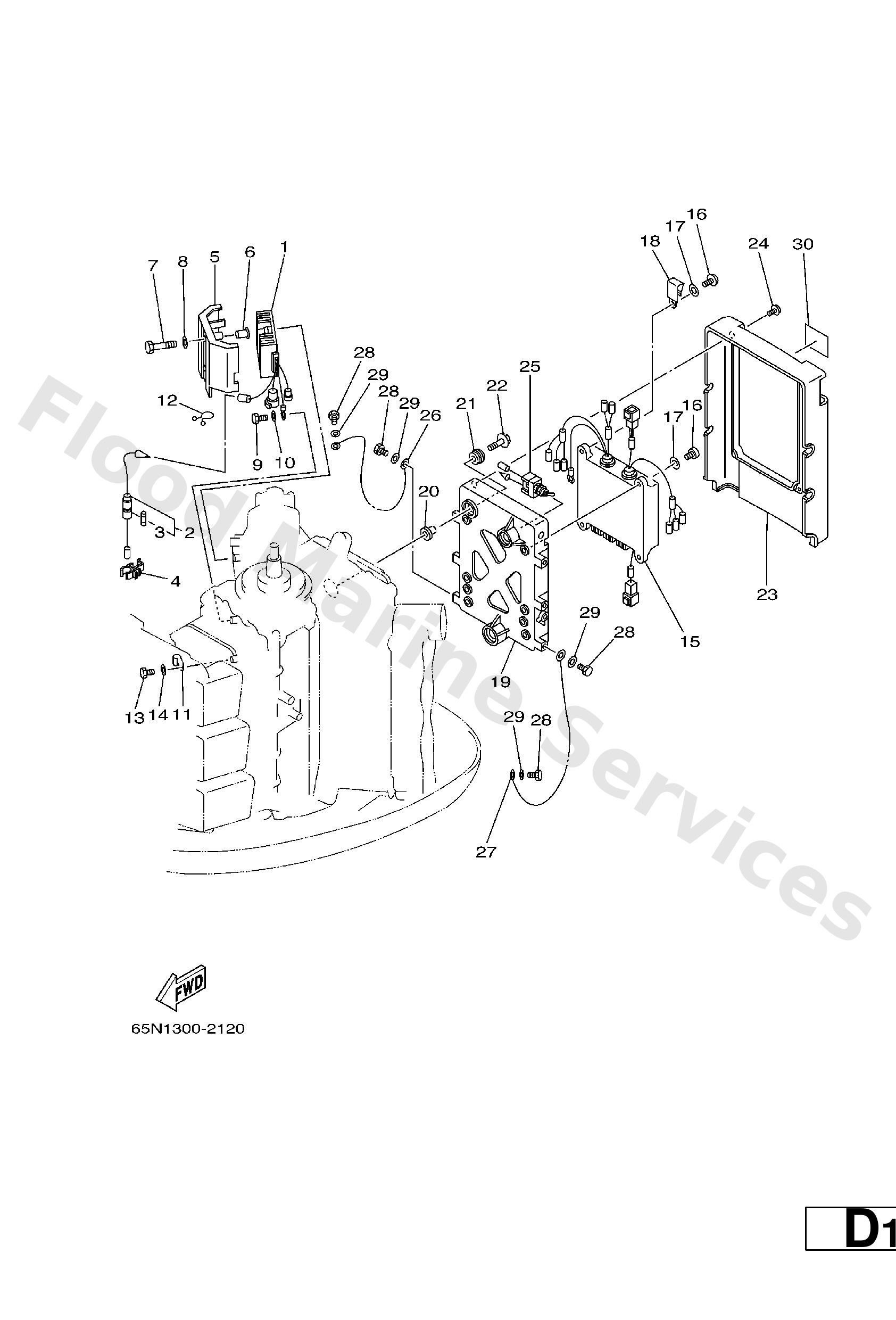

Diagram: ELECTRICAL 1
Parts List
Reference
Description
Price
1
6R3--81960--10
Rectifier & regulator assembly
Loading…
↗
2
6R3--82150--00
Fuse holder assembly
Loading…
↗
3
705--82151--00
Fuse (30a)
Loading…
↗
4
6G5--82152--00
Holder, fuse
Loading…
↗
5
64D--81942--00
Cover
Loading…
↗
6
90387--06M66
Collar (6h4)
Loading…
↗
7
97013--06055
Bolt(64d)
Loading…
↗
8
92903--06600
Washer, plain (646)
Loading…
↗
9
97095--06012
Bolt(gh1)
Loading…
↗
10
92995--06600
Washer, plain (646)
Loading…
↗
11
90465--06M88
Clamp
Loading…
↗
12
90464--15M11
Clamp (3y2)
Loading…
↗
15
64E8554001
C.d.i. unit assembly
Loading…
↗
16
97880--06020
Screw pan head
Loading…
↗
17
92990--06600
Washer, plain (646)
Loading…
↗
18
90465--05M87
Clamp
Loading…
↗
19
6R3--85542--03--1S
Bracket
Loading…
↗
20
90387--06M03
Collar (676)
Loading…
↗
21
90480--09M12
Grommet (6a0)
Loading…
↗
22
90119--06M61
Bolt, with washer
Loading…
↗
23
64D--85537--00
Cover
Loading…
↗
24
90159--06M11
Screw, with washer(6l2)
Loading…
↗
25
6R3--8259E--00
Switch assembly
Loading…
↗
26
662--82519--00
Wire, earth lead
Loading…
↗
27
6R3--82519--00
Wire, earth lead
Loading…
↗
30
6E5--85711--60
12 −
Loading…
↗
