225DETO (2003)
ELECTRICAL 1

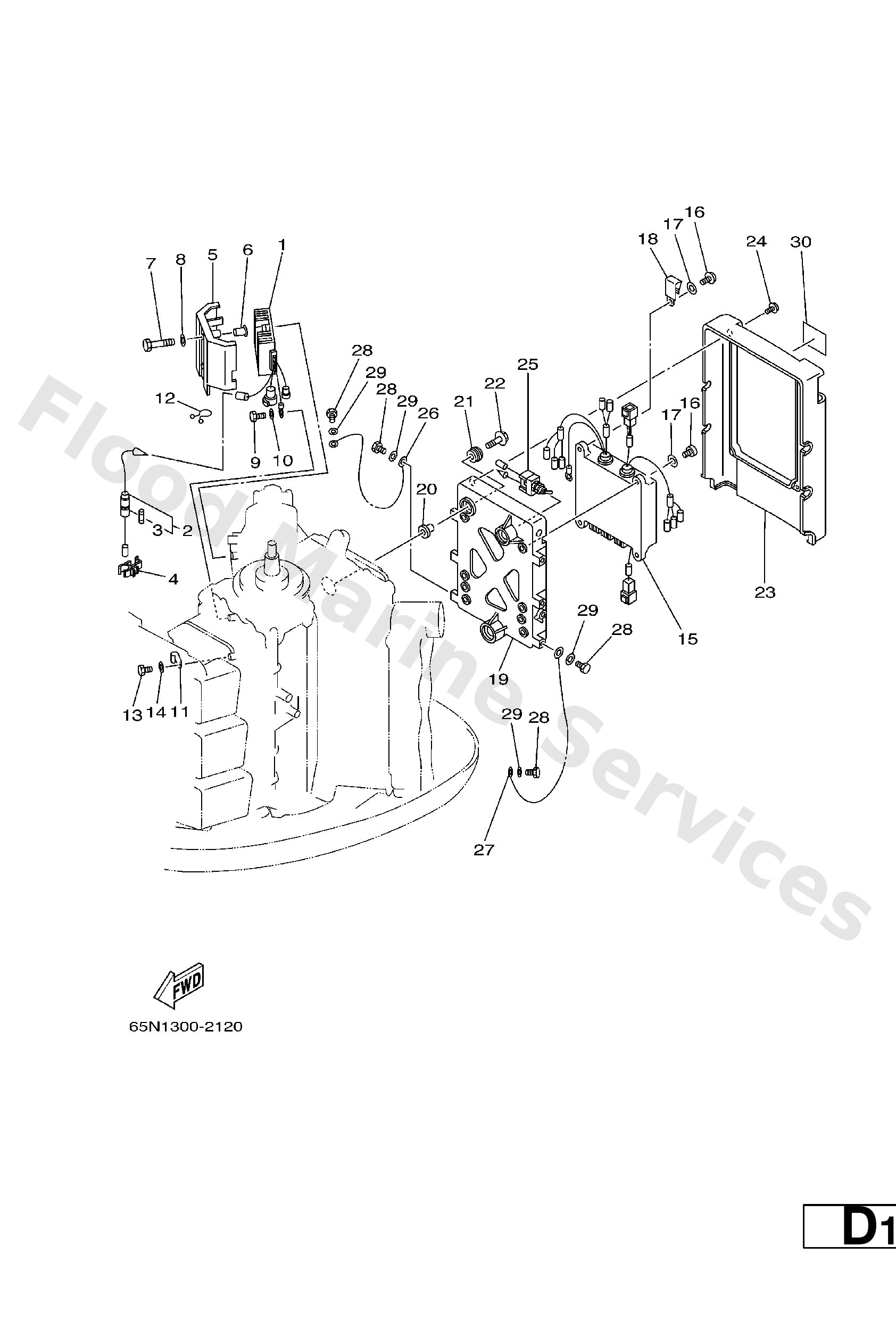

Diagram: ELECTRICAL 1
Parts List
Reference
Description
Price
1
6R3−81960−10
Rectifier & regulator assembly
Loading…
↗
2
6R3−82150−00
Fuse holder assembly
Loading…
↗
3
705−82151−00
Fuse (30a)
Loading…
↗
4
6G5−82152−00
Holder, fuse
Loading…
↗
5
64D−81942−00
Cover
Loading…
↗
6
90387−06M66
Collar (6h4)
Loading…
↗
7
97013−06055
Bolt(64d)
Loading…
↗
8
92903−06600
Washer, plain (646)
Loading…
↗
9
97095−06012
Bolt(gh1)
Loading…
↗
10
92995−06600
Washer, plain (646)
Loading…
↗
11
90465−06M88
Clamp
Loading…
↗
12
90464−15M11
Clamp (3y2)
Loading…
↗
15
64E−85540−01
C.d.i. unit assembly
Loading…
↗
16
97880−06020
Screw pan head
Loading…
↗
17
92990−06600
Washer, plain (646)
Loading…
↗
18
90465−05M87
Clamp
Loading…
↗
19
6R3−85542−03−1S
Bracket
Loading…
↗
20
90387−06M03
Collar (676)
Loading…
↗
21
90480−09M12
Grommet (6a0)
Loading…
↗
22
90119−06M61
Bolt, with washer
Loading…
↗
23
64D−85537−00
Cover
Loading…
↗
24
90159−06M11
Screw, with washer(6l2)
Loading…
↗
25
6R3−8259E−00
Switch assembly
Loading…
↗
26
662−82519−00
Wire, earth lead
Loading…
↗
27
6R3−82519−00
Wire, earth lead
Loading…
↗
30
6E5−85711−60
Mark, Caution
