225GETO (1999)
ELECTRICAL 1

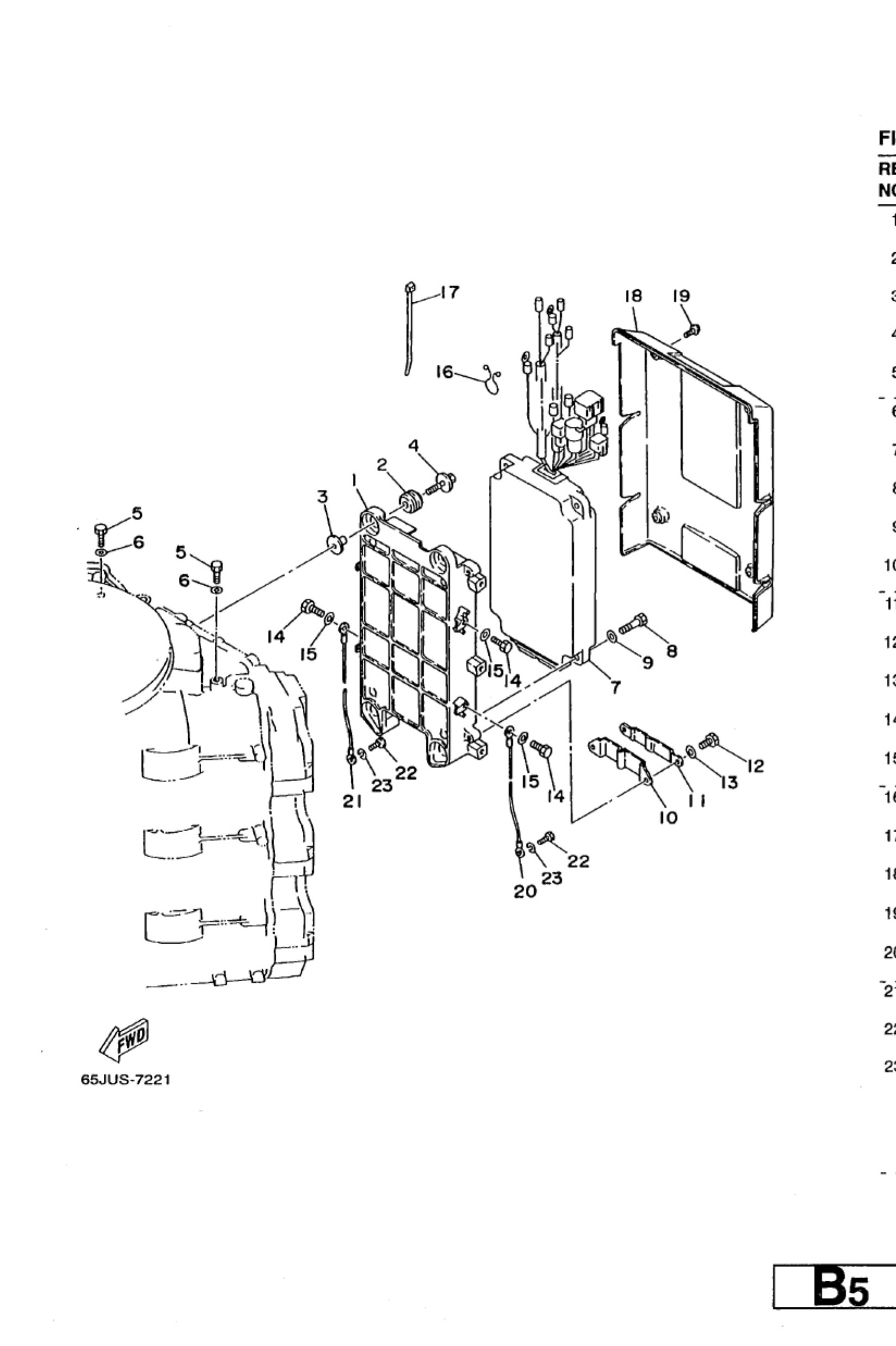

Diagram: ELECTRICAL 1
Parts List
Reference
Description
Price
1
COVER
-
Loading…
↗
1
61A856420194
Bracket
Loading…
↗
2
9048009M12
Grommet (6a0)
Loading…
↗
3
9038706M03
Collar (676)
Loading…
↗
4
9011906M28
Bolt, With Washer
Loading…
↗
5
9701306016
Bolt, hexagon deep recess
Loading…
↗
7
66K8554000
25- 7
Loading…
↗
8
9701306025
Bolt(62y)
Loading…
↗
9
9290306600
Washer, plain (646)
Loading…
↗
10
61A8554800
Holder
Loading…
↗
12
9709506016
Bolt, hexagon deep recess
Loading…
↗
13
9299506600
Washer, plain (646)
Loading…
↗
14
9701306014
Bolt(gj3)
Loading…
↗
15
9200306600
Washer, Plate
Loading…
↗
17
9046511M52
Clamp(6e7)
Loading…
↗
18
61A8553700
Cover
Loading…
↗
19
9015906M03
Screw (6g5)
Loading…
↗
20
61A8251900
Wire, Earth Lead
Loading…
↗
21
6G08251900
Wire, earth lead
Loading…
↗
22
9701306012
Bolt(gh1)
Loading…
↗
23
9290306100
Washer(6a1)
Loading…
↗
23
65JUs7221
Rondelle, Grower
