250AETO (2003)
ELECTRICAL 1

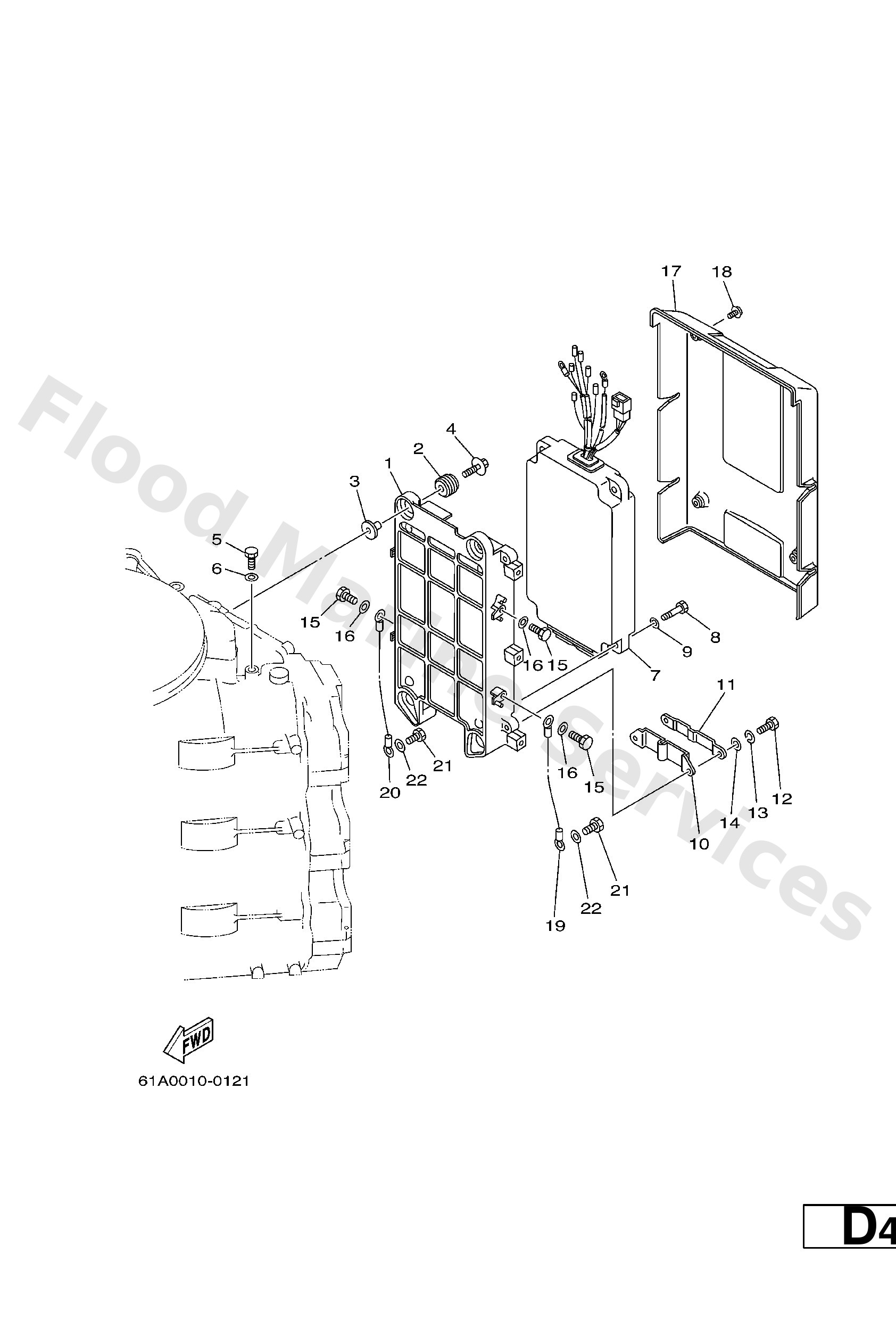

Diagram: ELECTRICAL 1
Parts List
Reference
Description
Price
1
61A−85542−01−94
Bracket
Loading…
↗
2
90480−09M12
Grommet (6a0)
Loading…
↗
3
90387−06M03
Collar (676)
Loading…
↗
4
90119−06M28
Bolt, With Washer
Loading…
↗
5
97013−06016
Bolt, hexagon deep recess
Loading…
↗
6
92903−06600
Washer, plain (646)
Loading…
↗
7
62J−85540−02
C.d.i. Unit assembly
Loading…
↗
8
97013−06025
Bolt(62y)
Loading…
↗
10
61A−85548−00
Holder
Loading…
↗
11
61A−85525−00
Cover
Loading…
↗
12
97095−06016
Bolt, hexagon deep recess
Loading…
↗
13
92995−06100
Washer(6a1)
Loading…
↗
14
92995−06600
Washer, plain (646)
Loading…
↗
15
97013−06014
Bolt(gj3)
Loading…
↗
17
61A−85537−00
Cover
Loading…
↗
18
90159−06M03
Screw (6g5)
Loading…
↗
19
61A−82519−00
13 −
Loading…
↗
20
6G0−82519−00
Wire, earth lead
Loading…
↗
21
97095−06012
Bolt(gh1)
Loading…
↗
