250GETO (2008)
ELECTRICAL 1

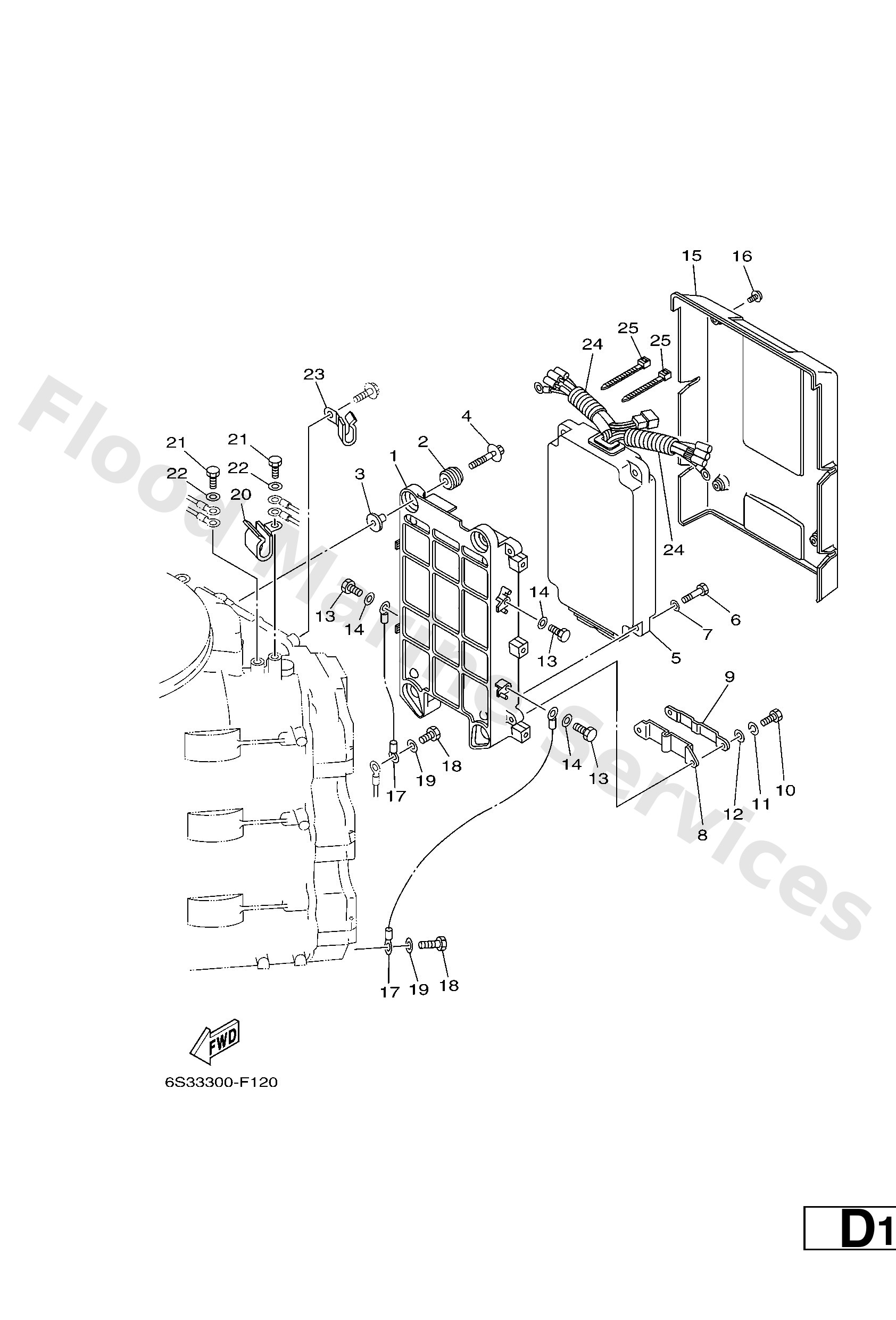

Diagram: ELECTRICAL 1
Parts List
Reference
Description
Price
1
61A855420194
Bracket
Loading…
↗
2
9048009M12
Grommet (6a0)
Loading…
↗
3
9038706M03
Collar (676)
Loading…
↗
4
9011906M28
Bolt, With Washer
Loading…
↗
5
6S38554000
C.d.i. unit assembly
Loading…
↗
6
9701306025
Bolt(62y)
Loading…
↗
7
9290306600
Washer, plain (646)
Loading…
↗
8
61A8554800
Holder
Loading…
↗
9
61A8552500
Cover
Loading…
↗
10
9709506016
Bolt, hexagon deep recess
Loading…
↗
11
9299506100
Washer(6a1)
Loading…
↗
12
9299506600
Washer, plain (646)
Loading…
↗
13
9701306014
Bolt(gj3)
Loading…
↗
15
61A8553700
Cover
Loading…
↗
16
9015906M03
Screw (6g5)
Loading…
↗
17
6G08251900
Wire, earth lead
Loading…
↗
18
9709506012
Bolt(gh1)
Loading…
↗
20
9046208053
Clamp
Loading…
↗
21
9709506014
Bolt(gj3)
Loading…
↗
23
9046508021
Clamp
Loading…
↗
24
9044614M88
Hose
Loading…
↗
25
9046511M10
Clamp
Loading…
↗
