25BMH (2003)
ELECTRICAL 1

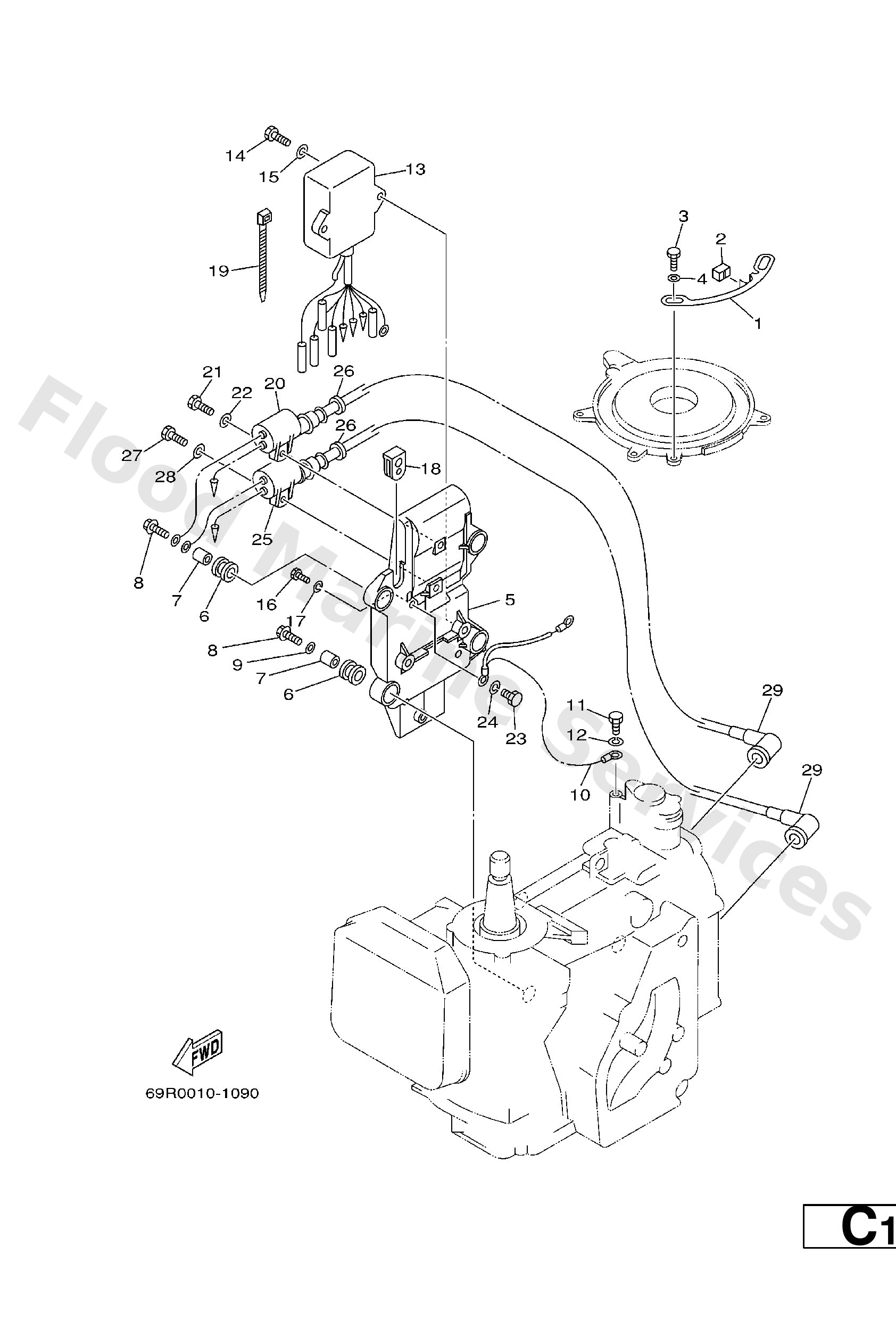

Diagram: ELECTRICAL 1
Parts List
Reference
Description
Price
1
61N−41615−00
Stopper, magneto base
Loading…
↗
2
61N−44194−01
Cap
Loading…
↗
3
97095−06010
Bolt
Loading…
↗
4
92995−06600
Washer, plain (646)
Loading…
↗
5
61N−85542−00−94
Bracket
Loading…
↗
6
61N−82317−00
Damper, ignition coil
Loading…
↗
7
624−42542−00
Collar
Loading…
↗
8
90119−06M95
Bolt, with washer
Loading…
↗
9
90201−06M30
Washer, plate (6a1)
Loading…
↗
10
61N−82519−01
Wire, earth lead
Loading…
↗
11
97090−06012
Bolt(gh1)
Loading…
↗
12
92990−06100
Washer(6a1)
Loading…
↗
13
61N−85540−13
C.d.i. unit assembly
Loading…
↗
14
97095−06020
Bolt(7u8)
Loading…
↗
18
6H3−81922−00
Grommet
Loading…
↗
19
90465−13M11
Clamp (6e5)
Loading…
↗
20
6H5−85570−00
Ignition coil assembly
Loading…
↗
25
61N−85570−00
Ignition coil assembly
Loading…
↗
26
90480−25161
Grommet(656)
Loading…
↗
29
6G1−82370−21
Plug cap assembly
Loading…
↗
