30DMHO (2003)
ELECTRICAL 1

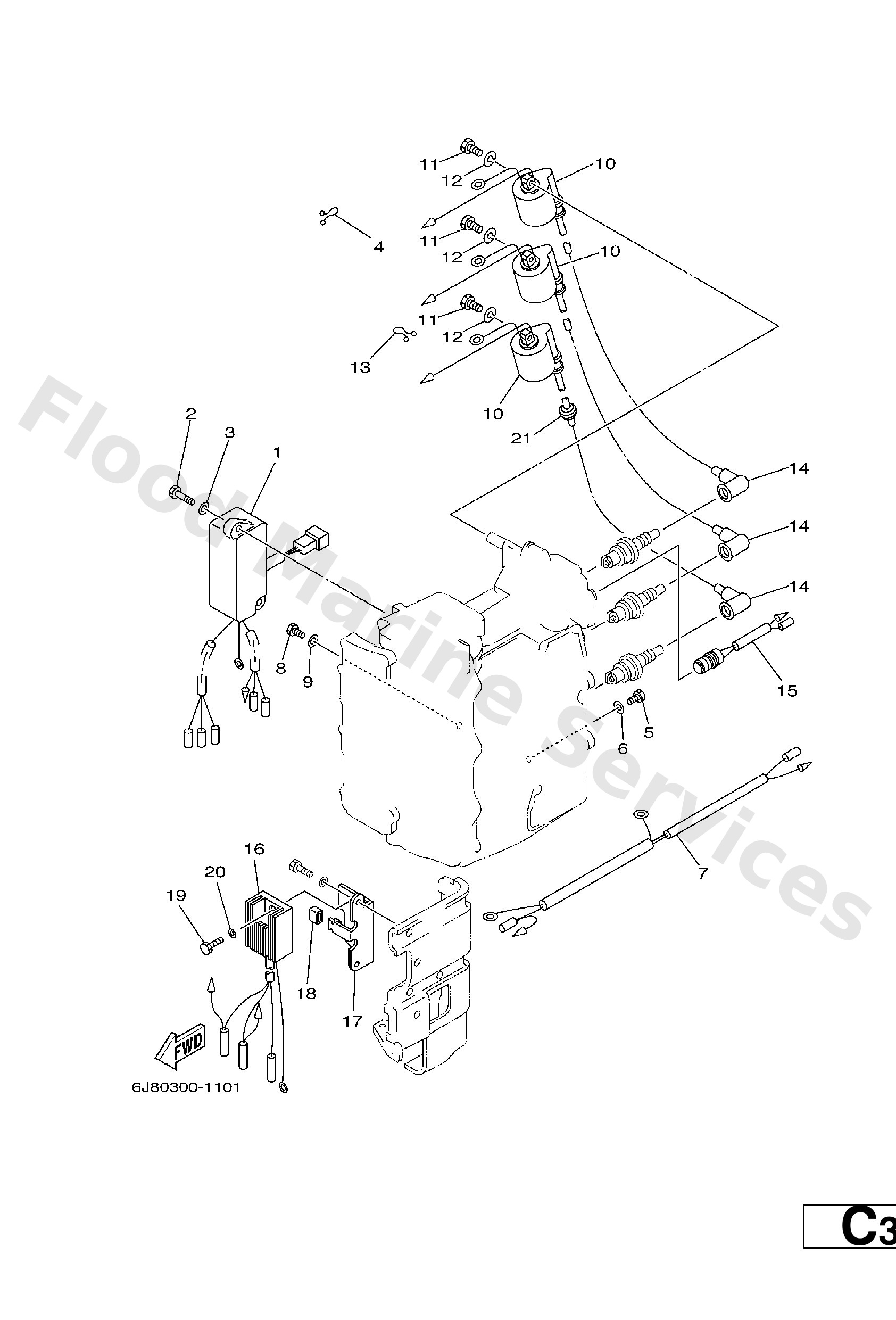

Diagram: ELECTRICAL 1
Parts List
Reference
Description
Price
1
6J8−85540−H2
C.d.i. unit assembly
Loading…
↗
2
97095−06025
Bolt
Loading…
↗
3
92995−06600
Washer, plain (646)
Loading…
↗
4
90464−15M11
Clamp (3y2)
Loading…
↗
5
97095−06012
Bolt(gh1)
Loading…
↗
7
6J8−82531−00
Wire, lead
Loading…
↗
10
6J8−85570−21
Ignition coil assembly
Loading…
↗
11
97095−06020
Bolt(7u8)
Loading…
↗
12
92995−06100
Washer(6a1)
Loading…
↗
13
90464−05M16
Clamp(6j8)
Loading…
↗
14
6G1−82370−21
Plug cap assembly
Loading…
↗
15
689−82560−00
Thermo switch assembly
Loading…
↗
16
6J8−81960−00
Rectifier & regulator assembly
Loading…
↗
17
6J8−81975−00
Plate, rectifier fitting
Loading…
↗
18
689−44194−00
Cap
Loading…
↗
21
90480−25161
Grommet(656)
Loading…
↗
