40VMH (2003)
ELECTRICAL 1

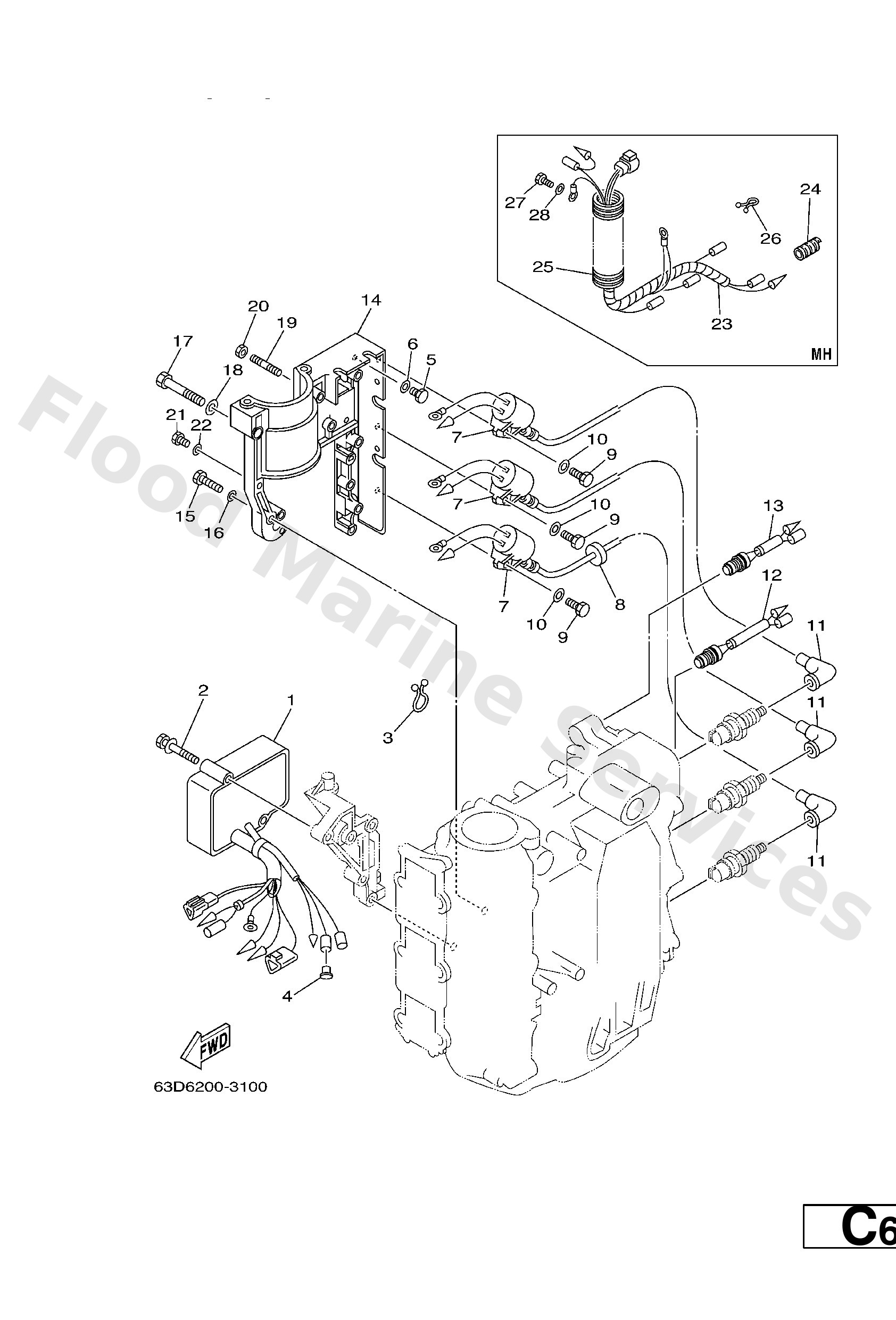

Diagram: ELECTRICAL 1
Parts List
Reference
Description
Price
1
63D−85540−03
C.d.i. unit assembly
Loading…
↗
2
90119−06M51
Bolt, with washer(6h4)
Loading…
↗
3
90464−15M11
Clamp (3y2)
Loading…
↗
4
703−82119−00
Cover, lead wire
Loading…
↗
5
97095−06014
Bolt(gj3)
Loading…
↗
6
92995−06600
Washer, plain (646)
Loading…
↗
7
6H5−85570−00
Ignition coil assembly
Loading…
↗
8
90480−25161
Grommet(656)
Loading…
↗
9
97095−06020
Bolt(7u8)
Loading…
↗
11
6G1−82370−21
50H−FOR CARIB
Plug cap assembly
Loading…
↗
11
663−82370−01
Plug cap assembly
Loading…
↗
12
689−82560−00
Thermo switch assembly
Loading…
↗
13
6H4−82560−00
Thermo switch assembly
Loading…
↗
14
6H4−81822−02−98
Bracket, starting motor
Loading…
↗
15
97095−06030
Bolt(jf7)
Loading…
↗
17
97013−08050
Bolt, hexagon
Loading…
↗
18
92903−08600
Washer, plain (663)
Loading…
↗
19
95670−06640
Bolt, stud(6h4)
Loading…
↗
20
90179−06M24
Nut(6j8)
Loading…
↗
23
63D−82531−00
Wire, lead
Loading…
↗
24
90446−10M02
Tube (6e5)
Loading…
↗
25
6G1−83557−00
Tube
Loading…
↗
26
90464−05M16
Clamp(6j8)
Loading…
↗
