40VMHO (2006)
ELECTRICAL 1

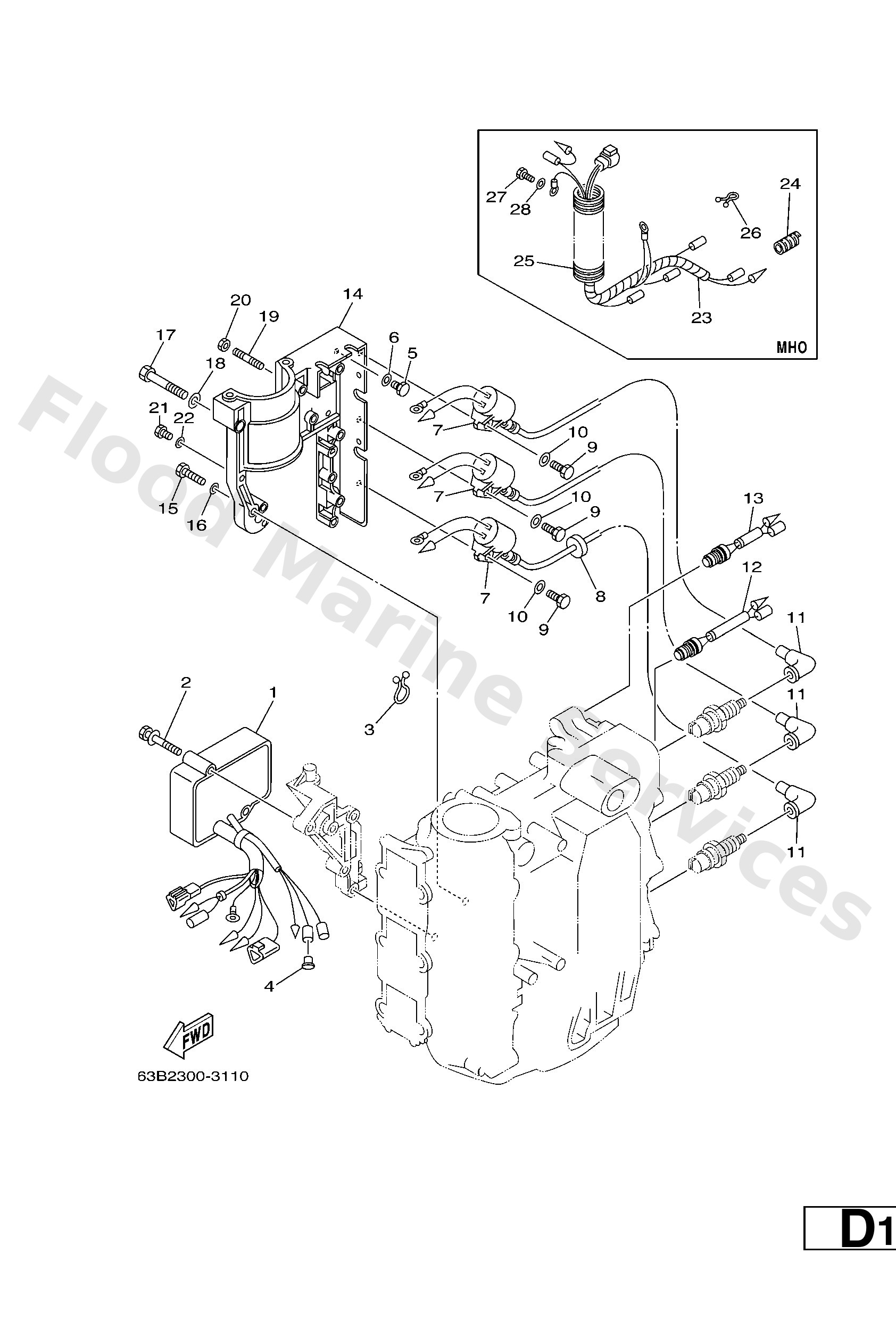

Diagram: ELECTRICAL 1
Parts List
Reference
Description
Price
1
63D8554003
C.d.i. unit assembly
Loading…
↗
2
9011906M51
Bolt, with washer(6h4)
Loading…
↗
3
9046415M11
Clamp (3y2)
Loading…
↗
4
7038211900
Cover, lead wire
Loading…
↗
5
9709506014
Bolt(gj3)
Loading…
↗
6
9299506600
Washer, plain (646)
Loading…
↗
7
6H58557000
Ignition coil assembly
Loading…
↗
8
9048025161
Grommet(656)
Loading…
↗
9
9709506020
Bolt(7u8)
Loading…
↗
11
6G18237021
Plug cap assembly
Loading…
↗
12
6898256000
Thermo switch assembly
Loading…
↗
13
6H48256000
Thermo switch assembly
Loading…
↗
14
6H4818220298
Bracket, starting motor
Loading…
↗
15
9709506030
Bolt(jf7)
Loading…
↗
17
9701308050
Bolt, hexagon
Loading…
↗
18
9290308600
Washer, plain (663)
Loading…
↗
19
9567006640
Bolt, stud(6h4)
Loading…
↗
20
9017906M24
Nut(6j8)
Loading…
↗
23
63D8253100
Wire, lead
Loading…
↗
24
9044610M02
Tube (6e5)
Loading…
↗
25
6G18355700
Tube
Loading…
↗
26
9046405M16
Clamp(6j8)
Loading…
↗
