40XWT (2003)
ELECTRICAL 1

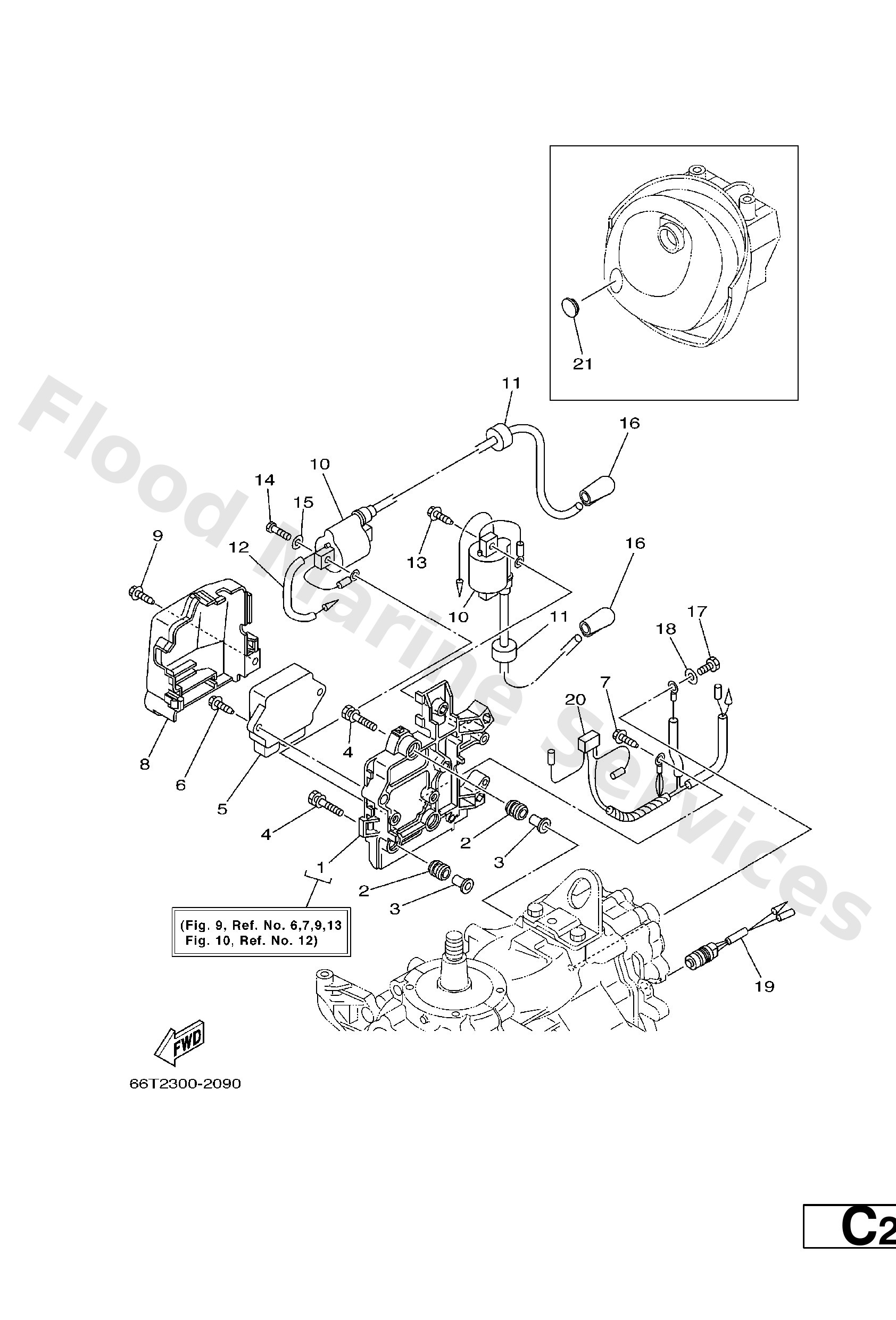

Diagram: ELECTRICAL 1
Parts List
Reference
Description
Price
1
66T−8554B−01−94
Bracket
Loading…
↗
2
6A0−82317−00
Damper, ignition coil
Loading…
↗
3
624−42542−00
Collar
Loading…
↗
4
90119−06M65
Bolt, with washer
Loading…
↗
5
66T−85540−00
C.d.i. unit assembly
Loading…
↗
6
90109−06M81
Bolt
Loading…
↗
7
90109−06M80
Bolt
Loading…
↗
8
66T−81916−01
Cover, terminal
Loading…
↗
10
66T−85570−00
Ignition coil assembly
Loading…
↗
11
90480−25161
Grommet(656)
Loading…
↗
12
90446−03MA3
Hose
Loading…
↗
14
97095−06025
Bolt
Loading…
↗
15
92995−06600
Washer, plain (646)
Loading…
↗
16
6E3−82370−21
Plug cap assembly
Loading…
↗
17
97095−06012
Bolt(gh1)
Loading…
↗
19
688−82560−10
Thermo switch assembly
Loading…
↗
20
66T−82519−00
Wire, earth lead
Loading…
↗
21
6G1−42725−00
Grommet
Loading…
↗
