F100BET (2003)
ELECTRICAL 1

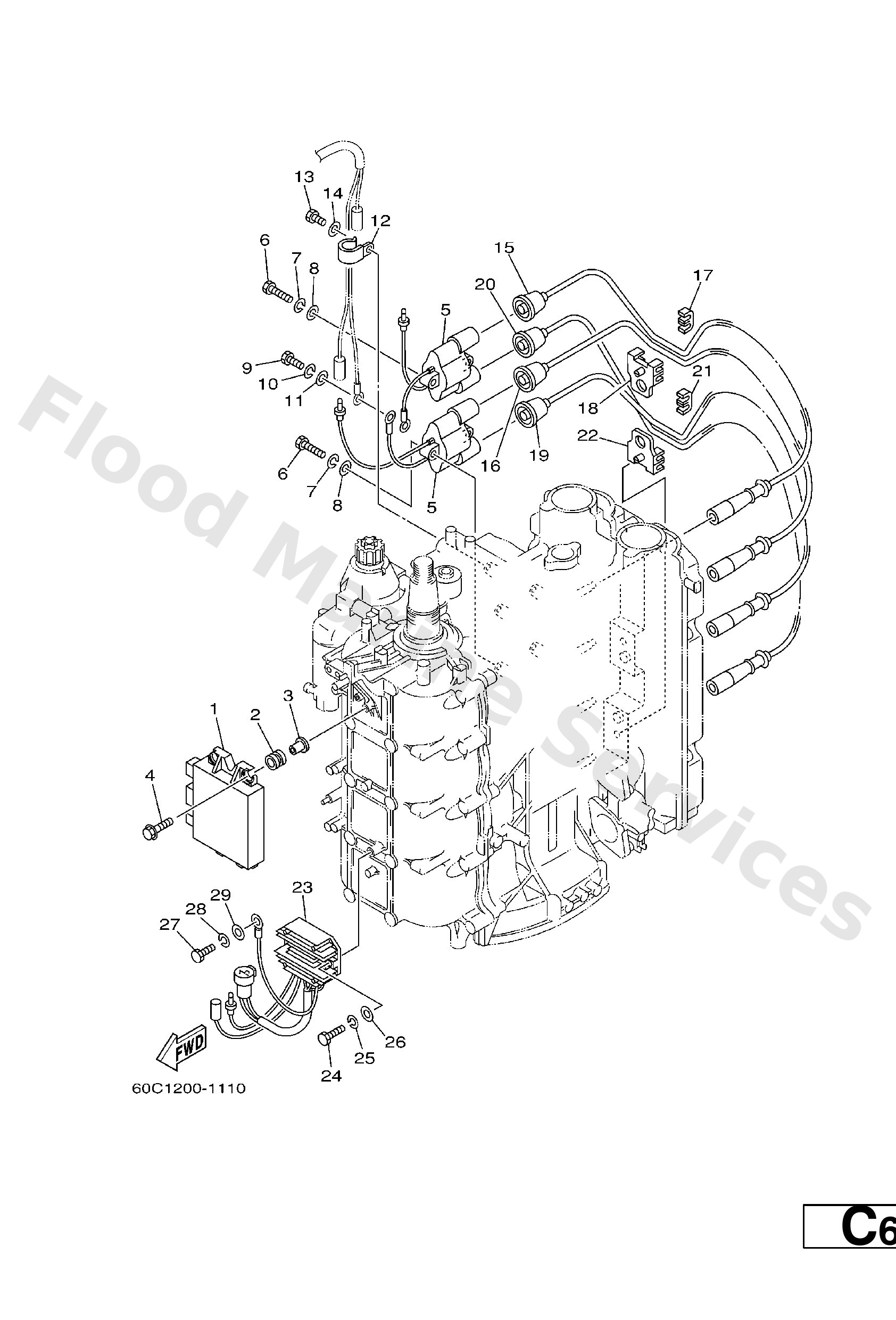

Diagram: ELECTRICAL 1
Parts List
Reference
Description
Price
1
67F−85540−02
C.d.i. unit assembly
Loading…
↗
2
68V−82317−00
Damper, ignition coil
Loading…
↗
3
624−42542−00
Collar
Loading…
↗
4
90119−06M59
Bolt, with washer
Loading…
↗
5
67F−85570−00
Ignition coil assembly
Loading…
↗
6
97095−06030
Bolt(jf7)
Loading…
↗
7
92995−06100
Washer(6a1)
Loading…
↗
8
92995−06600
Washer, plain (646)
Loading…
↗
9
97095−06020
Bolt(7u8)
Loading…
↗
12
90465−06M86
Clamp
Loading…
↗
13
97095−06012
Bolt(gh1)
Loading…
↗
15
67F−82341−00
#1
Cord, high tension 1
Loading…
↗
16
67F−82342−00
#2
Cord, high tension 2
Loading…
↗
17
67F−82361−00
Clamp, cord
Loading…
↗
18
67F−82362−00
Clamp, cord 2
Loading…
↗
19
67F−82343−00
#3
Cord, high tension 3
Loading…
↗
20
67F−82344−00
#4
Cord, high tension 4
Loading…
↗
23
67F−81960−10
Go to P/N ) PE0-OM-060004
Rectifier & Regulator assembly
Loading…
↗
24
97095−06025
Bolt
Loading…
↗
?
147
-
Loading…
↗
?
146
90465-11M10
Loading…
↗
?
145
60C-8431R-00
Loading…
↗
?
143
60C-82586-00
Loading…
↗
?
1311
90465-11M10
Loading…
↗
?
1238
-
Loading…
↗
?
1234
60C-81916-00
Loading…
↗
?
67F8259004
B *Part number revision
Wire harness assembly
Loading…
↗
?
1123
67F-81960-10
Loading…
↗
