F100BET (2012)
ELECTRICAL 1

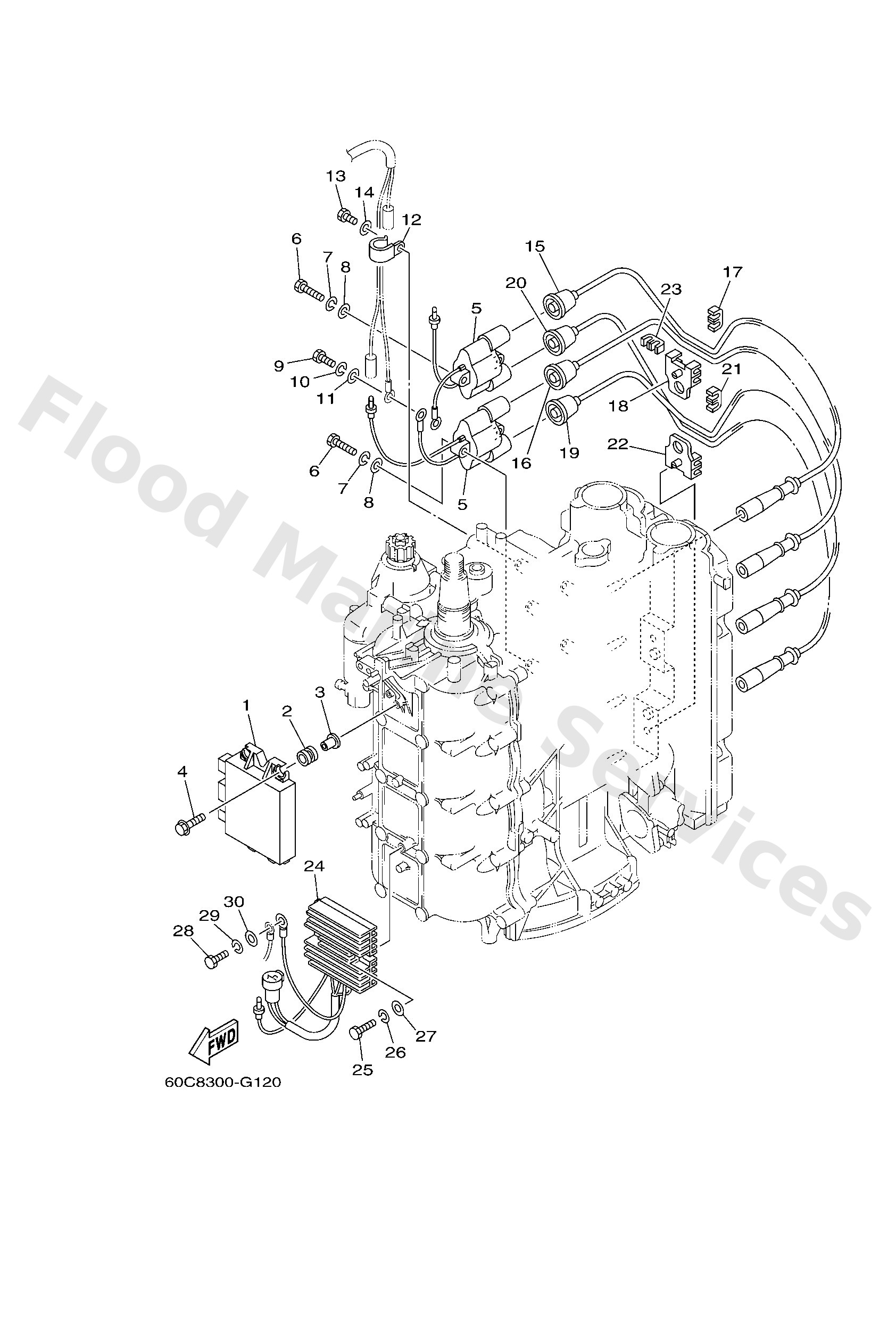

Diagram: ELECTRICAL 1
Parts List
Reference
Description
Price
1
67F8554003
C.d.i. unit assembly
Loading…
↗
2
68V8231700
Damper, ignition coil
Loading…
↗
3
9038706119
Collar
Loading…
↗
4
9011906M59
Bolt, with washer
Loading…
↗
5
67F8557000
Ignition coil assembly
Loading…
↗
6
9709506030
Bolt(jf7)
Loading…
↗
7
9299506100
Washer(6a1)
Loading…
↗
8
9299506600
Washer, plain (646)
Loading…
↗
9
9709506020
Bolt(7u8)
Loading…
↗
12
9046506M86
Clamp
Loading…
↗
13
9709506012
Bolt(gh1)
Loading…
↗
15
67F8234100
#1
Cord, high tension 1
Loading…
↗
16
67F8234200
#2
Cord, high tension 2
Loading…
↗
17
67F8236100
Clamp, cord
Loading…
↗
18
67F8236200
Clamp, cord 2
Loading…
↗
19
67F8234300
#3
Cord, high tension 3
Loading…
↗
20
67F8234400
#4
Cord, high tension 4
Loading…
↗
24
67F8196012
Rectifier & regulator assembly
Loading…
↗
25
9709506025
Bolt
Loading…
↗
28
9709506016
Bolt, hexagon deep recess
Loading…
↗
