F115BET (2014)
ELECTRICAL 1

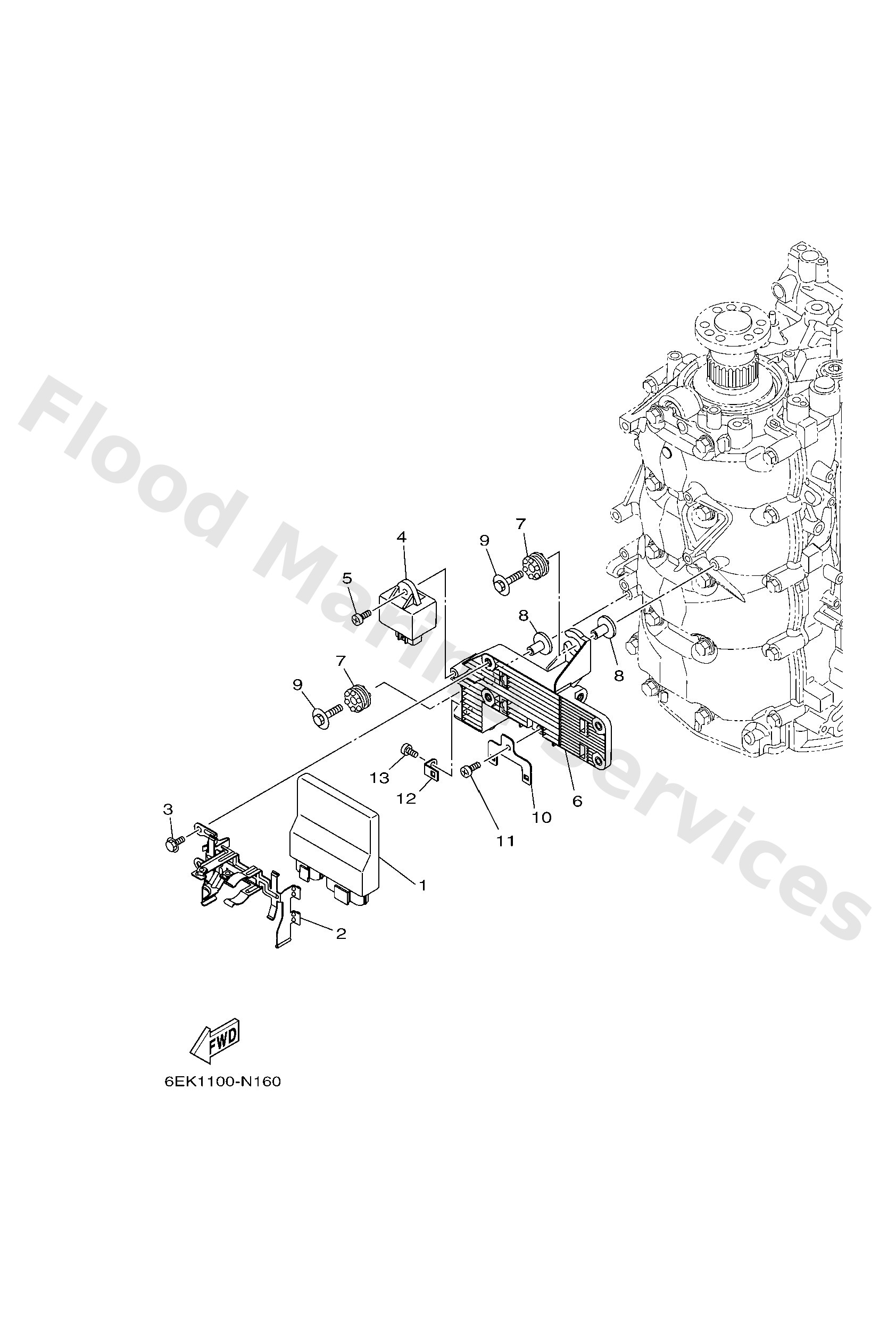

Diagram: ELECTRICAL 1
Parts List
Reference
Description
Price
1
6EK8591A00
Engine control unit assembly
Loading…
↗
2
6EK8253C00
Spring, plate lock
Loading…
↗
3
9589506010
Bolt, flange(7ht)
Loading…
↗
4
60E8195000
Relay assembly
Loading…
↗
5
9778060620
Screw, tapping(6k8)
Loading…
↗
6
6EK8194800
Bracket
Loading…
↗
7
68F8551601
Spacer
Loading…
↗
8
9038706176
Collar
Loading…
↗
9
68F8511900
Bolt
Loading…
↗
10
6C58257V00
Plate, connector
Loading…
↗
12
68V8554800
Holder
Loading…
↗
