F130AET (2015)
ELECTRICAL 1

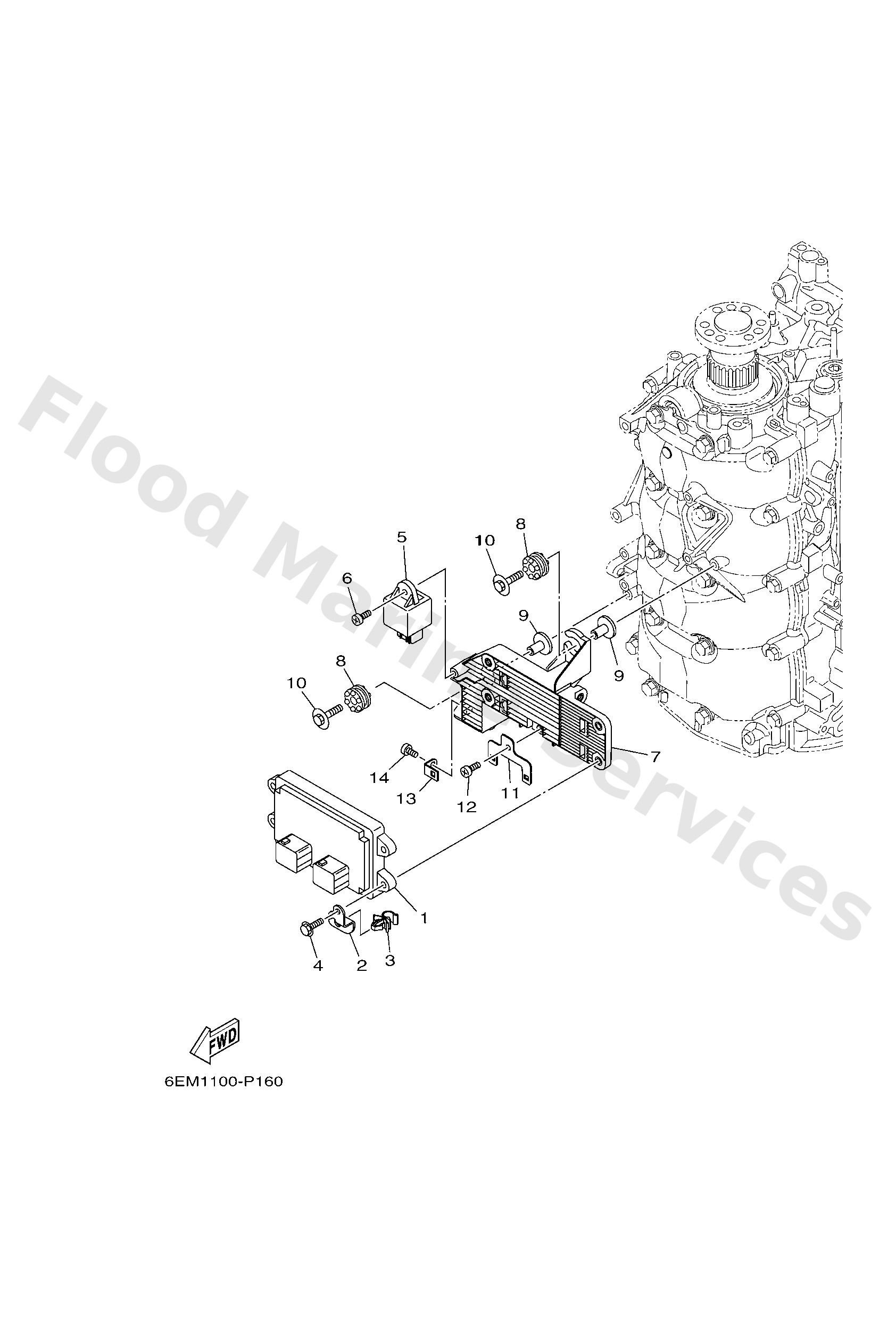

Diagram: ELECTRICAL 1
Parts List
Reference
Description
Price
1
6EM8591A00
Engine control unit assembly
Loading…
↗
2
6EM8239800
Plate 3
Loading…
↗
3
9046410M32
Clamp(6m7)
Loading…
↗
4
9759506520
Bolt(7u8)
Loading…
↗
5
68V8195000
Relay assembly
Loading…
↗
6
9778060620
Screw, tapping(6k8)
Loading…
↗
7
6EM8194800
Bracket
Loading…
↗
8
60V8556400
Grommet
Loading…
↗
9
9038706176
Collar
Loading…
↗
10
68F8511900
Bolt
Loading…
↗
11
6C58257V00
Plate, connector
Loading…
↗
13
68V8554800
Holder
Loading…
↗
