F150DET (2019)
ELECTRICAL 1

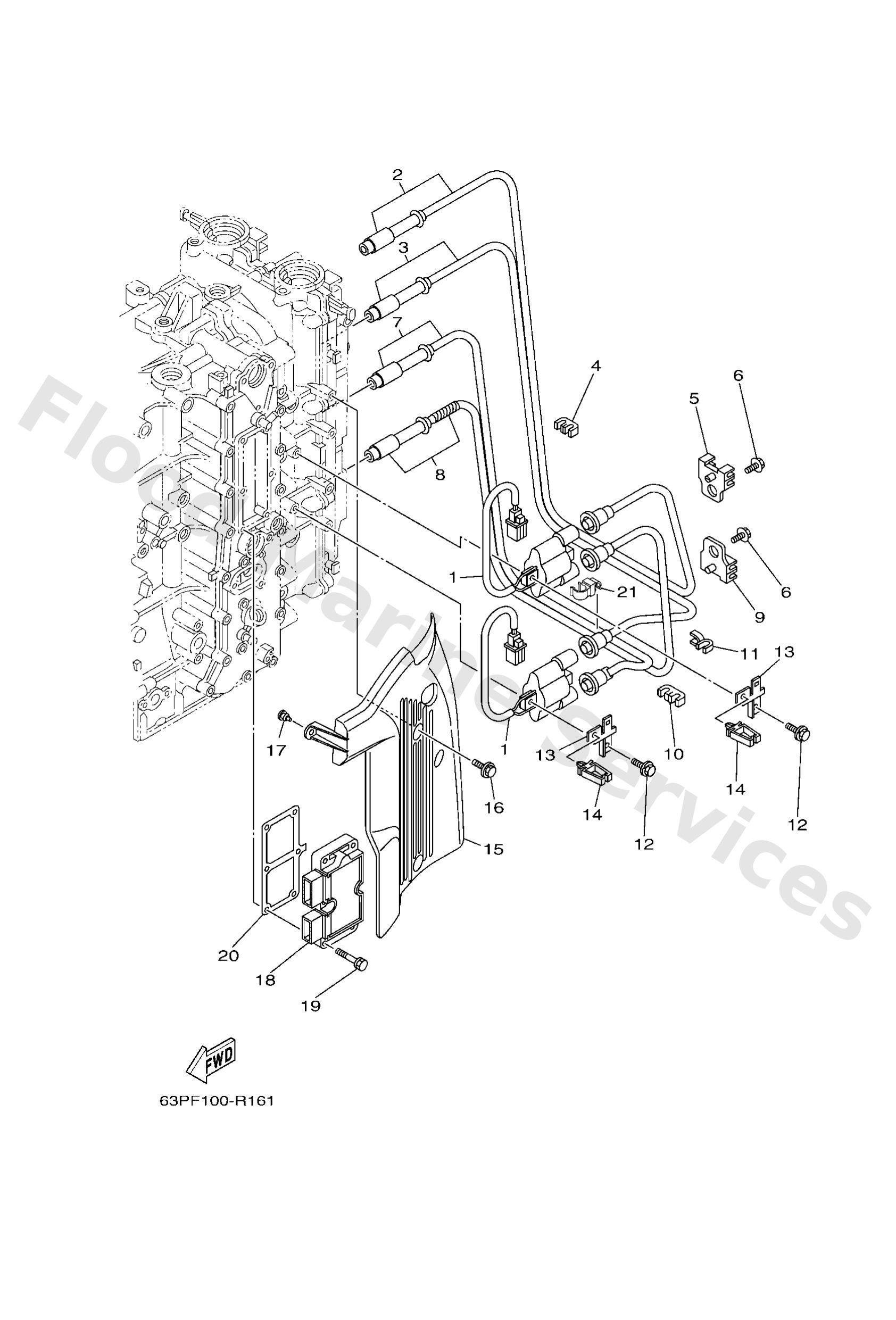

Diagram: ELECTRICAL 1
Parts List
Reference
Description
Price
1
63P8231001
Ignition coil assembly
Loading…
↗
2
63PW823A00
Cord, high tension 1
Loading…
↗
3
63PW823B00
Cord, high tension 2
Loading…
↗
4
67F8236100
Clamp, cord
Loading…
↗
5
67F8236200
Clamp, cord 2
Loading…
↗
6
9011906M09
Bolt, with washer
Loading…
↗
7
63PW823C00
Cord, high tension 3
Loading…
↗
8
63PW823D00
Cord, high tension 4
Loading…
↗
11
9046407M41
Clamp(62y)
Loading…
↗
12
97E9506625
Bolt, hexagon w/w deep recess
Loading…
↗
13
63P8238800
Plate
Loading…
↗
14
9046405141
Clamp(7ly)
Loading…
↗
15
63P8231400
Cover, ignition coil
Loading…
↗
16
95D9506020
Bolt, flange deep recess
Loading…
↗
17
9048006M19
Grommet (6e3)
Loading…
↗
18
63P8196002
Rectifier & regulator assembly
Loading…
↗
19
9011906MA4
Bolt, with washer
Loading…
↗
20
63P8197500
Plate, rectifier fitting
Loading…
↗
21
9046412017
Clamp
Loading…
↗
