F15AEP (2004)
ELECTRICAL 1

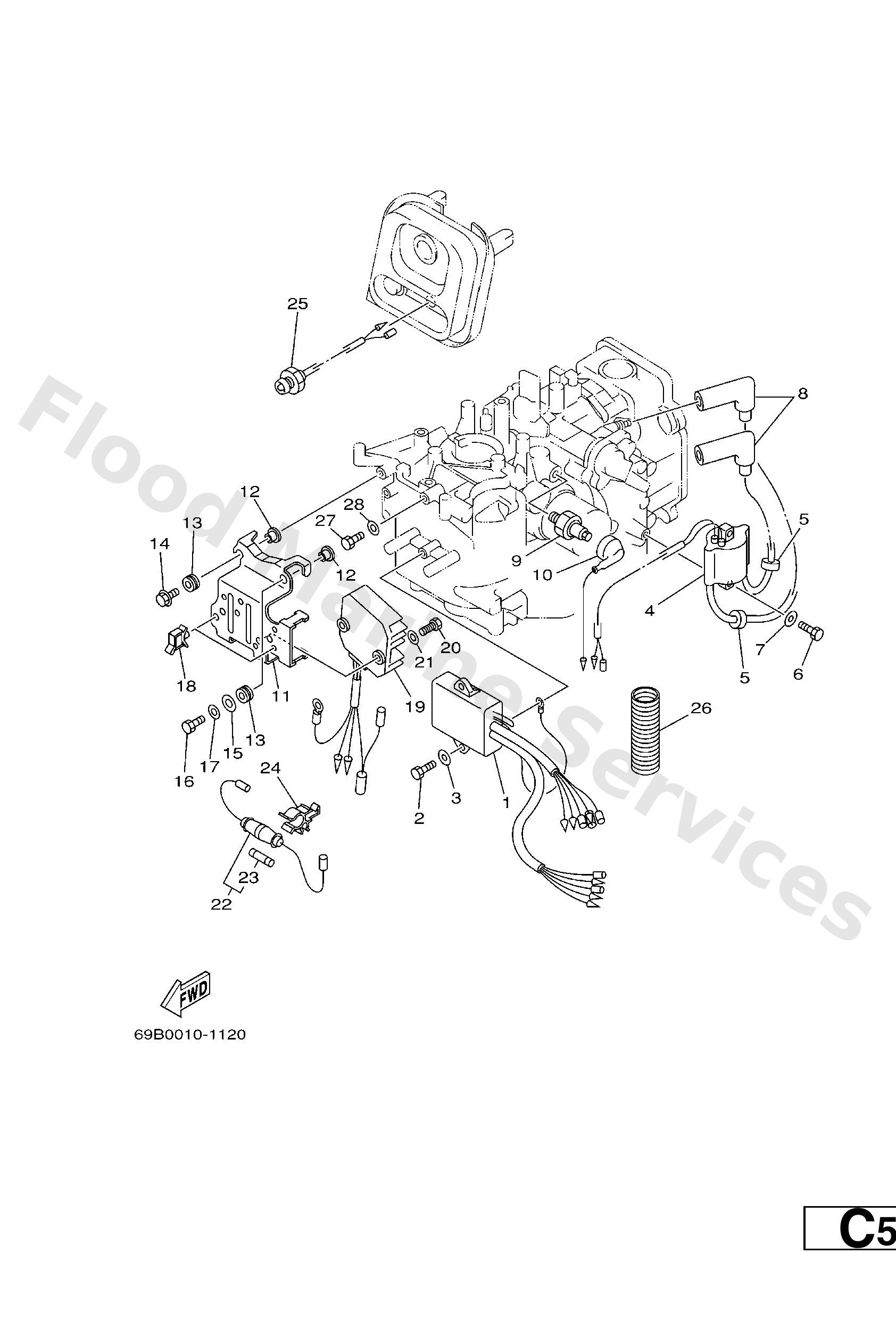

Diagram: ELECTRICAL 1
Parts List
Reference
Description
Price
1
66M8554010
C.d.i. unit assembly
Loading…
↗
2
9709506020
Bolt(7u8)
Loading…
↗
3
9299506600
Washer, plain (646)
Loading…
↗
4
66M8557000
Ignition coil assembly
Loading…
↗
5
9048025161
Grommet(656)
Loading…
↗
8
6G88237030
Plug cap assembly
Loading…
↗
9
62Y8250410
Oil pressure switch assembly
Loading…
↗
10
66M8212710
Wire, lead 2
Loading…
↗
11
69A8554210
Bracket
Loading…
↗
12
9038706M05
Collar(6h4)
Loading…
↗
13
9048013M24
Grommet (6e9)
Loading…
↗
14
9589506020
Bolt, flange(jk3)
Loading…
↗
15
9020106M05
Washer, plate(6e3)
Loading…
↗
16
9709506025
Bolt
Loading…
↗
18
9046409M13
Clamp (6h1)
Loading…
↗
19
6G881960A1
Rectifier & regulator assembly
Loading…
↗
20
9709506016
Bolt, hexagon deep recess
Loading…
↗
22
6G88215000
Fuse holder assembly
Loading…
↗
23
6638215100
Fuse
Loading…
↗
24
6G58215200
Holder, fuse
Loading…
↗
25
65W8541001
Emergency signal light assembly
Loading…
↗
26
6H18355700
Tube
Loading…
↗
