F175A (2022)
ELECTRICAL 1

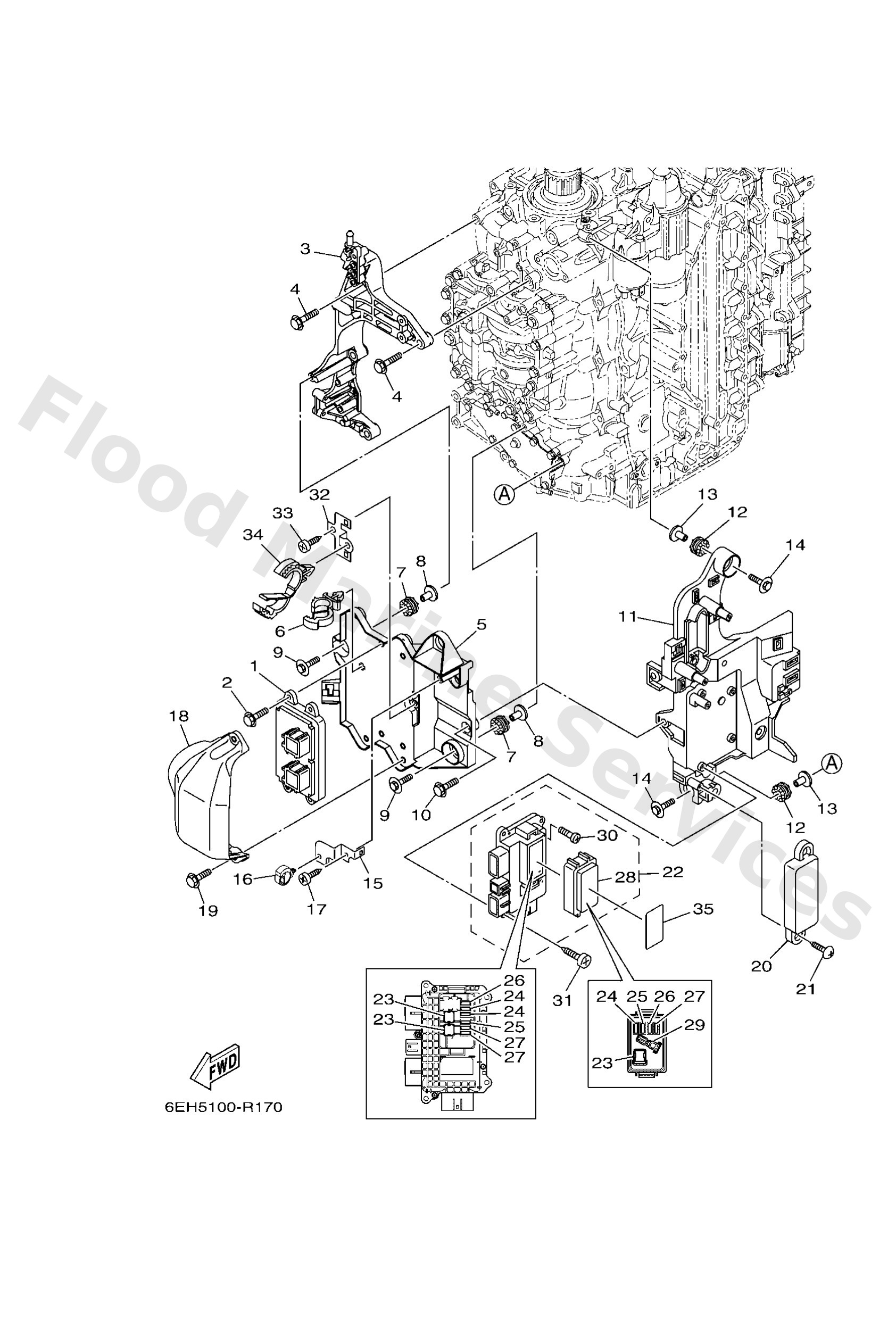

Diagram: ELECTRICAL 1
Parts List
Reference
Description
Price
1
6FA8591A21
Engine control unit assembly
Loading…
↗
2
95D9506020
Bolt, flange deep recess
Loading…
↗
3
6DA8599100
Bracket, unit
Loading…
↗
4
95D7508035
Bolt, flange deep recess
Loading…
↗
5
6DA8194801
Bracket
Loading…
↗
6
9046412183
Clamp(jn2)
Loading…
↗
7
68F8551601
Spacer
Loading…
↗
8
9038706176
Collar
Loading…
↗
9
68F8511900
Bolt
Loading…
↗
10
95D9506016
Bolt, flange deep recess
Loading…
↗
11
6DA8195210
Holder, relay
Loading…
↗
15
6DA8554810
Holder
Loading…
↗
16
9046420181
Clamp(4ap)
Loading…
↗
17
9778060620
Screw, tapping(6k8)
Loading…
↗
18
6DA8163901
Cover
Loading…
↗
20
6DA8252U01
Cover
Loading…
↗
21
9016905M00
Screw truss head tapping
Loading…
↗
22
6DA8217011
Fuse box assembly
Loading…
↗
23
6CB8215141
Fuse (60a)
Loading…
↗
24
6CB8215100
Fuse (10a)
Loading…
↗
25
6CB8215110
Fuse (15a)
Loading…
↗
26
6CB8215120
Fuse (20a)
Loading…
↗
27
6CB8215130
Fuse (30a)
Loading…
↗
28
6CB8554410
Cover
Loading…
↗
29
6CB2812A00
Puller, fuse
Loading…
↗
30
6P28211300
Screw (m3)
Loading…
↗
31
9778050620
Screw, tapping
Loading…
↗
32
6DA8257V00
Plate, connector
Loading…
↗
34
9046432002
Clamp
Loading…
↗
35
6DA8191911
Graphic, regulator
Loading…
↗
