F200FET (2013)
ELECTRICAL 1

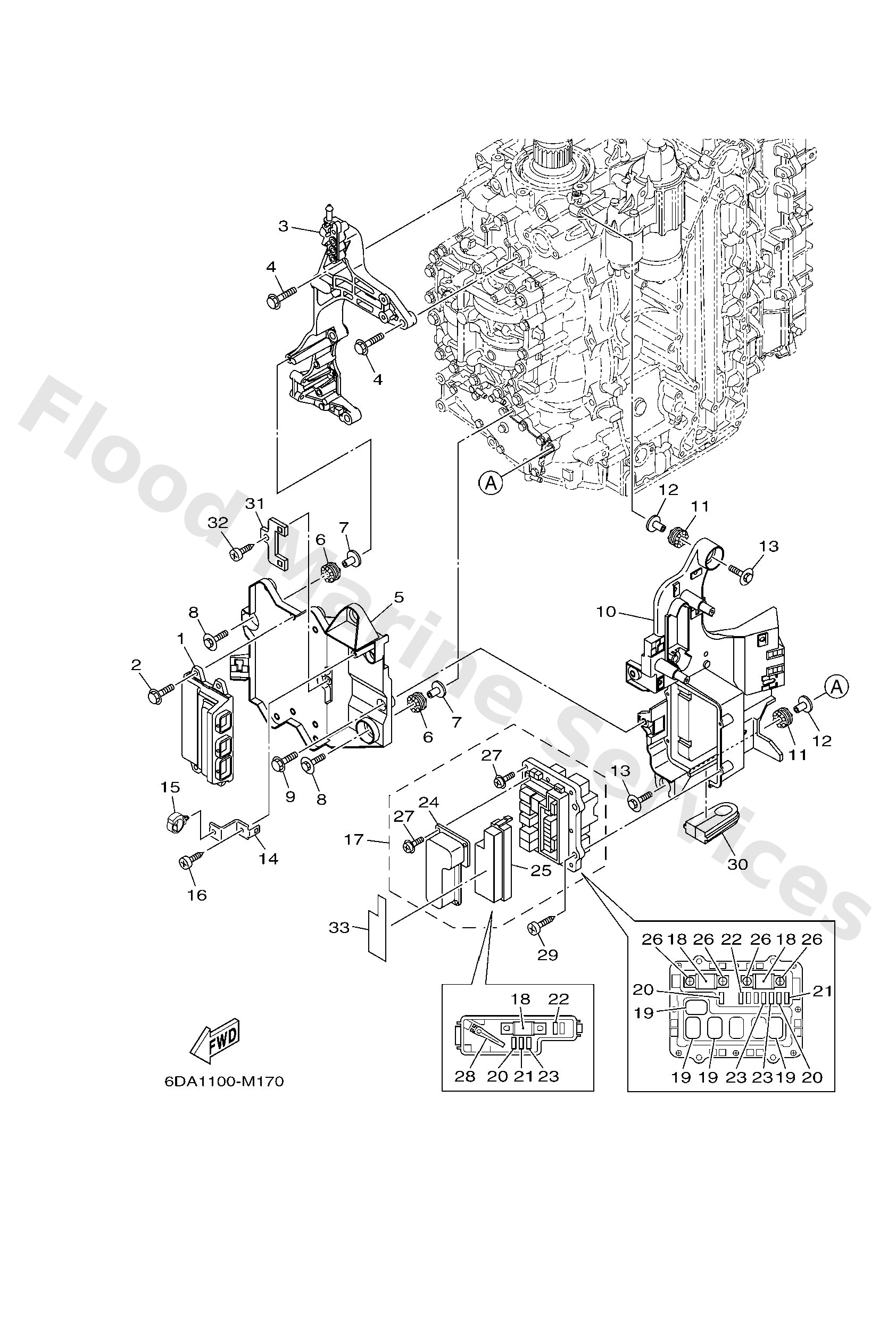

Diagram: ELECTRICAL 1
Parts List
Reference
Description
Price
1
6DA8591A00
Engine control unit assembly
Loading…
↗
2
9589506020
Bolt, flange(jk3)
Loading…
↗
3
6DA8599100
Bracket, unit
Loading…
↗
4
9587508035
Bolt, flange
Loading…
↗
5
6DA8194800
Bracket
Loading…
↗
6
68F8551601
Spacer
Loading…
↗
7
9038706176
Collar
Loading…
↗
8
68F8511900
Bolt
Loading…
↗
9
9589506016
Bolt, flange deep recess
Loading…
↗
10
6DA8195200
Holder, relay
Loading…
↗
14
6DA8554800
Holder
Loading…
↗
15
9046420181
Clamp(4ap)
Loading…
↗
16
9778060620
Screw, tapping(6k8)
Loading…
↗
17
6DA8217000
Fuse box assembly
Loading…
↗
18
6P28215100
Fuse (60a)
Loading…
↗
19
68F8195A00
Relay assembly
Loading…
↗
20
67F8215140
Fuse (10a)
Loading…
↗
21
67F8215150
Fuse (15a)
Loading…
↗
22
67F8215100
Fuse
Loading…
↗
23
67F8215110
Fuse
Loading…
↗
24
6CB8163900
Cover
Loading…
↗
25
6CB8554400
Case
Loading…
↗
26
68F8284600
Screw, pan head (m5)
Loading…
↗
27
6P28211300
Screw (m3)
Loading…
↗
28
67F2812A00
Puller, fuse
Loading…
↗
29
9778050620
Screw, tapping
Loading…
↗
30
6DA8133600
Grommet
Loading…
↗
31
6C58257V00
Plate, connector
Loading…
↗
33
6DA8191900
Graphic, regulator
Loading…
↗
