F225AET (2004)
ELECTRICAL 1

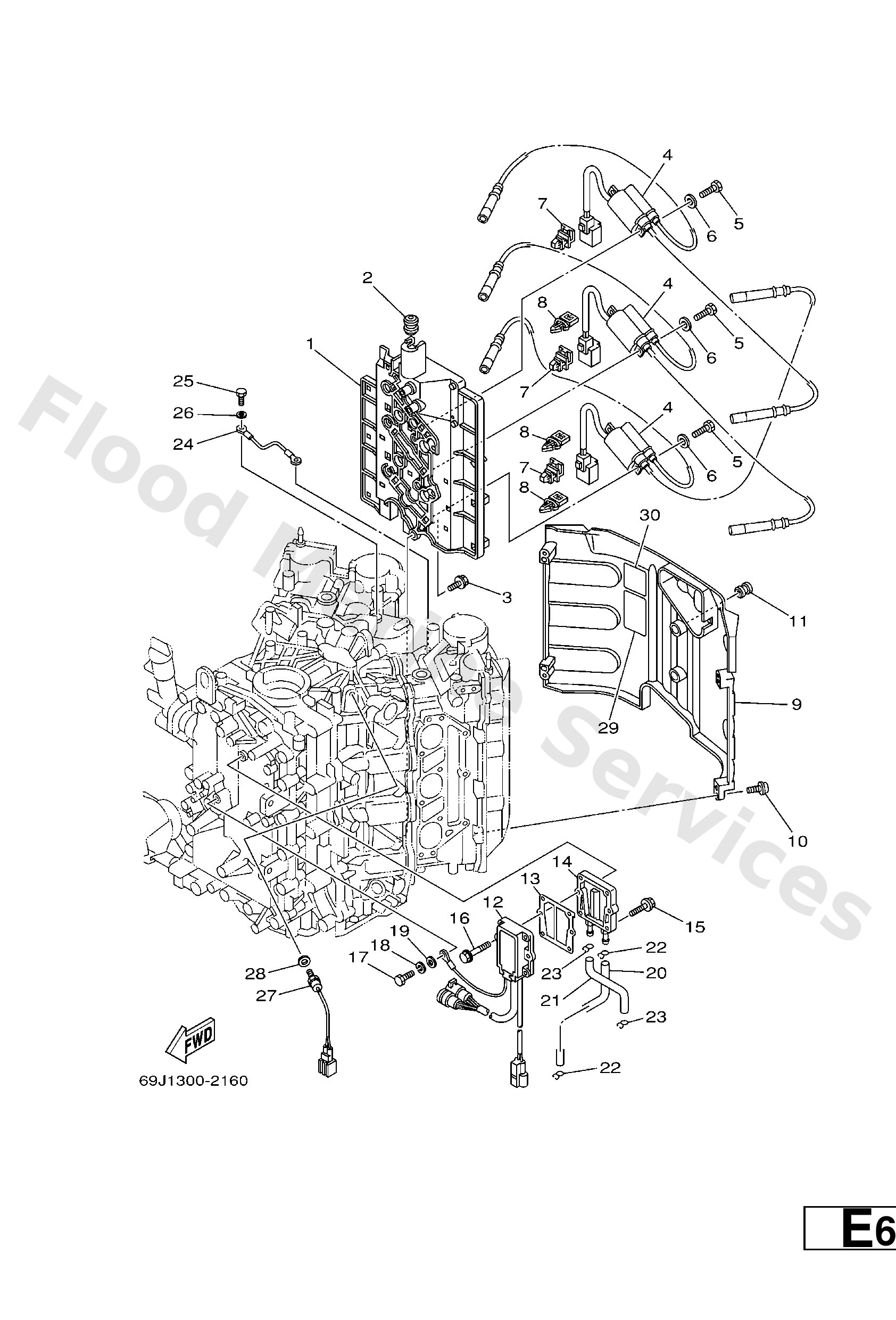

Diagram: ELECTRICAL 1
Parts List
Reference
Description
Price
1
69J8231600
Bracket, ignition coil
Loading…
↗
2
9048009M21
Grommet (6e9)
Loading…
↗
3
9011906041
Bolt, with washer
Loading…
↗
4
69J8231000
Ignition coil assembly
Loading…
↗
5
9709506020
Bolt(7u8)
Loading…
↗
6
9299506600
Washer, plain (646)
Loading…
↗
7
9046412002
Clamp
Loading…
↗
8
9046407M56
Clamp
Loading…
↗
9
69J8231400
Cover, ignition coil
Loading…
↗
10
9011006038
Bolt, hexagon socket head
Loading…
↗
11
6638231701
Damper, ignition coil
Loading…
↗
12
69J8196011
Rectifier & regulator assembly
Loading…
↗
13
69J81975A0
Plate, rectifier fitting
Loading…
↗
14
69J81972011S
Cover, rectifier
Loading…
↗
15
9011906MA3
Bolt, with washer
Loading…
↗
16
9011906MA5
Bolt, with washer
Loading…
↗
18
9299506100
Washer(6a1)
Loading…
↗
20
69J1248200
Pipe 2
Loading…
↗
21
69J1248100
Pipe 1
Loading…
↗
22
9046709M03
Clip(6k8)
Loading…
↗
23
9046708M18
Clip
Loading…
↗
24
69J8251900
Wire, earth lead
Loading…
↗
25
9709506012
Bolt(gh1)
Loading…
↗
27
61A8579000
Thermosensor assembly
Loading…
↗
28
9299010600
Washer, plate
Loading…
↗
29
69J8362600
Mark 6
Loading…
↗
30
67F1213860
Mark, Caution
Loading…
↗
