F225CET (2011)
ELECTRICAL 1

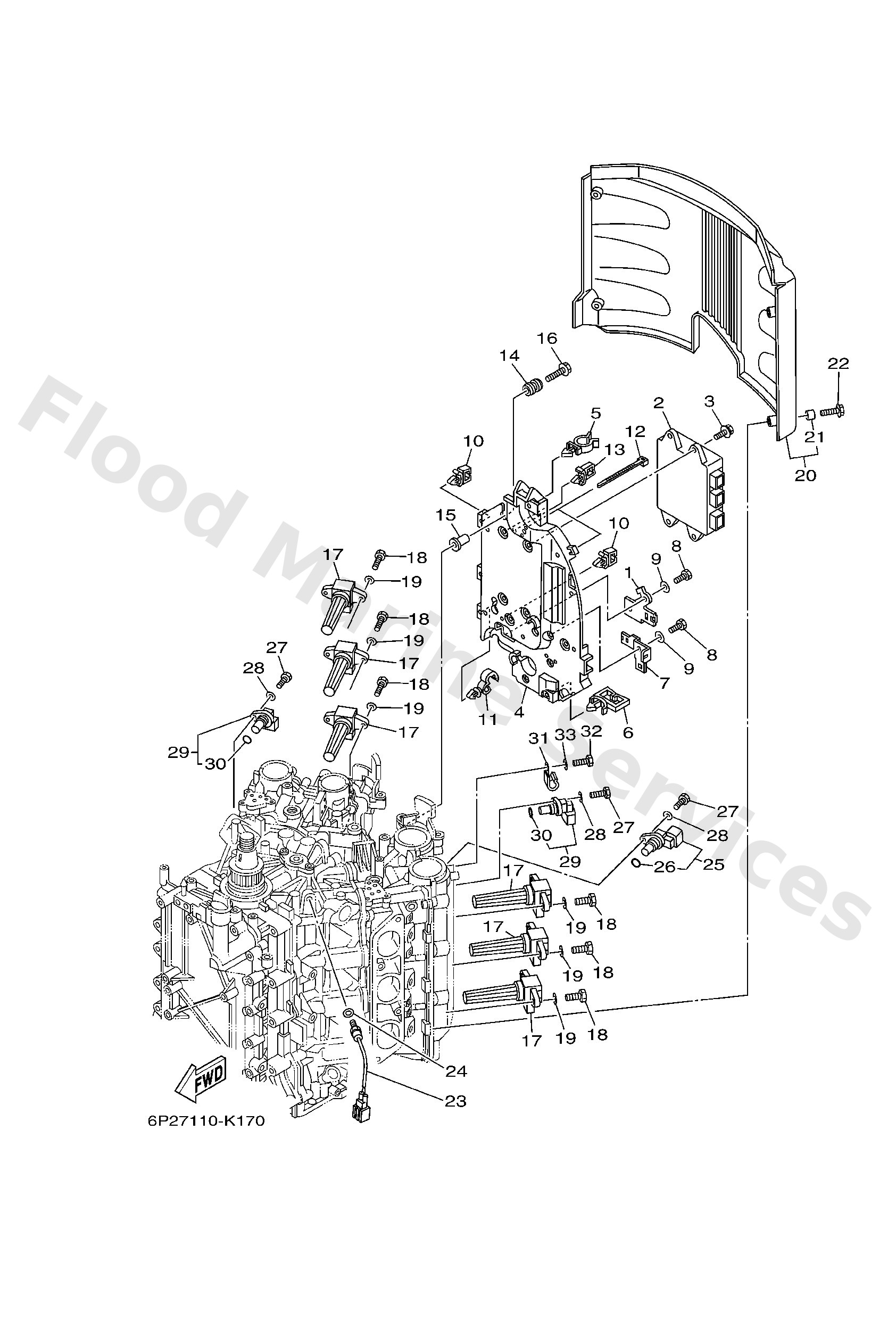

Diagram: ELECTRICAL 1
Parts List
Reference
Description
Price
1
6P28257V00
Plate, connector
Loading…
↗
2
6BB8591A00
Engine control unit assembly
Loading…
↗
3
9011906M82
Bolt, with washer
Loading…
↗
4
6P28231600
Bracket, ignition coil
Loading…
↗
5
9046419M45
Clamp(65j)
Loading…
↗
6
9046423199
Clamp(4hm)
Loading…
↗
7
6P28184500
Plate
Loading…
↗
8
9709506016
Bolt, hexagon deep recess
Loading…
↗
9
9299506600
Washer, plain (646)
Loading…
↗
10
9046411121
Clamp(4gy)
Loading…
↗
11
9046413249
Clamp
Loading…
↗
12
9046514M66
Clamp
Loading…
↗
13
9046408004
Clamp
Loading…
↗
14
6A08231700
Damper, ignition coil
Loading…
↗
15
9038706119
Collar
Loading…
↗
16
9011906M59
Bolt, with washer
Loading…
↗
17
6P28231001
Ignition coil assembly
Loading…
↗
18
9709506020
Bolt(7u8)
Loading…
↗
20
6P28231400
Cover, ignition coil
Loading…
↗
21
9038706044
Collar
Loading…
↗
22
9011906M92
Bolt, with washer
Loading…
↗
23
61A8579000
Thermosensor assembly
Loading…
↗
24
9299010600
Washer, plate
Loading…
↗
25
6P28589600
Sensor, cam position
Loading…
↗
26
6P28507500
O-ring
Loading…
↗
29
6P28589700
Sensor, cam position 2
Loading…
↗
31
9046208032
Clamp
Loading…
↗
32
9709506012
Bolt(gh1)
Loading…
↗
