F25GWH (2022)
ELECTRICAL 1

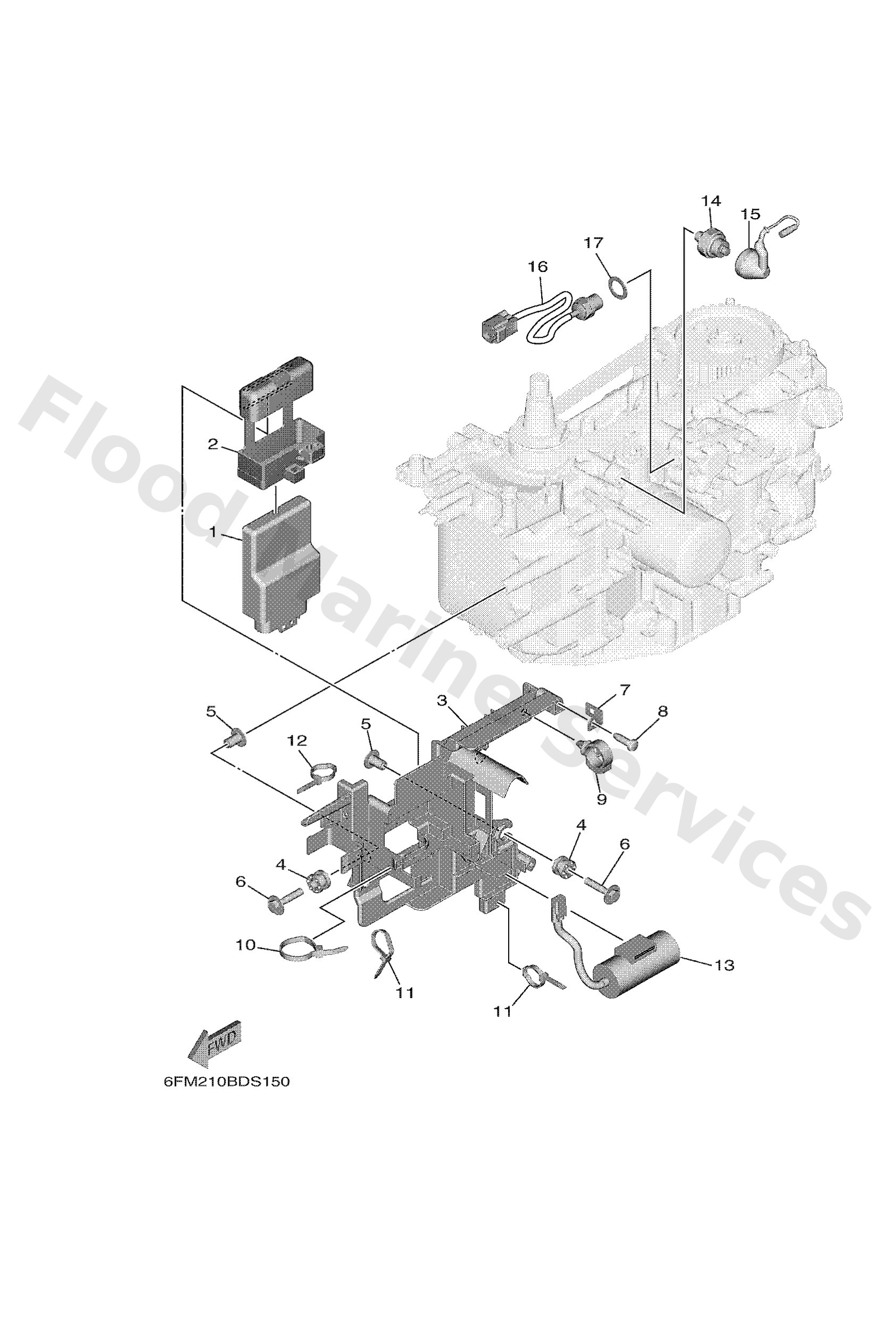

Diagram: ELECTRICAL 1
Parts List
Reference
Description
Price
1
6FM8591A40
Engine control unit assembly
Loading…
↗
2
6FM8554600
Band
Loading…
↗
3
6FM8194800
Bracket
Loading…
↗
4
64J8551601
Spacer
Loading…
↗
5
69M4275801
Collar
Loading…
↗
6
9011906293
Bolt, with washer
Loading…
↗
7
68V8554801
Holder
Loading…
↗
8
9778060620
Screw, tapping(6k8)
Loading…
↗
9
9046420181
Clamp(4ap)
Loading…
↗
10
9046513M18
Clamp
Loading…
↗
11
9046513M11
Clamp (6e5)
Loading…
↗
12
9046513M97
Clamp
Loading…
↗
13
6FM8196500
Condenser, smoothing
Loading…
↗
14
64J8250400
Oil pressure switch assembly
Loading…
↗
15
68V8131501
Lead wire assembly
Loading…
↗
16
6CJ8579000
Thermosensor assembly
Loading…
↗
17
9043014115
Gasket (663)
Loading…
↗
