F350NSA2 (2024)
ELECTRICAL 1

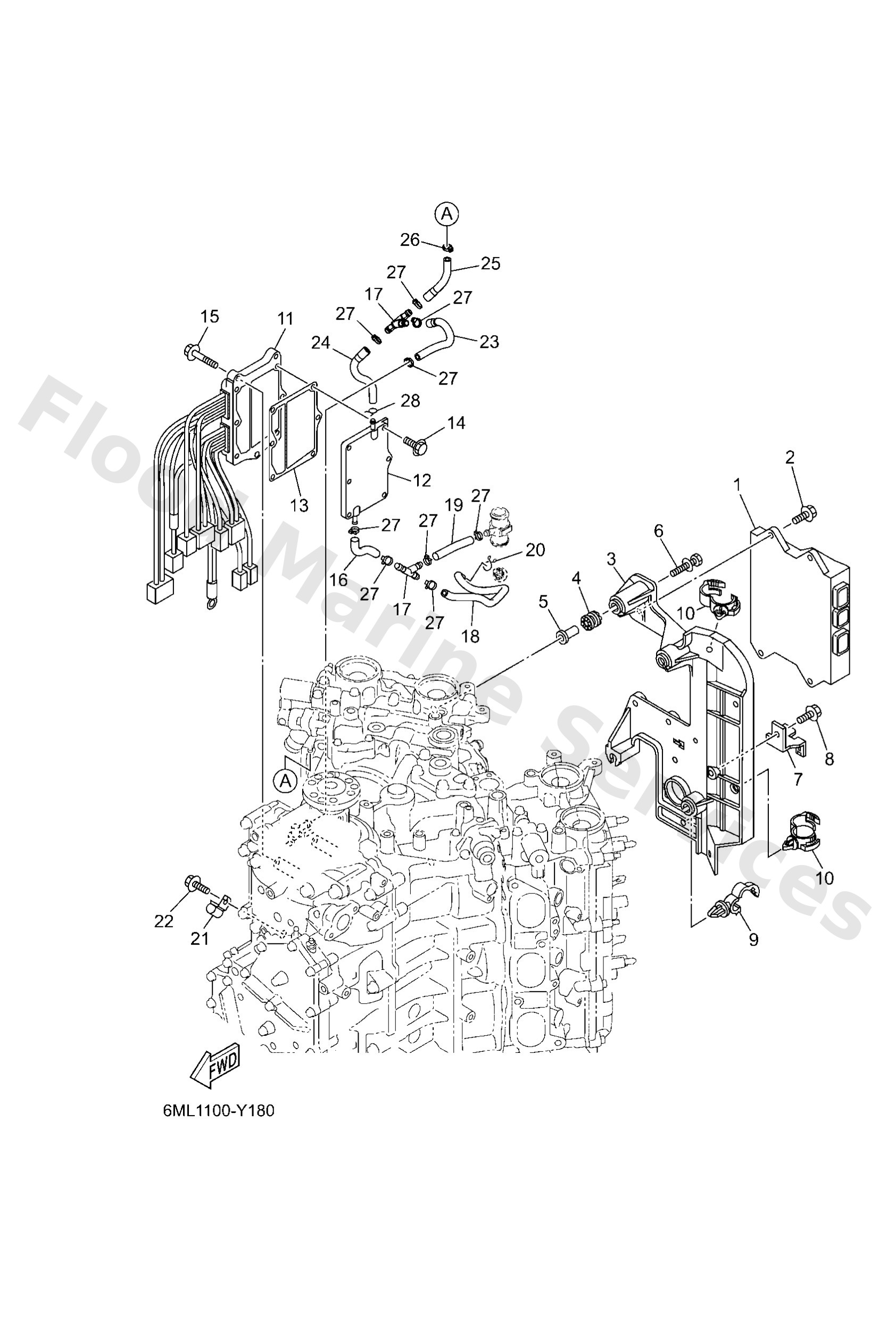

Diagram: ELECTRICAL 1
Parts List
Reference
Description
Price
1
6ML8591A00
Engine control unit assembly
Loading…
↗
2
95D9506020
Bolt, flange deep recess
Loading…
↗
3
6CB8231601
Bracket, ignition coil
Loading…
↗
4
64J8551601
Spacer
Loading…
↗
5
69M4275801
Collar
Loading…
↗
6
9011906293
Bolt, with washer
Loading…
↗
7
6BR8184500
Plate
Loading…
↗
8
95D9506012
Bolt, flange deep recess
Loading…
↗
9
9046413249
Clamp
Loading…
↗
10
9046420181
Clamp(4ap)
Loading…
↗
11
6CE8196010
Rectifier & regulator assembly
Loading…
↗
12
6CE81972009S
Cover, rectifier
Loading…
↗
13
6CE8197500
Plate, rectifier fitting
Loading…
↗
14
9011906MA3
Bolt, with washer
Loading…
↗
15
95D9506025
Bolt, flange deep recess
Loading…
↗
16
6CE1248A00
Pipe 8
Loading…
↗
17
6CE2437700
Pipe, joint 2
Loading…
↗
18
6CE1248300
Pipe 3
Loading…
↗
19
90445107A5
Hose (l30)
Loading…
↗
20
9046709M09
Clip(6k8)
Loading…
↗
21
9046206013
Clamp
Loading…
↗
22
9502306012
Bolt, flange(2uj)
Loading…
↗
23
6ML1487200
Pipe 2
Loading…
↗
24
6ML1248500
Pipe 5
Loading…
↗
25
6ML1248300
Pipe 3
Loading…
↗
26
9046511M10
Clamp
Loading…
↗
28
9046708M18
Clip
Loading…
↗
