F40BED (2008)
ELECTRICAL 1

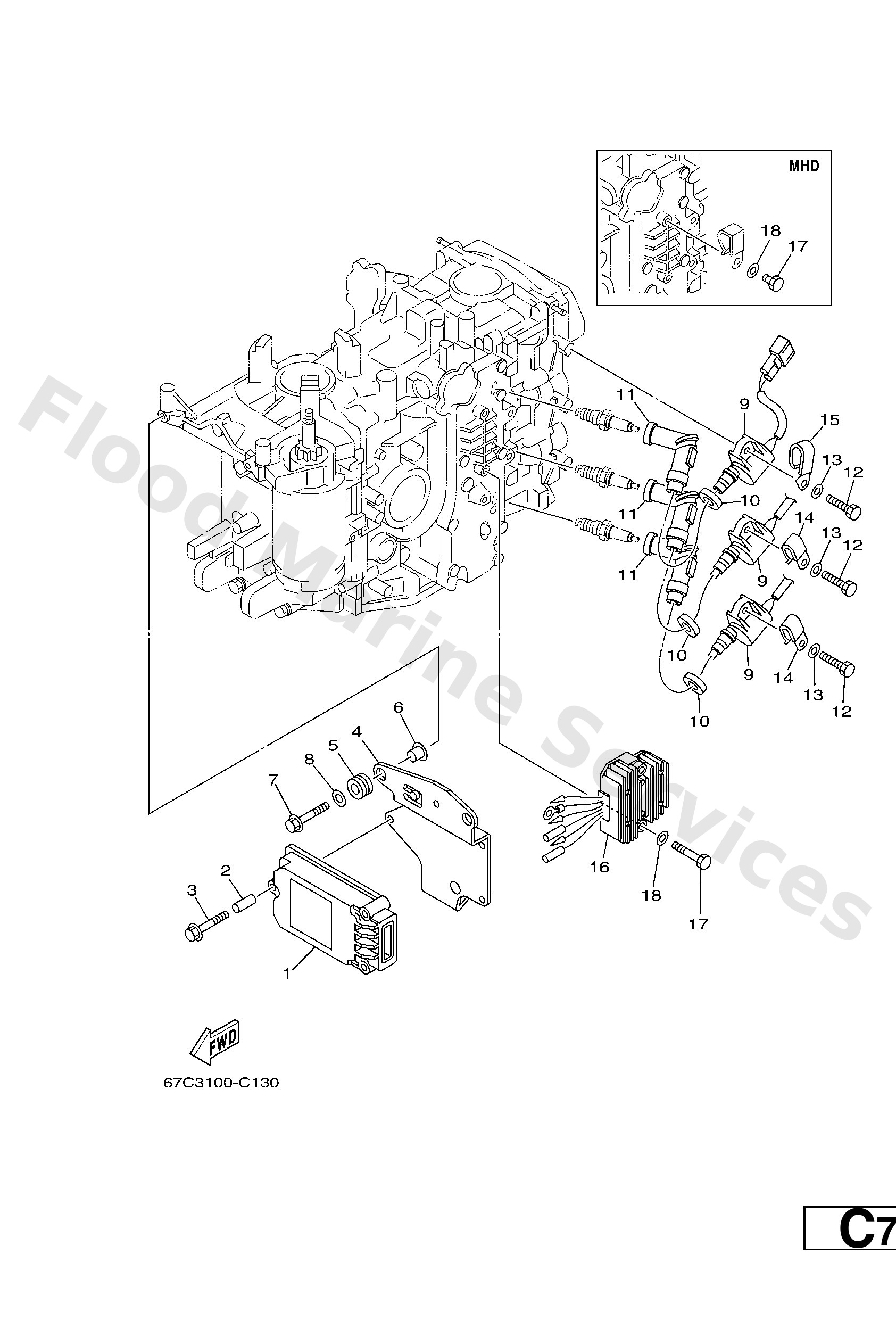

Diagram: ELECTRICAL 1
Parts List
Reference
Description
Price
1
67C8554001
C.d.i. unit assembly
Loading…
↗
2
65W8612900
Collar
Loading…
↗
3
65W8252V00
Screw, special
Loading…
↗
4
67C8554200
Bracket
Loading…
↗
5
65W8554700
Damper
Loading…
↗
6
65W8612910
Collar
Loading…
↗
7
67C8252V00
-
Loading…
↗
8
67C8555400
Washer, Rotor
Loading…
↗
9
67C8557000
Ignition coil assembly
Loading…
↗
10
9048025161
Grommet(656)
Loading…
↗
11
6G88237030
Plug cap assembly
Loading…
↗
12
9709506020
Bolt(7u8)
Loading…
↗
13
9299506600
Washer, plain (646)
Loading…
↗
14
9046506M90
Clamp
Loading…
↗
15
9046506M88
Clamp
Loading…
↗
16
65W8196010
Rectifier & regulator assembly
Loading…
↗
17
9709506040
Bolt (682)
Loading…
↗
17
9709506012
Bolt(gh1)
Loading…
↗
