F40FED (2025)
ELECTRICAL 1

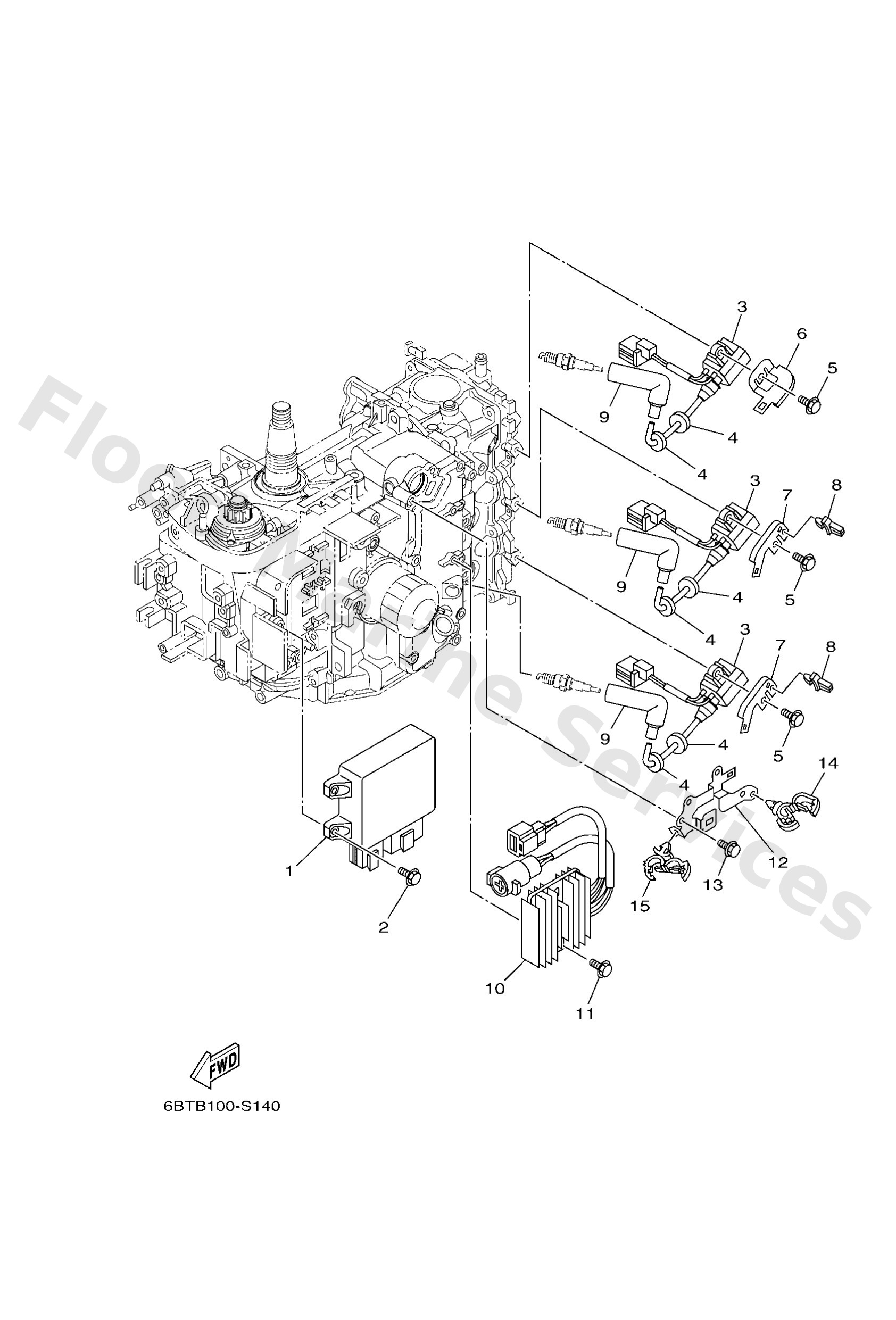

Diagram: ELECTRICAL 1
Parts List
Reference
Description
Price
1
6BG8591A22
F40F
Engine control unit assembly
Loading…
↗
1
6BT8591A12
F30B
Engine control unit assembly
Loading…
↗
2
97E9506525
Bolt, hexagon w/w deep recess
Loading…
↗
3
6BG8557000
Ignition coil assembly
Loading…
↗
4
9048025003
Grommet
Loading…
↗
6
6BG8239800
Plate 3
Loading…
↗
7
6BG8238900
Plate 2
Loading…
↗
8
9046406001
Clamp
Loading…
↗
9
6AH8237000
Plug cap assembly
Loading…
↗
10
6BG8196000
Rectifier & regulator assembly
Loading…
↗
12
6BG8152800
Clamp 1
Loading…
↗
13
97E9506516
Bolt, hexagon w/w deep recess
Loading…
↗
14
9046413249
Clamp
Loading…
↗
15
9046418246
Clamp(4tr)
Loading…
↗
