F40GET (2017)
ELECTRICAL 1

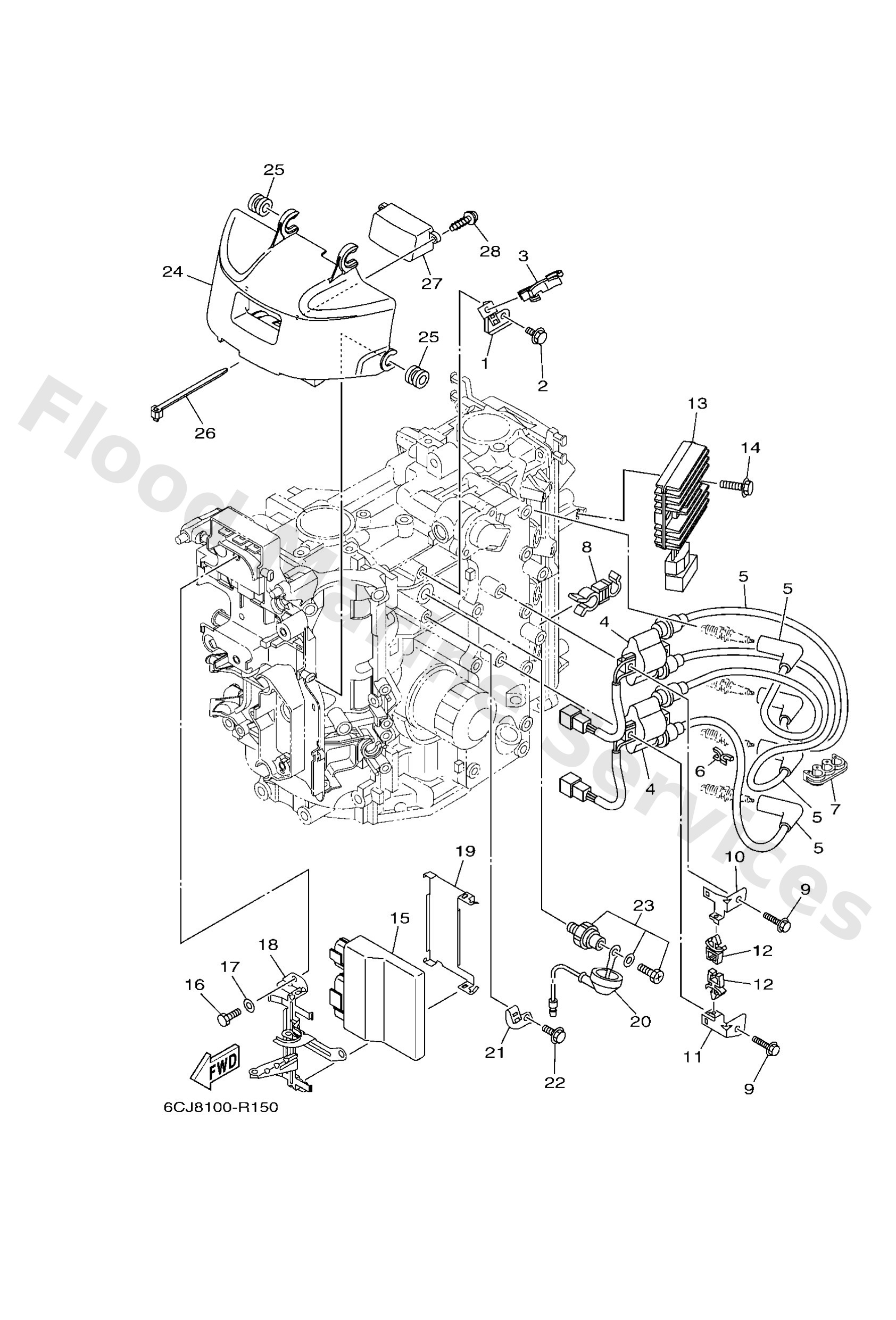

Diagram: ELECTRICAL 1
Parts List
Reference
Description
Price
1
6C58552500
Plate
Loading…
↗
2
9759506514
Bolt(gj3)
Loading…
↗
3
9046418246
Clamp(4tr)
Loading…
↗
4
63P8231001
Ignition coil assembly
Loading…
↗
5
6CJ8234000
High tension cord assembly 1
Loading…
↗
6
9046407M41
Clamp(62y)
Loading…
↗
7
9046407M05
Clamp (6g5)
Loading…
↗
8
9046413013
Clamp
Loading…
↗
9
9759506525
Bolt, hexagon w/w deep recess
Loading…
↗
10
6C58231601
Bracket, ignition coil
Loading…
↗
11
6C58231611
Bracket, ignition coil
Loading…
↗
12
9046406001
Clamp
Loading…
↗
13
68V8196010
Rectifier & regulator assembly
Loading…
↗
15
6CJ8591A12
Engine control unit assembly
Loading…
↗
16
9709506016
Bolt, hexagon deep recess
Loading…
↗
17
9299506600
Washer, plain (646)
Loading…
↗
18
6CJ8258800
Plate
Loading…
↗
19
6CJ8253B00
Plate, lock
Loading…
↗
20
68V8131500
Lead wire assembly
Loading…
↗
21
6C58238810
Plate
Loading…
↗
23
64J8250400
Oil pressure switch assembly
Loading…
↗
24
6CJ8194200
Cover
Loading…
↗
25
9048012314
Grommet(3aa)
Loading…
↗
26
9046513M24
Band, switch cord
Loading…
↗
27
6CJ8355900
Cover, meter
Loading…
↗
28
9016705009
Screw, tapping
Loading…
↗
