F50DET (2003)
ELECTRICAL 1

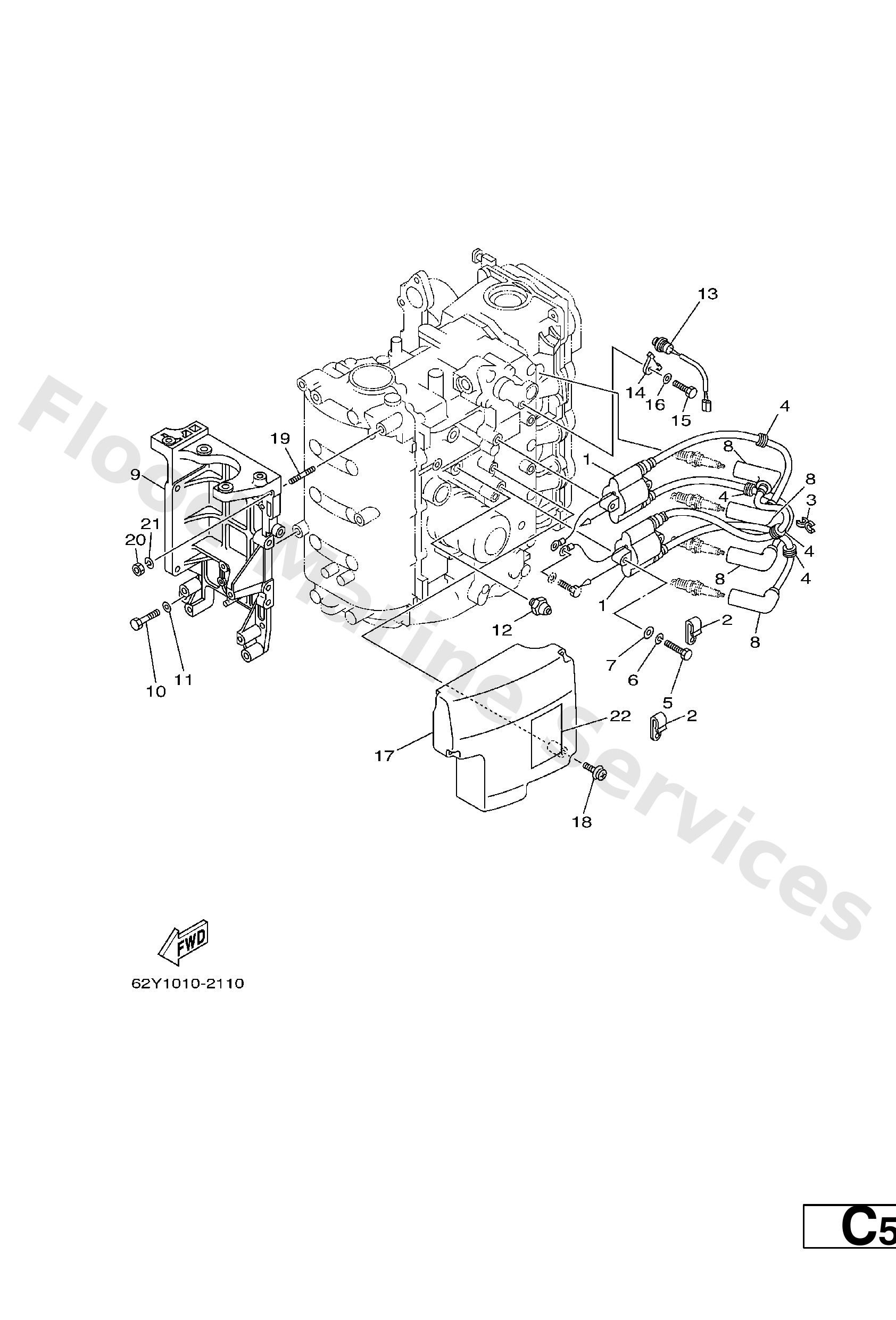

Diagram: ELECTRICAL 1
Parts List
Reference
Description
Price
1
62Y−85570−00
Ignition coil assembly
Loading…
↗
2
90465−06M90
Clamp
Loading…
↗
3
90464−07M41
Clamp(62y)
Loading…
↗
4
90480−25161
Grommet(656)
Loading…
↗
5
97095−06030
Bolt(jf7)
Loading…
↗
6
92995−06100
Washer(6a1)
Loading…
↗
7
92995−06600
Washer, plain (646)
Loading…
↗
8
6G8−82370−30
Plug cap assembly
Loading…
↗
9
62Y−81822−01−94
Bracket, starting motor
Loading…
↗
10
97095−08035
Bolt(70w)
Loading…
↗
11
92995−08600
Washer, plain (663)
Loading…
↗
12
64J−82504−00
Oil pressure switch assembly
Loading…
↗
13
62Y−82560−01
Thermo switch assembly
Loading…
↗
14
6E9−82588−00
Plate
Loading…
↗
15
97095−06012
Bolt(gh1)
Loading…
↗
17
62Y−85599−00
Cover
Loading…
↗
18
90159−06M08
Screw, with washer(6k7)
Loading…
↗
19
90116−08M14
Bolt, stud (6e5)
Loading…
↗
20
95380−08600
Nut (661)
Loading…
↗
21
92990−08100
Ybs67-8 washer, spring
Loading…
↗
22
62Y−83626−00
Mark. 6
Loading…
↗
