F50HET (2023)
ELECTRICAL 1

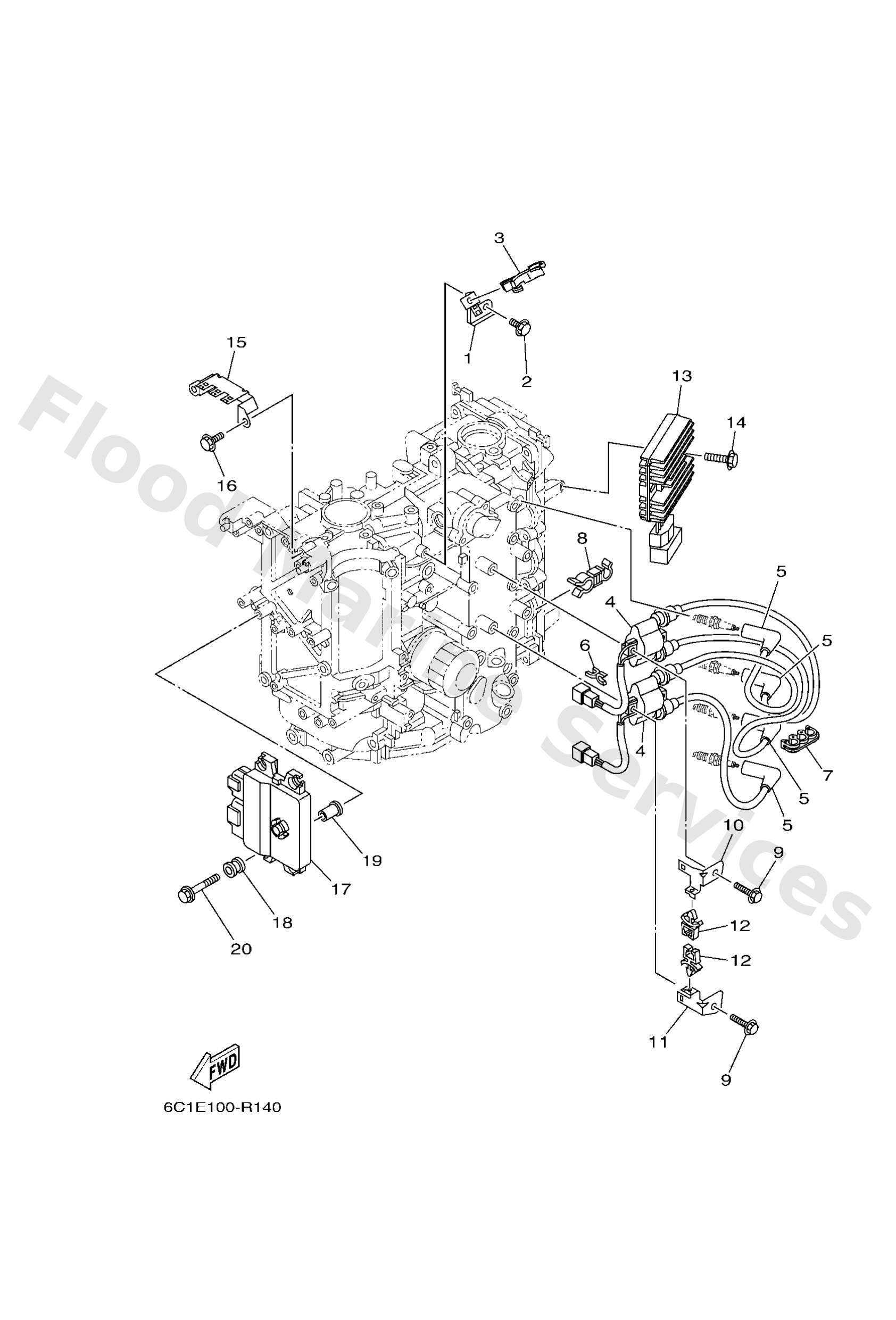

Diagram: ELECTRICAL 1
Parts List
Reference
Description
Price
1
6C58552500
Plate
Loading…
↗
2
97E9506514
Bolt, hexagon w/w deep recess
Loading…
↗
3
9046418246
Clamp(4tr)
Loading…
↗
4
63P8231001
Ignition coil assembly
Loading…
↗
5
6CJ8234000
High tension cord assembly 1
Loading…
↗
6
9046407M41
Clamp(62y)
Loading…
↗
7
9046407M05
Clamp (6g5)
Loading…
↗
8
9046413013
Clamp
Loading…
↗
9
97E9506525
Bolt, hexagon w/w deep recess
Loading…
↗
10
6C58231601
Bracket, ignition coil
Loading…
↗
11
6C58231611
Bracket, ignition coil
Loading…
↗
12
9046406001
Clamp
Loading…
↗
13
68V8196010
Rectifier & regulator assembly
Loading…
↗
15
6C58217100
Stay, fuse box
Loading…
↗
17
6C18591A25
F50H
Engine control unit assembly
Loading…
↗
17
6C58591A25
F60F
Engine control unit assembly
Loading…
↗
17
6AK8591A05
F40H
Engine control unit assembly
Loading…
↗
18
6C58231701
Damper, ignition coil
Loading…
↗
19
9038706119
Collar
Loading…
↗
20
9011906289
Bolt, with washer
Loading…
↗
