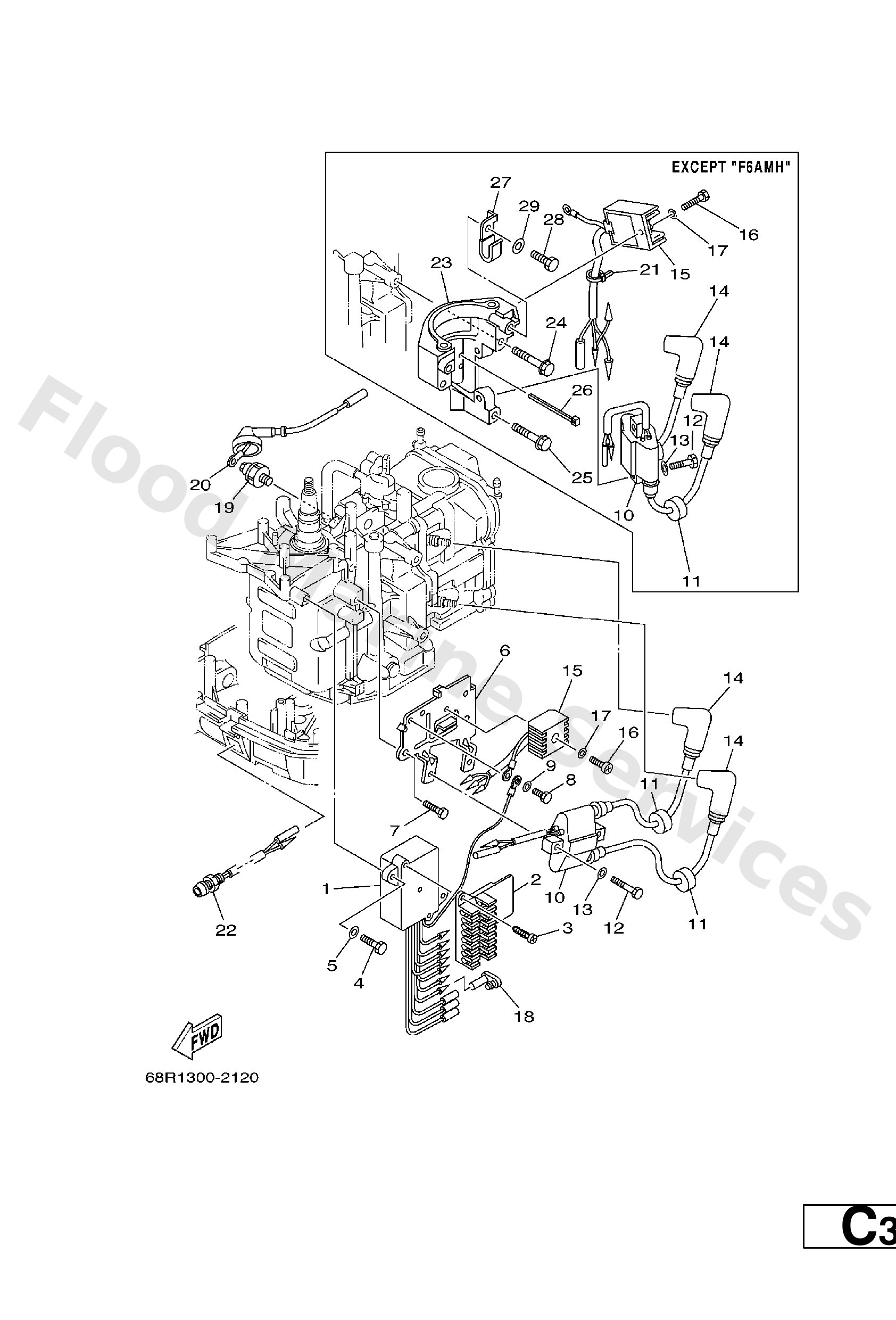

Diagram: ELECTRICAL 1

Diagram

Parts List

Reference
Description
Price


1
69F−85540−00 F6B
C.d.i. Unit assembly
Loading…

↗
1
68T−85540−00 F6A,F8C
C.d.i. unit assembly
Loading…

↗
2
68T−82522−00
Clamp, coupler
Loading…

↗
3
97780−40512
Screw, pan head tapping
Loading…

↗
4
97095−06020
Bolt(7u8)
Loading…

↗
5
92995−06600
Washer, plain (646)
Loading…

↗
6
68T−85542−00
Bracket
Loading…

↗
7
97095−08012
Bolt, hexagon deep recess
Loading…

↗
8
97095−06012
Bolt(gh1)
Loading…

↗
10
680−85570−00
Ignition coil assembly
Loading…

↗
11
90480−25161
Grommet(656)
Loading…

↗
12
97095−06025
Bolt
Loading…

↗
14
6E3−82370−21
Plug cap assembly
Loading…

↗
15
68T−81960−00
Rectifier & regulator assembly
Loading…

↗
15
664−81970−61
Rectifier assembly
Loading…

↗
16
97880−05025
Screw, panhead (a93)
Loading…

↗
17
92990−05600
Washer, plain (646)
Loading…

↗
18
6A0−82119−00
Cover, lead wire
Loading…

↗
19
67F−82504−00
Oil pressure switch assembly
Loading…

↗
20
68T−82127−10
Wire, lead 2
Loading…

↗
21
90465−11M10
Clamp
Loading…

↗
22
68T−85410−00
Emergency signal light assembly
Loading…

↗
23
68T−81822−00−94
Bracket, starting motor
Loading…

↗
24
90119−08046
Bolt, with washer
Loading…

↗
25
90119−08020
Bolt, with washer
Loading…

↗
27
90465−08M99
Clamp
Loading…

↗
