F70BET (2025)
ELECTRICAL 1

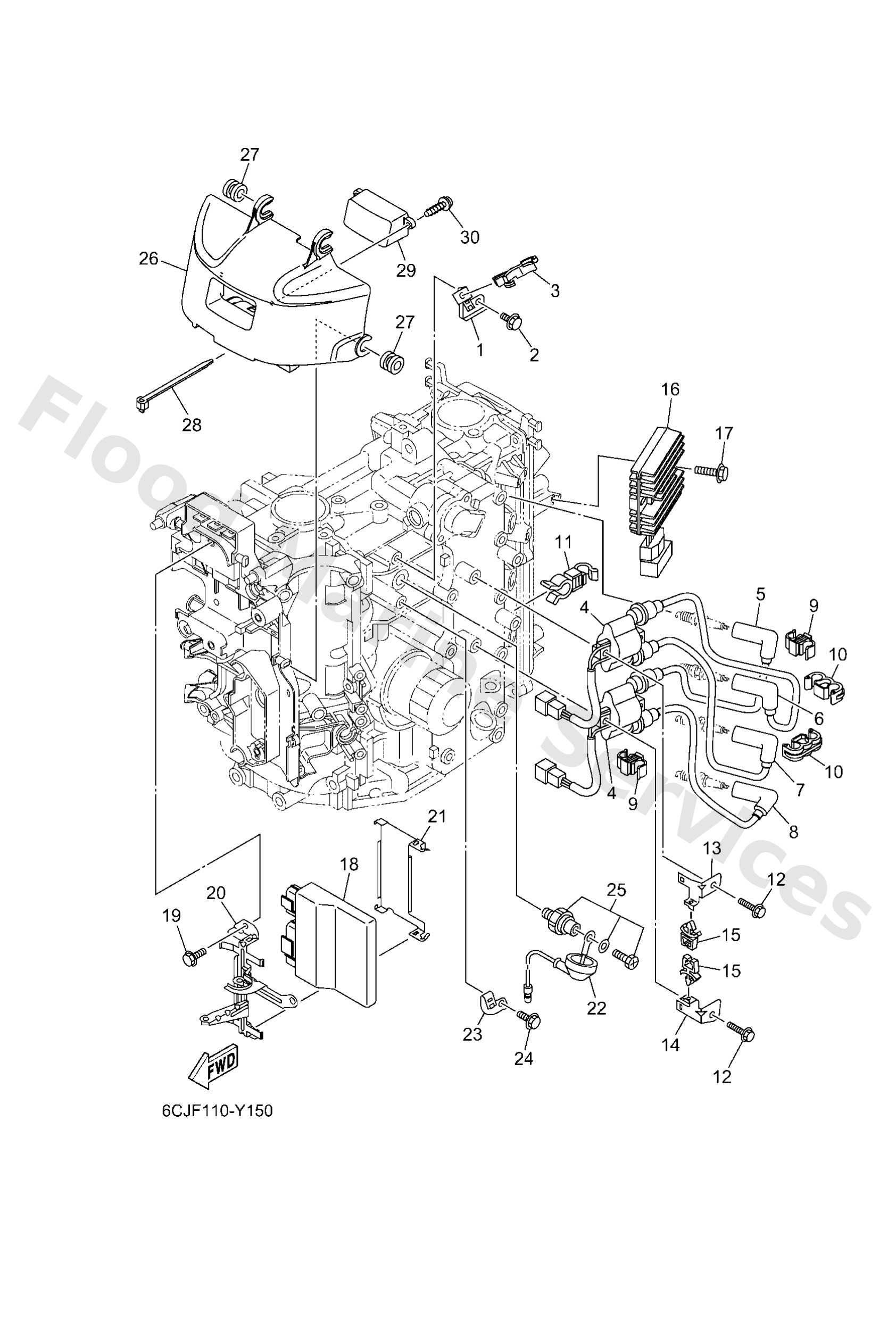

Diagram: ELECTRICAL 1
Parts List
Reference
Description
Price
1
6C58552500
Plate
Loading…
↗
2
97E9506514
Bolt, hexagon w/w deep recess
Loading…
↗
3
9046418246
Clamp(4tr)
Loading…
↗
4
63P8231001
Ignition coil assembly
Loading…
↗
5
6CJ8234010
High tension cord assembly 1
Loading…
↗
6
6CJ8234020
High tension cord assembly 2
Loading…
↗
7
6CJ8234030
High tension cord assembly 3
Loading…
↗
8
6CJ8234040
High tension cord assembly 4
Loading…
↗
9
9046407019
Clamp
Loading…
↗
10
9046407020
Clamp
Loading…
↗
11
9046413013
Clamp
Loading…
↗
12
97E9506525
Bolt, hexagon w/w deep recess
Loading…
↗
13
6C58231601
Bracket, ignition coil
Loading…
↗
14
6C58231611
Bracket, ignition coil
Loading…
↗
15
9046406001
Clamp
Loading…
↗
16
68V8196010
Rectifier & regulator assembly
Loading…
↗
18
6CJ8591A20
Engine Control Unit assembly
Loading…
↗
19
97E9506516
Bolt, hexagon w/w deep recess
Loading…
↗
20
6CJ8258800
Plate
Loading…
↗
21
6CJ8253B00
Plate, lock
Loading…
↗
22
68V8131501
Lead wire assembly
Loading…
↗
23
6C58238810
Plate
Loading…
↗
25
64J8250400
Oil pressure switch assembly
Loading…
↗
26
6CJ8194200
Cover
Loading…
↗
27
9048012314
Grommet(3aa)
Loading…
↗
28
9046513M24
Band, switch cord
Loading…
↗
29
6CJ8355900
Cover, meter
Loading…
↗
30
9016705009
Screw, tapping
Loading…
↗
