F9.9FE (2008)
ELECTRICAL 1

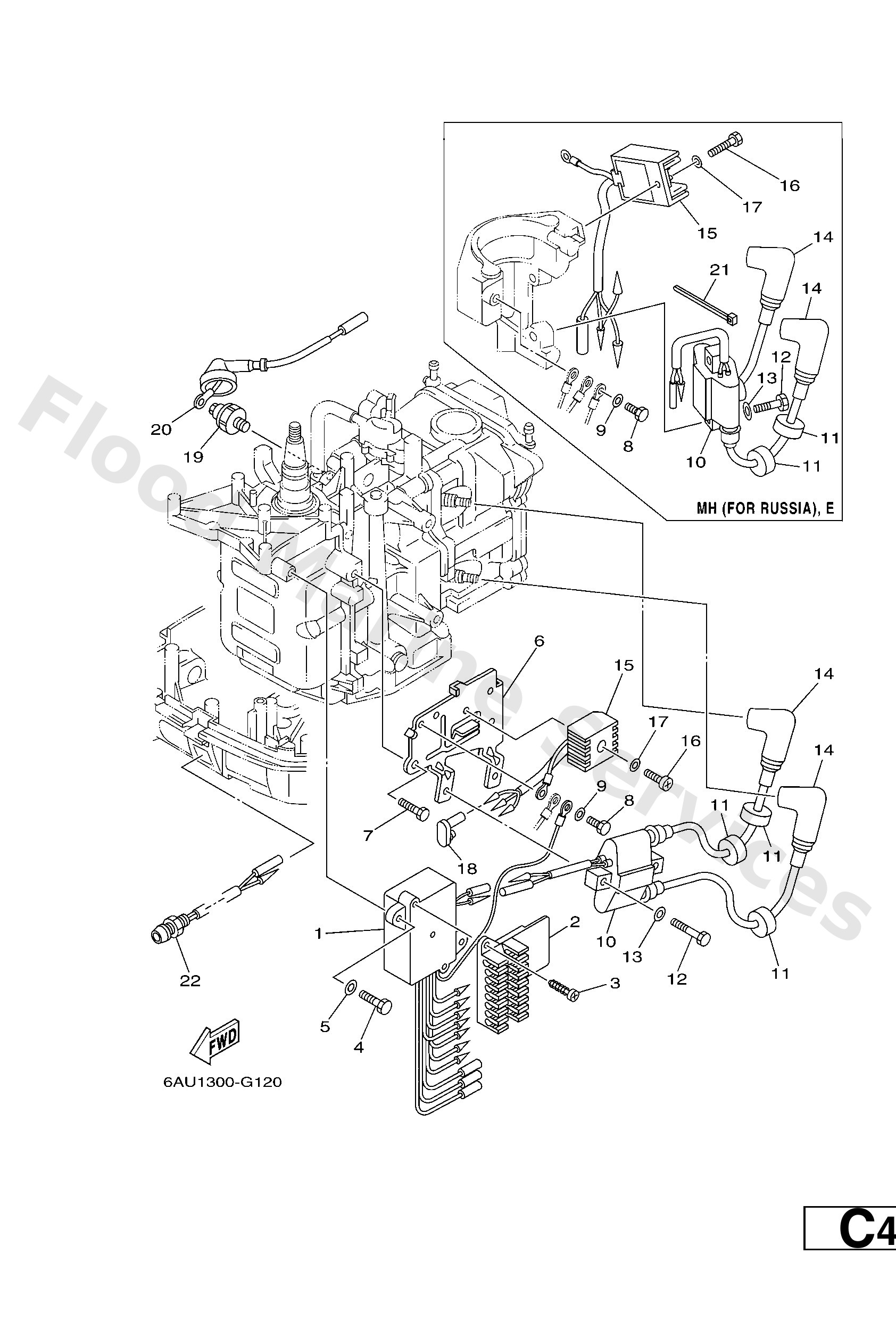

Diagram: ELECTRICAL 1
Parts List
Reference
Description
Price
1
68T8554000
C.d.i. unit assembly
Loading…
↗
2
68T8252200
Clamp, coupler
Loading…
↗
3
9778040512
Screw, pan head tapping
Loading…
↗
4
9709506020
Bolt(7u8)
Loading…
↗
17
9299506600
MH-FOR RUS
Washer, plain (646)
Loading…
↗
6
68T8554200
EXCEPT FOR RUS
Bracket
Loading…
↗
7
9709508012
EXCEPT FOR RUS
Bolt, hexagon deep recess
Loading…
↗
16
9709506012
MH-FOR RUS
Bolt(gh1)
Loading…
↗
10
6808557001
Ignition coil assembly
Loading…
↗
11
9048025003
Grommet
Loading…
↗
12
9709506025
Bolt
Loading…
↗
14
6E38237021
Plug cap assembly
Loading…
↗
15
6648197061
EXCEPT FOR RUS
Rectifier assembly
Loading…
↗
15
68T8196000
MH-FOR RUS
Rectifier & regulator assembly
Loading…
↗
16
9788005025
EXCEPT FOR RUS
Screw, panhead (a93)
Loading…
↗
17
9299005600
EXCEPT FOR RUS
Washer, plain (646)
Loading…
↗
18
6A08211900
EXCEPT FOR RUS
Cover, lead wire
Loading…
↗
19
67F8250400
Oil pressure switch assembly
Loading…
↗
20
68T8212710
Wire, lead 2
Loading…
↗
21
9046511M10
MH-FOR RUS
Clamp
Loading…
↗
22
68T8541000
Emergency signal light assembly
Loading…
↗
