F9.9HE (2014)
ELECTRICAL 1

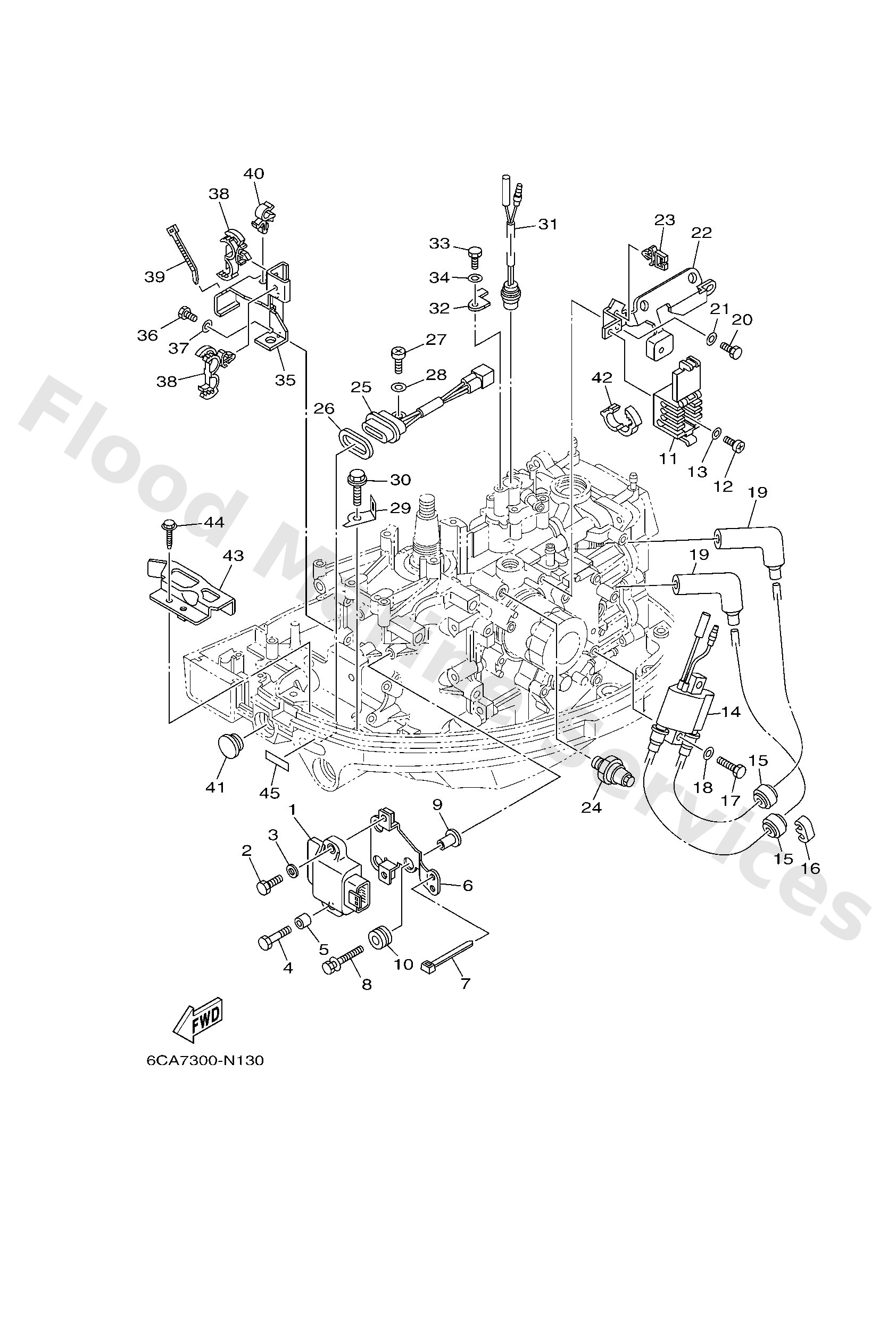

Diagram: ELECTRICAL 1
Parts List
Reference
Description
Price
1
6AH8554000
C.d.i. unit assembly
Loading…
↗
2
9709506020
Bolt(7u8)
Loading…
↗
3
9299506600
Washer, plain (646)
Loading…
↗
4
9709506030
Bolt(jf7)
Loading…
↗
5
9038706M74
Collar
Loading…
↗
6
6AH8194800
Bracket
Loading…
↗
7
9046513M18
Clamp
Loading…
↗
8
9011906M35
Bolt, with washer
Loading…
↗
9
9038706289
Collar
Loading…
↗
10
9048010M23
Grommet(6k7)
Loading…
↗
11
6AH8252200
Clamp, coupler
Loading…
↗
12
9788006010
Screw pan head
Loading…
↗
13
9020106M05
Washer, plate(6e3)
Loading…
↗
14
6F58557013
Ignition coil assembly
Loading…
↗
15
9048025003
Grommet
Loading…
↗
16
67F8236100
Clamp, cord
Loading…
↗
17
9709506025
Bolt
Loading…
↗
19
6AH8237000
Plug cap assembly
Loading…
↗
20
9709506014
Bolt(gj3)
Loading…
↗
22
6AH8554200
Bracket
Loading…
↗
23
9046407M56
Clamp
Loading…
↗
24
64J8250400
Oil pressure switch assembly
Loading…
↗
25
62Y8430100
Pilot light assembly 1
Loading…
↗
26
6H48358900
Gasket
Loading…
↗
27
9788506012
Screw, pan head(62j)
Loading…
↗
29
6AH8238800
Plate
Loading…
↗
30
9010906M86
Bolt
Loading…
↗
31
6AH8256000
Thermo switch assembly
Loading…
↗
32
6AH8258800
Plate
Loading…
↗
35
6AH8255400
Stay, neutral switch
Loading…
↗
36
9709506016
Bolt, hexagon deep recess
Loading…
↗
38
9046418246
Clamp(4tr)
Loading…
↗
40
9046410M32
Clamp(6m7)
Loading…
↗
41
6G14272500
Grommet
Loading…
↗
42
9046416003
Clamp
Loading…
↗
42
9046416001
Clamp
Loading…
↗
43
6AH8238900
Plate 2
Loading…
↗
45
67C8541500
Mark, signal lamp
Loading…
↗
