F9.9JE (2025)
ELECTRICAL 1

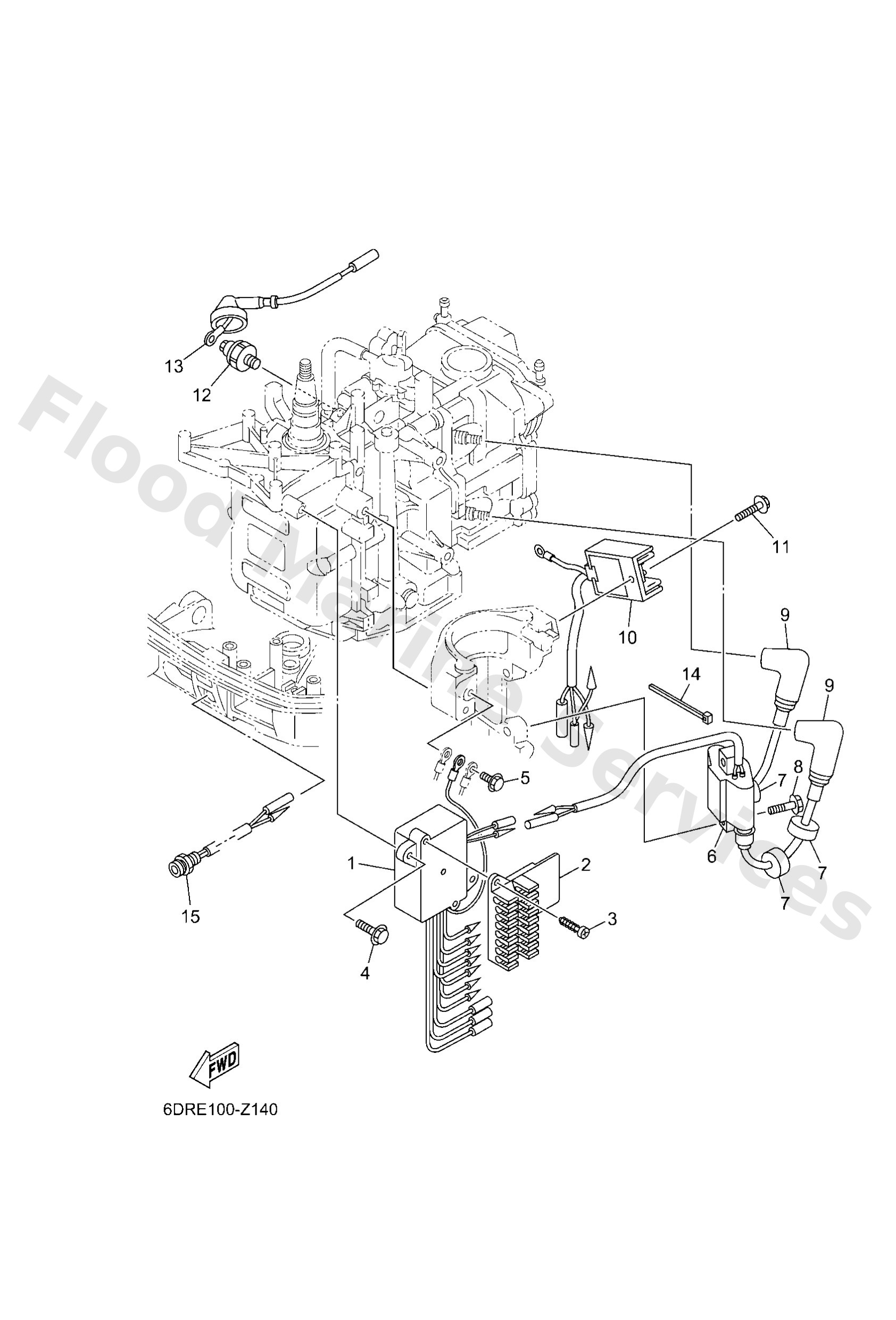

Diagram: ELECTRICAL 1
Parts List
Reference
Description
Price
1
68T8554000
C.d.i. unit assembly
Loading…
↗
2
68T8252200
Clamp, coupler
Loading…
↗
3
9778040512
Screw, pan head tapping
Loading…
↗
4
97E9506520
Bolt, hexagon w/w deep recess
Loading…
↗
11
97E9506512
MH-FOR RUS
Bolt, hexagon w/w deep recess
Loading…
↗
6
6808557002
Ignition coil assembly
Loading…
↗
7
9048025003
Grommet
Loading…
↗
8
9011906MA3
Bolt, with washer
Loading…
↗
9
6E38237021
Plug cap assembly
Loading…
↗
10
68T8196000
MH-FOR RUS
Rectifier & regulator assembly
Loading…
↗
12
67F8250400
Oil pressure switch assembly
Loading…
↗
13
68T8212711
Wire, lead 2
Loading…
↗
14
9046511M10
Clamp
Loading…
↗
15
68T8541010
Emergency signal light assembly
Loading…
↗
