Yamaha Outboard Parts - ELECTRICAL 1 - FL115AET (2003) | Flood Marine

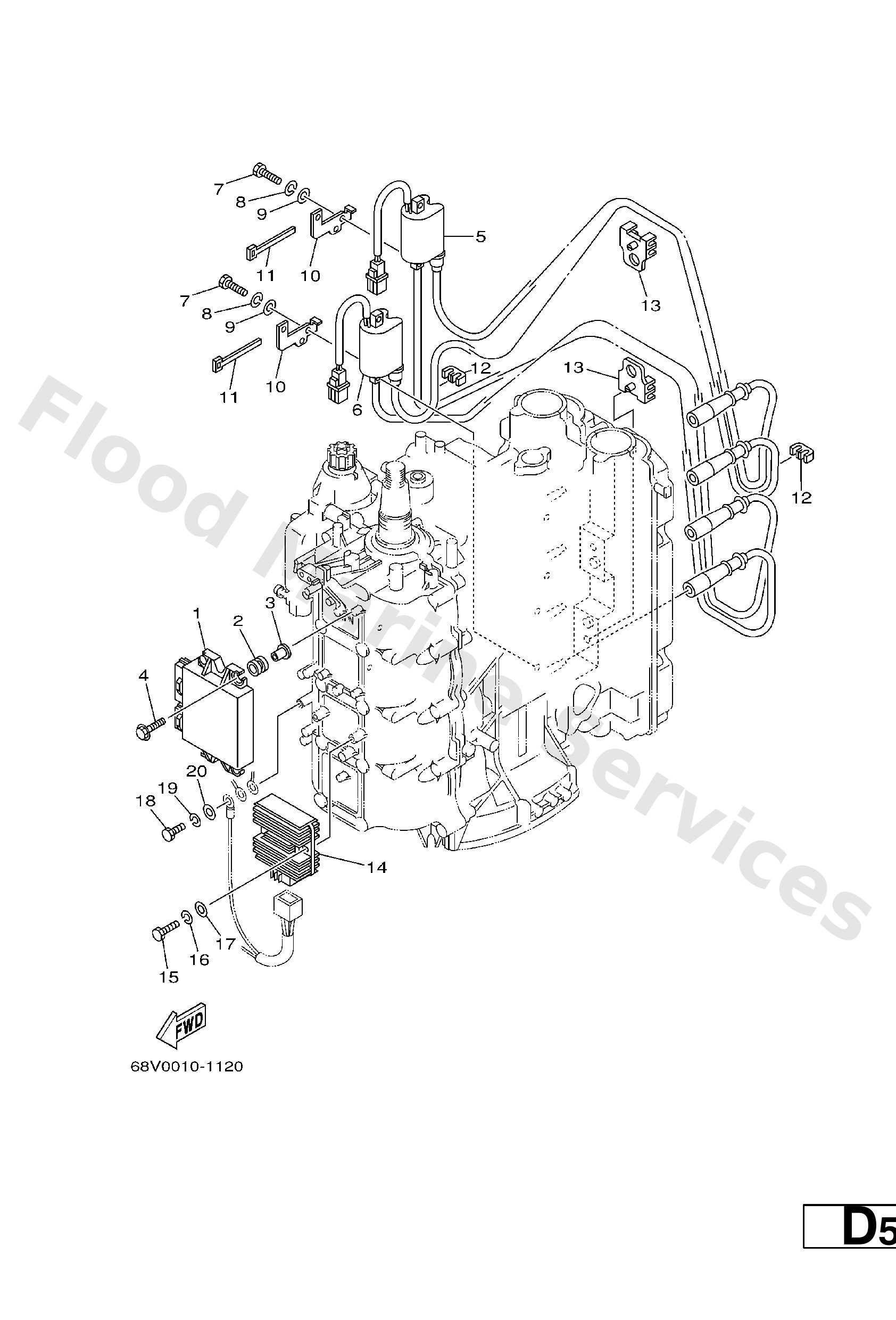

Diagram: ELECTRICAL 1

Diagram

Parts List

Reference
Description
Price


1
68V−8591A−11
Engine control unit assembly
Loading…

↗
2
68V−82317−00
Damper, ignition coil
Loading…

↗
3
624−42542−00
Collar
Loading…

↗
4
90119−06M59
Bolt, with washer
Loading…

↗
5
68V−82310−00
Ignition coil assembly
Loading…

↗
6
68V−82310−10
Ignition coil assembly
Loading…

↗
7
97095−06025
Bolt
Loading…

↗
8
92995−06100
Washer(6a1)
Loading…

↗
9
92995−06600
Washer, plain (646)
Loading…

↗
10
68V−82388−00
Plate
Loading…

↗
11
90464−06001
Clamp
Loading…

↗
12
67F−82361−00
Clamp, cord
Loading…

↗
13
67F−82362−00
Clamp, cord 2
Loading…

↗
14
68V−81960−00
Rectifier & regulator assembly
Loading…

↗
18
97095−06020
Bolt(7u8)
Loading…

↗
